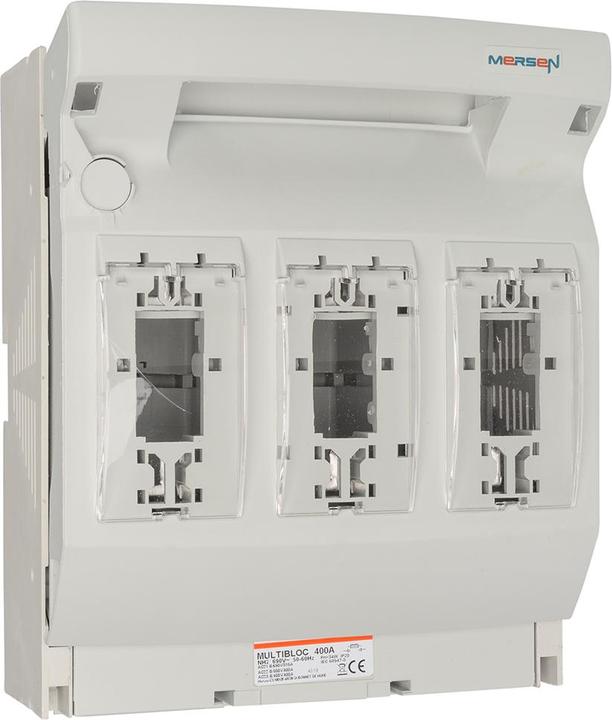

Mersen 1.002.563 Fuse switch disconnector NH size 2 400A 3-p.

Mersen Load Break Switch 1.002.563

Manufacturer: Mersen
Designation: Load Break Switch NH Size 2 400A 3-pole
Type: 1.002.563
Design as Main Switch: no
Design as Safety Switch: no
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Continuous Current Iu: 400 A
Conditional Rated Short-Circuit Current Iq: 80 kA
Suitable for Fuse Inserts: NH2
Number of Poles: 3
With Fuse Monitoring: no
Connection Type Main Circuit: Rail Connection
Cable Entry: Other
Equipped with Connectors: no
Suitable for Floor Mounting: yes
Suitable for Front Mounting: no
Suitable for Busbar Assembly: no
Design of Actuating Element: Cover Handle
Position of Actuating Element: Front
Motor Drive Optional: no
Motor Drive Integrated: no
Design as Emergency Stop Device: no
Protection Class (IP), Front Side: IP20

Mersen Load Break Switch 1.002.563: Additional Details
The MULTIBLOC 2.ST8 product range includes NH fuse load break switches for 400 A. The products are available in different designs and in 3- and 4-pole versions. MULTIBLOC NH fuse load break switches of various sizes can be aligned with suitable covers, allowing for a common, flat central cover. MULTIBLOC Size 2 is designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, Size 2, 400A. The system is a modular system, where different products can be optimally combined. MULTIBLOC provides users with quick and easy installation options as well as high safety during installation and maintenance. This NH fuse load break switch is equipped with 6 connection screws M10 and comes with mounted electronic fuse monitoring.
