MeanWell Power Supply Switch Mode 48V 76.8W

Output voltage: 48 V dc
Output current: 1.6 A
Rated power: 76.8 W
Input voltage: 120 to 370 V dc, 85 to 264 V ac
Mounting type: Chassis mount
Enclosure type: Closed
Length: 159 mm
Width: 97 mm
Depth: 30 mm
Ripple and noise voltage: 200 mV ss
Load regulation: ±0.5 %
Line regulation: ±0.5 %
Minimum temperature: -25 °C
Maximum temperature: +70 °C
Operating time: 296.7 kh

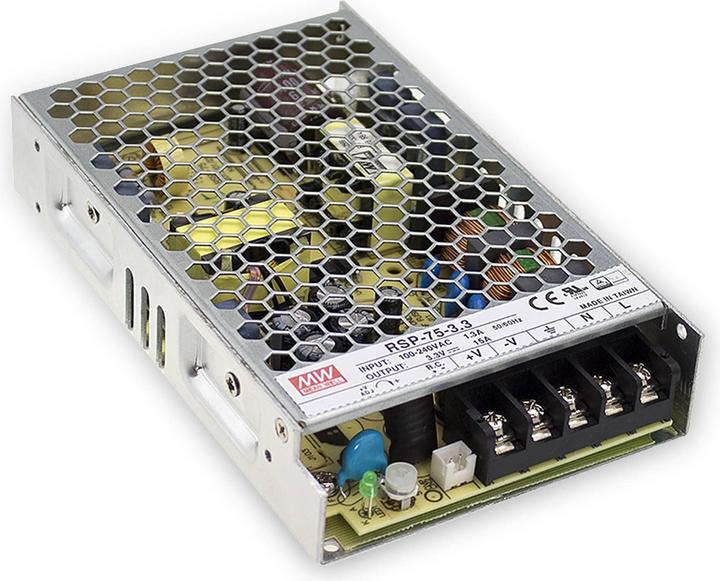

UL60950-1, UL62368-1 / TÜV EN60950-1, EN61558-1, EN61558-2-16 / CCC GB4943 / CB IEC60950-1, IEC62368-1. UL / CUL / TUV / CCC / CB / CE. Mean Well, Series RSP-75, 75 W, encapsulated switch-mode power supplies. The Mean Well RSP-75 is a series of encapsulated 75 W AC/DC switch-mode power supplies with a low profile and single output. The RSP-75 features a modern high-performance circuit topology and power factor correction, achieving an efficiency of up to 89%. This enclosed power supply can operate from -30 °C to +40 °C with cooling by free air convection, or at +50 °C ambient temperature under full load, and up to +70 °C with appropriate power derating. The RSP-75 provides an on/off control as well as protection against short circuit, overload, overvoltage, and overtemperature. This AC/DC power supply meets global requirements for UL, CUL, TÜV, CCC, CB, and CE regulations, and also holds the TÜV EN61558-2-16 certification, fulfilling the requirements for electrical appliances. Applications include industrial automation systems, mechanical and electrical equipment, household appliances, measuring devices, or other systems requiring flat 1U installations. Flat design with a height of 30 mm, suitable for 1U mounting. Universal AC input range: 85 to 264 V. Integrated active power factor correction. High efficiency up to 89%. Fanless design, cooling by free air convection. Operating temperature range: -25 to +70 °C. Protection: Short circuit, overload, overvoltage. Integrated constant current limiting. Remote on/off control. LED indicator for operational status.
