Product details

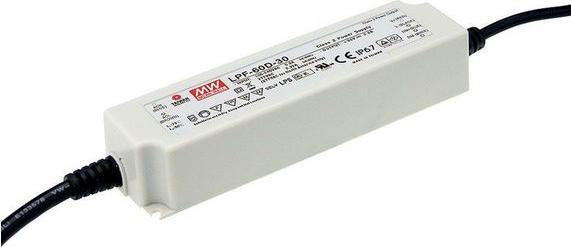

LED driver, Type=LPF-60D-54, Output voltage DC max.=54 V, Output voltage DC min.=32.4 V, Output current=1.12 A, Outputs=1, Operating temperature, max.=80 °C, Operating temperature, min.=-40 °C, Width=43 mm, Height=32 mm, Length=162.5 mm, MTBF (Mean Time Between Failures)=3614100 h, Rated power=60 W, Supply voltage AC max.=305 V, Supply voltage AC min.=90 V, Supply voltage DC max.=431 V, Supply voltage DC min.=127 V, Ripple & noise (V)=-999, Connection type=Cable routing, Dimmable=Yes, Protection class=IP67, Series=LPF.
Lighting accessories type | Lighting driver |
Application range | Indoor |
Smart Home | Not compatible |
Item number | 52640435 |
Manufacturer | MeanWell |
Category | Lighting accessories |
Manufacturer no. | LPF-60D-54 |
Release date | 5.11.2024 |
Application range | Indoor |
Lighting accessories type | Lighting driver |
Smart Home | Not compatible |
Power supply | Electrical connection |
CO₂-Emission | |
Climate contribution |
Length | 24.50 cm |
Width | 6.80 cm |
Height | 4.20 cm |
