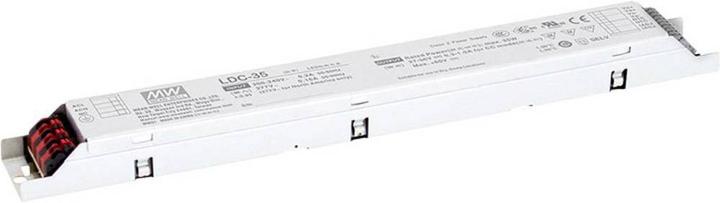

MeanWell LDC-35B - LED transformer, 35 W, 27-56 V DC, 1000 mA, dimmable

The Mean Well LDC-35B is a powerful LED driver designed for a variety of lighting applications. With an output power of 35 W and an adjustable output current ranging from 300 to 1000 mA, this device offers a flexible solution for powering LED lights. The driver supports a wide input voltage range of 180 to 295 V AC and allows for an output voltage of 27 to 56 V DC. Thanks to its 3-in-1 dimming function, which includes 0-10 V DC, 10 V PWM, and potentiometer options, users can precisely control the brightness of the connected LEDs. The aluminum housing ensures a robust construction and effective heat dissipation, while the built-in PFC circuit optimizes energy efficiency. The LDC-35B is also equipped with various protection mechanisms, including overload protection, short circuit protection, and overvoltage protection, making it a safe choice for indoor use.

• 3-in-1 dimming function (0-10 V DC, 10 V PWM, potentiometer)
• Constant power supply in CP mode
• Flicker-free design for even light distribution
• Protection mechanisms against short circuits, overload, and overvoltage
• Built-in PFC circuit to enhance energy efficiency.
