MDT Switching actuator
Switch actuator8 pieces in stock at supplier
Number of switching outputs3
Product details

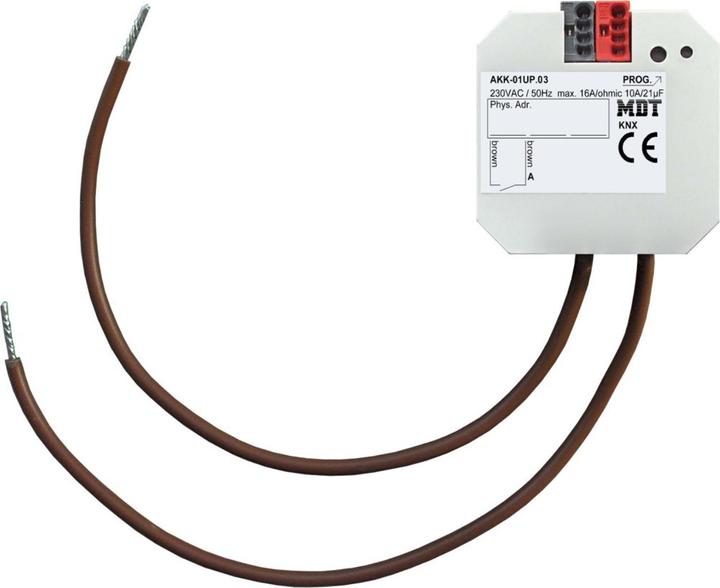

MDT Technologies Switch Actuator 1-channel Flush Mount AKK-01UP.03
Manufacturer: MDT Technologies
Description: 1-channel flush mount switch actuator
Rated current: 16 A
Rated operating voltage: 230 V
Max. switching power: 2000 W
Number of switching outputs: 1
Mounting type: Flush mount
With LED display: Yes
Protection class (IP): IP20
Min. installation depth of the device box: 49 mm
This switch actuator is designed for installation in a switch box and features a bistable relay with a maximum current of 16 A for resistive loads. It supports operation in normally open and normally closed modes, time functions (on/off delay), extensive stair lighting, and impulse functions. The device includes feedback functions for all channels, logical links, and advanced scene functions per channel. Central functions and blocking objects for forced operation are also available, as well as adjustable behavior during bus voltage interruption/restoration.
Dimensions (W x H x D): 41 mm x 41 mm x 22 mm.
Actuator type | Switch actuator |
Operating voltage | 230 V |
Mounting type | Flush-mounted |
Smart Home Protocol | KNX |
Items per sales unit | 1x |
Item number | 20220163 |
Manufacturer | MDT |
Category | Actuator |
Manufacturer no. | AKK-01UP.03 |
Release date | 23.3.2022 |
Actuator type | Switch actuator |
Max. Switching capacity | 2000 W |
rated current | 16 A |
Operating voltage | 230 V |
Number of switching outputs | 1x |
Mounting type | Flush-mounted |
Protection type (IP code) | IP20 |
Smart home | Not compatible |
Smart Home Protocol | KNX |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 1.99 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1x |
Length | 22 mm |
Width | 41 mm |
Height | 41 mm |
Length | 5 cm |
Width | 5 cm |
Height | 3 cm |
Weight | 30 g |
