MDT Pushbutton interface

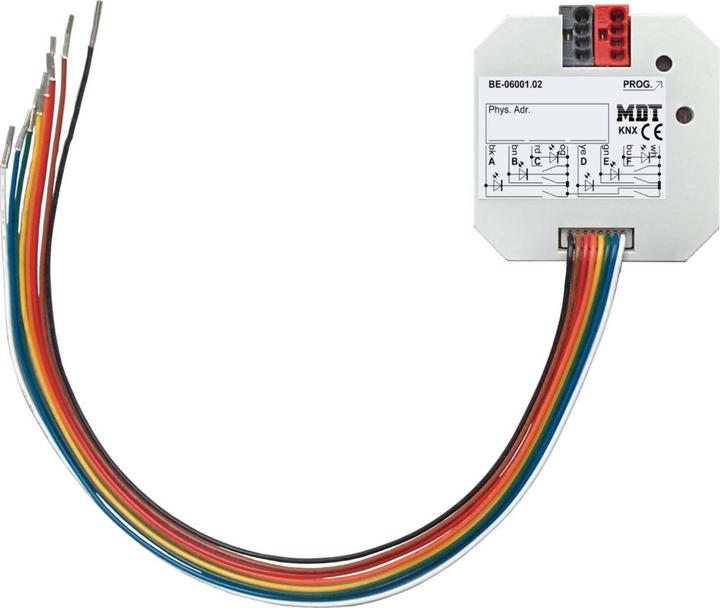

MDT technologies push-button interface 6-fold BE-06001.02

Manufacturer: MDT technologies
Designation: Push-button interface 6-fold flush-mounted, potential-free
Type: BE-06001.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: Flush-mounted
With bus coupling: Yes
Bus module removable: No
Control LED: Yes
With LED display: No
Number of inputs: 6
Type of input voltage: Pulsed
Protection class (IP): IP20
Min. depth of device box: 35 mm

Further details:
Button interface / push-button interface 6-fold, flush-mounted, potential-free version. Designed for connection of potential-free contacts or LEDs. For installation in the switch box, cable length max. 5m. Suitable for connecting pushbuttons, switches, and window contacts. Each input can be set as output for 1.5mA LEDs (low current). Features a new multiple tap function that sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long key press. Includes 4 integrated logic modules for evaluating inputs (e.g., window closed or send second object). Supports normally open or normally closed operation, with adjustable length of button press. Offers dimmer and shutter functions for one- and two-button operation. Sending of values, forced operation, and switching commands are adjustable. Supports push-button operation with short/long push-button action and 2 objects. Integrated pulse and switch counters. Cyclic sending is adjustable. For installation in the switch box (length of connection cable: 22 cm).

Dimensions (W x H x D): 41 mm x 41 mm x 12 mm. Integrated bus coupler.
EAN: 4251916110062.
