MDT LED controller

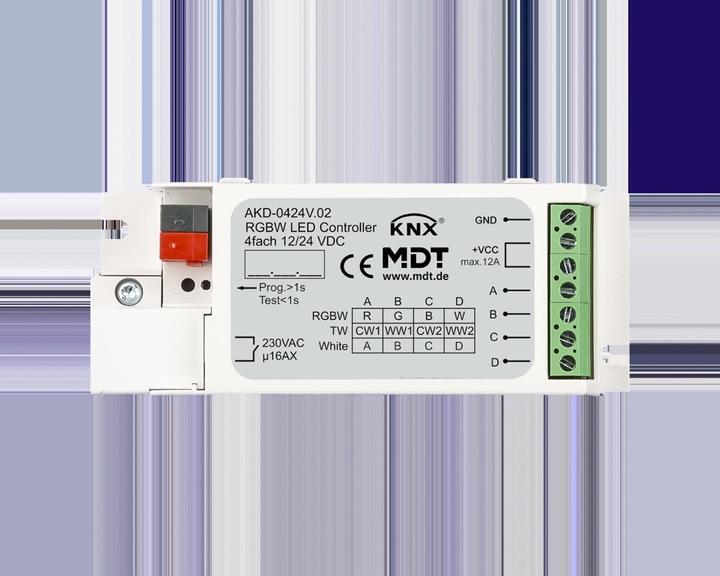

MDT technologies LED controller 4-channel AKD-0424V.02.

Manufacturer: MDT technologies
Name: LED controller 4-channel 3/6A, RGBW
Type: AKD-0424V.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Design: Dimming actuator
Mounting type: Recessed installation
With bus coupling: Yes
Bus module removable: No
Extension input: No
On-site/manual operation: No
With LED display: No
Number of outputs: 4
Output power: 72 W
Power add-on usable: No
Voltage: 12-24 V
Parallel operation possible: Yes
Frequency: 1000 Hz
Protection class (IP): IP20

The LED controller is designed for 12/24V constant voltage LED applications, supporting 4 single channels or RGBW, tunable white. It features extensive applications, absolute and relative dimming for HSV color space and RGB, and tunable white color temperature control. Users can select the dimming curve and PWM frequency up to 1000Hz, with global and individual dimming speeds. It supports individual and predefined sequences, such as a TV simulator, and can repeat sequences for automatic color control.

The controller allows for switchable load sharing: 4 channels of 3A each or 1 channel of 5.25A and 3 channels of 2.25A each, with parallel operation of two channels at 6A. Operating modes include 4 x white, RGB, RGBW, and tunable white. It features automatic color temperature control (Dim2Warm), dynamic daylight control (HCL), and automatic time-dependent dimming with a day/night function.

Additional features include overcurrent and temperature monitoring, and an intelligent 16A C-load relay output for switching external LED power supplies.

Dimensions (W x H x D): 46mm x 25mm x 113mm.
EAN: 4251916130091.
