MDT EZ-0363.01

Ratings
BrandMore from MDT
Delivered between Tue, 7.10. and Thu, 9.10.
Supplied by
JACOB DE
free shipping

Product details

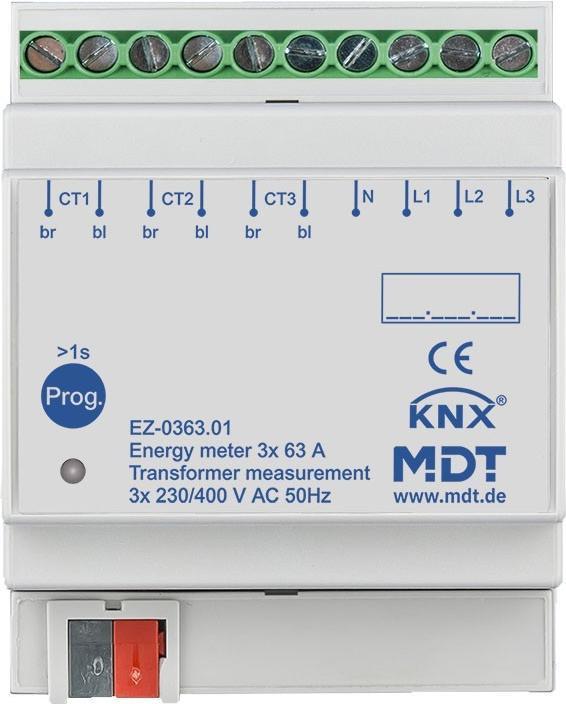

MDT Technologies Energy Meter 3-Phase EZ-0363.01

Manufacturer: MDT Technologies
Description: Energy Meter 3-Phase 63 A, Transformer Measurement
Type: EZ-0363.01
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Energy Meter
Connection Type: convertible
Reactive Power: yes
PTB Approval: no
S0 Pulse Interface: none
Tariff Switching: no

Further Details: KNX Energy Meter 3-Phase 63 A, Transformer Measurement, 4TE REG, 230/400 V AC. Industrial design. 3-Phase Bidirectional Meter. Transformer measurement up to 63 A. 3-Phase Bidirectional Meter for Active Energy. 3 cable conversion current transformers 63 A included for easy snap-on installation. Energy meter for single-phase or three-phase circuits. Measurement of active/reactive and apparent power, voltage, current, and power factor cos phi. Separate recording of energy consumption and fed-in energy (kWh). Integrated True RMS current measurement. Current measurement range 30 mA ... 63 A. Threshold switch (1 Byte/2 Byte/2 Byte float). Main and intermediate meter. 4 mm² connection terminals. Length of current transformer cables: 650 mm. Quick download of the application (long frame support from ETS 5).
EAN: 4251916130749.

Key specifications

measurement module
Kilowatt hours
Maximum current
63 A
Energy meter type
Energy meter
Nominal voltage
400 V
Mounting type
Top-hat rail
Item number
25366181

General information

Manufacturer
MDT
Category
Energy monitors
Manufacturer no.
EZ-0363.01
Release date
24.10.2022

Colour

Colour
Grey

Energy meter property

Energy meter type
Energy meter
Mounting type
Top-hat rail
measurement module
Kilowatt hours
Maximum current
63 A
Nominal voltage
400 V
Pulse output
None
Polar type
Three-wire

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
70 mm
Length
100 mm
Width
90 mm

Package dimensions

Length
22.70 cm
Width
10.10 cm
Height
7.10 cm
Weight
386 g
