MDT BE-TA55T2.G2

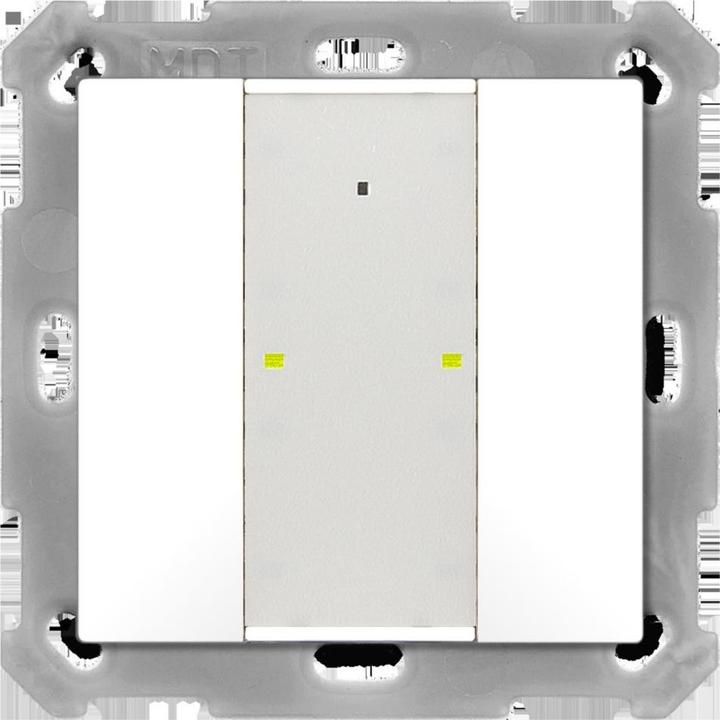

MDT technologies push-button plus TS 55 2-gang is a pure white glossy device. It features a type designation of BE-TA55T2.G2 and is compatible with the KNX bus system. This model does not support KNX radio, radio bus, LON, or Powernet systems. It does not have radio bidirectional capabilities and is flush-mounted. The device does not include anti-theft or disassembly protection but does come with a bus coupling.

It has 2 actuation points and 2 buttons, along with an LED display and a labelling field. The material is thermoplastic with a glossy finish, and the color is similar to RAL 9010. It does not have transparency, a room thermostat, or an infrared sensor. The protection class is IP20, and the minimum depth of the appliance box is 35 mm.

Further details include the push-button plus TS 55 2-gang in pure white glossy, equipped with 2 buttons and a temperature sensor. It features an LED for operation/status and orientation light. It is suitable for 55 mm switch ranges such as GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7, or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW, or MERTEN 1M, M-Smart, M-Plan, M-Pure. The temperature sensor records room temperature, and there is a central labelling field with a cover foil for individual labelling.

The buttons can be customized as a pair or as individual buttons, allowing for one and two-button operation for switching, dimming, blinds, and values. It features innovative group control with long/extra-long button presses, enabling switching of values/scenes with up to 4 values. Short and long button presses can control 2 objects, and there are 4 logic blocks. Two operation/status LEDs (red/green) and the orientation light can be controlled independently, with a switch object for controlling the LED priority. Installation is in a switch box with the supplied support ring, and it includes an integrated bus coupling unit.
