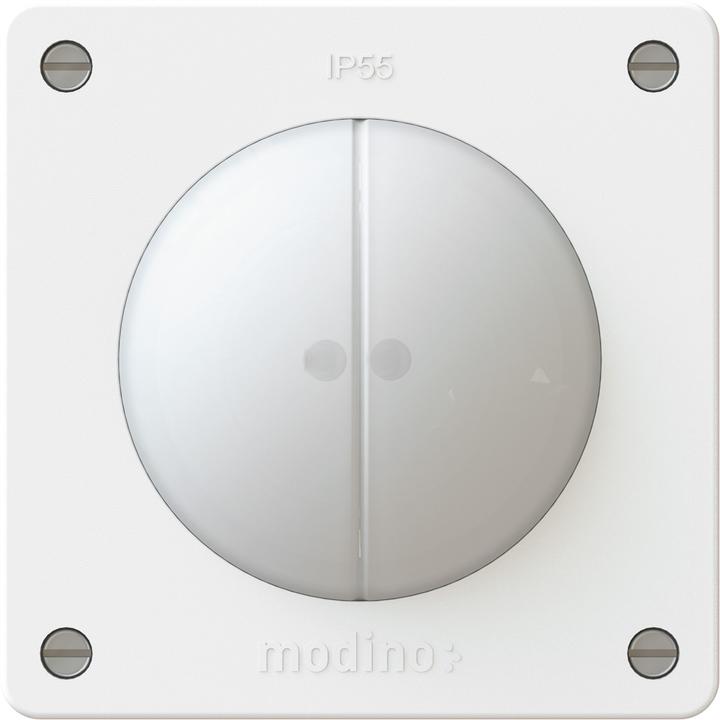

Max Hauri modino exo double pushbutton A/R 2x illuminated AP IP55

Double push button 2x normally open/closed 2x illuminated with white LED / Size 1x1 / Design: surface-mounted / Current: 10A / Voltage: 250V / Additional function: 2x front lens, with terminal blocks / Installation height: 75mm / Color: white / IP protection class: IP55 / modino exo

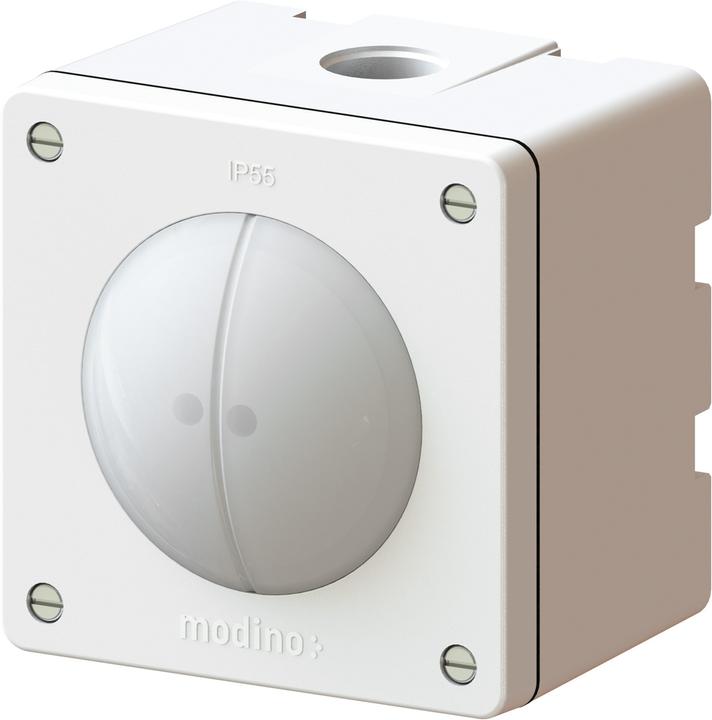

This double push button is mounted directly onto a wall. One M20 conduit entry on the top and two on the bottom allow for the use of cable glands for proper wiring. It enables the switching of two lighting groups from multiple locations via minute timers or step switches. Thanks to the terminal blocks, the connection is quick and easy. The white LED illumination can be used either as an operational indicator or as constant lighting for easy visibility in the dark.

The IP55 protection class encompasses both complete dust and touch protection (IP5X) and protection against water jets (IPX5) for the assembled device. This protection is ensured with the IP55 plug inserted as well as with the hinged cover closed. With its IP55 rating, it also meets all requirements of the standard SN 441011.

The modino exo switch and socket program stands for guaranteed durability and Swiss design. It is the right solution for harsh environments in buildings, in commercial settings, in public facilities, and in recreational areas. The antibacterial surface reduces the risk of infection from frequent contact, for example, in public spaces.
