CHF 22.70

Makeblock Me Stepper Motor Driver

The Me Stepper Driver V1.0 is a easy to use stepper motor driver board based on chip A4988, generally used to drive bipolar stepper motors precisely.

Art-Nr 5999731
approx. 10 – 12 days Currently > 5 piece(s) in stock at the supplier

Availability

  • approx. 10 – 12 days
    Currently > 5 piece(s) in stock at the supplier

If ordered immediately.
Information subject to change.

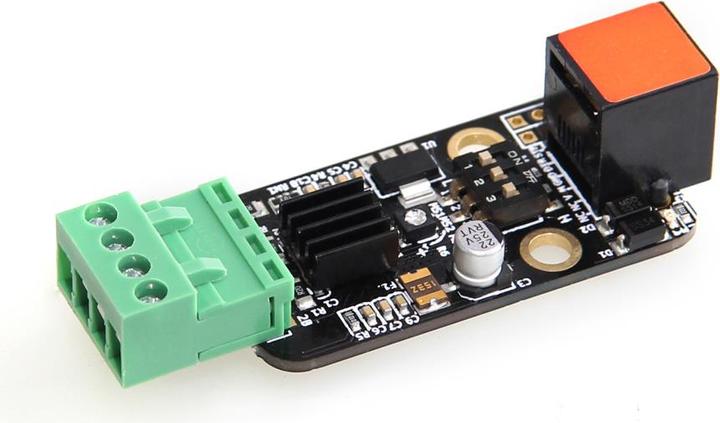

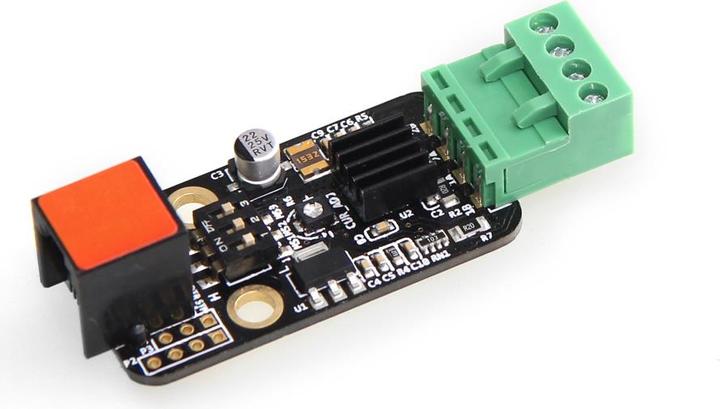

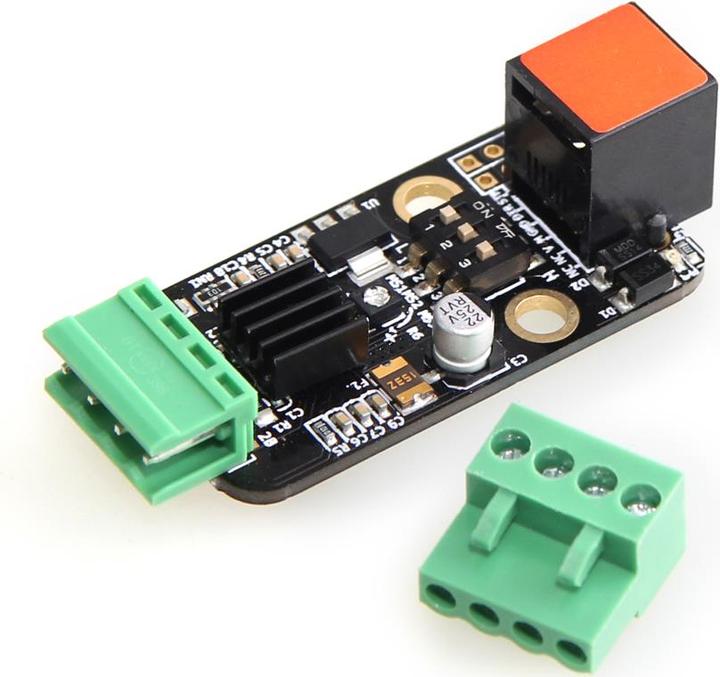

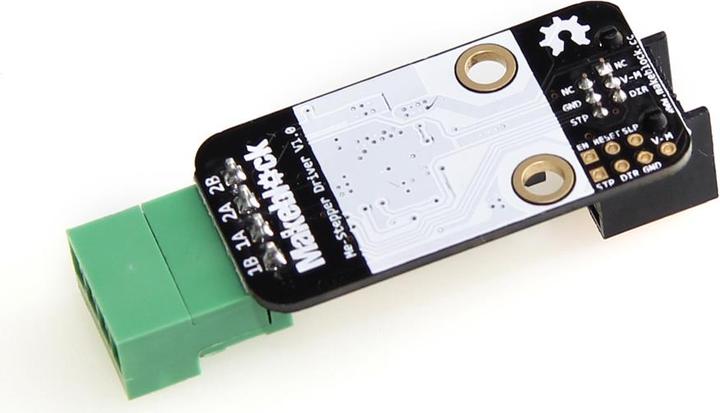

Makeblock Me Stepper Motor Driver Actual product image
CHF 22.70

Makeblock Me Stepper Motor Driver

Description

The Me Stepper Driver V1.0 is a easy to use stepper motor driver board
based on chip A4988, generally used to drive bipolar stepper motors
precisely. It is perfect for 3D printing, CNC, Makeblock Music Robot
as well as a lot of other applications where it's necessary to control
precise movement.

The A4988 is a complete microstepping motor driver with built-in
translator for easy operation. It is designed to operate bipolar
stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step
modes. Plus, we add a on-board DIP Switch and a on-board potentimeter,
so you can change step modes and the current of motor easily.

Features:

* A4988 stepper driver chip
* Compatible with 4 wire bi-polar stepper motors
* A potentiometer to control the current of the stepper motor
* A on-board DIP Switch(2 POS SIDE ACTUATED) support full, half,
quarter, eighth, and sixteenth-step modes
* A buildin fuse protects board and chip from over current or any
shortage by any reasons
* A on board heat sink helping heat dissipation allows driver chip
current up to 1.35A

Easy to use:

* Comes with Arduino library for easy programing
* A power indicator
* Easy wiring with 6 Pin RJ25 interface
* Labeled with red tag and compatible with Me BaseBoard
* 2.54mm breakout pins for connecting with jumper wires
* 16mm interval M4 mounting holes, compatible with Makeblock beams

Specification:

* Max current: 1.35A
* Max motor drive voltage: 25V (Note: Me BaseBoard max supply
voltage 12V)
* Logic voltage: 5V
* Dimensions: 48mm*24mm(Length Width)

Part List:

* 1 x Me Stepper Motor Driver V1.0
* 1 x HT3.96-4P
* 1 x heat sink

Links:

* Arduino Library [1]

Links:
------
[1] http://wiki.makeblock.cc/index.php?title=Library_Download
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer Makeblock
Product type Robotics module
Item number5999731
Manufacturer no.MB-12009
