Maico VZ24C DELAY057.0822

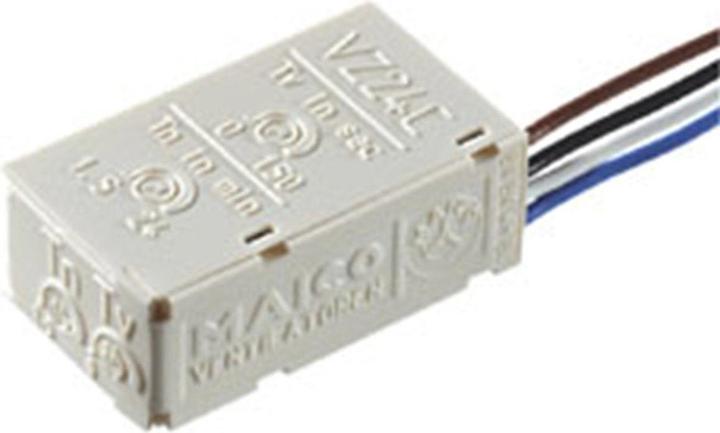

Maico Delay Timer Switch VZ 24 C

Manufacturer: Maico
Designation: Delay timer switch 1.5 to 24 min
Successor type: VZ 24 C
Type of electrical connection: other
Complete device with base: no
Snap-on for contactor: no
Delayed response function: yes
Delayed drop-out function: yes
Switch-on pulse function: no
Switch-off pulse function: no
Star/delta function: no
Pulse shaping function: no
Flashing function starting with pause, fixed time: no
Flashing function starting with pulse, fixed time: no
Pulsing function starting with pause, variable: no
Pulsing function starting with pulse, variable: no
Time range: 90 to 1440 s
Remote control possible: no
Suitable as remote control: no
Rated control supply voltage Us at AC 50 Hz: 0 to 230 V
Rated control supply voltage Us at AC 60 Hz: 0 to 230 V
Type of voltage for actuation: AC
Number of outputs, delayed, normally open: 1
Outputs, switchable delayed/undelayed: no
With semiconductor output: no
Width: 20 mm
Height: 13 mm
Depth: 35 mm

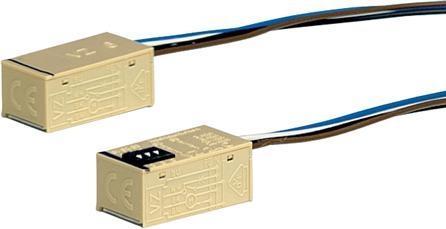

The Maico Delay Timer Switch VZ 24 C is a delay timer switch for controlling the switch-on delay and run-on time of fans. It is operated via standard switches or push buttons. It is interference-resistant according to EN 61000-4-5 (at 1000 V to 4000 V). Additional interference suppression measures may be required (L-, C-, or RC-elements, protection diodes, varistors).

Item: VZ 24 C
Rated voltage: 230 V
Mains frequency: 50 Hz / 60 Hz
Maximum load: 1.25 A
Protection class: IP 40
Weight: 0.01 kg
Weight with packaging: 0.02 kg
Ambient temperature: 0 °C to 50 °C
Run-on time: 1.5 min - 24 min
Switch-on delay: 0 s - 150 s
EAN: 4012799578222.
