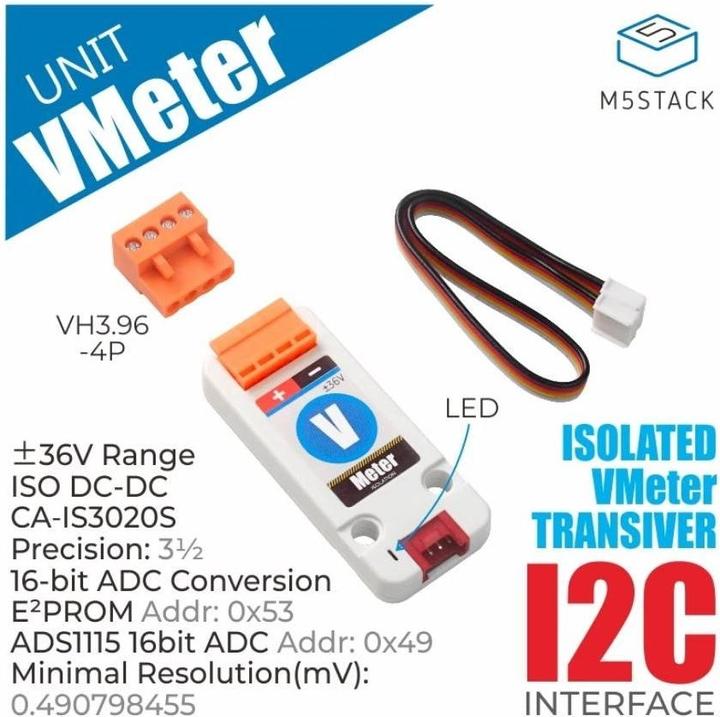

M5Stack Voltmeter Unit ADS1115

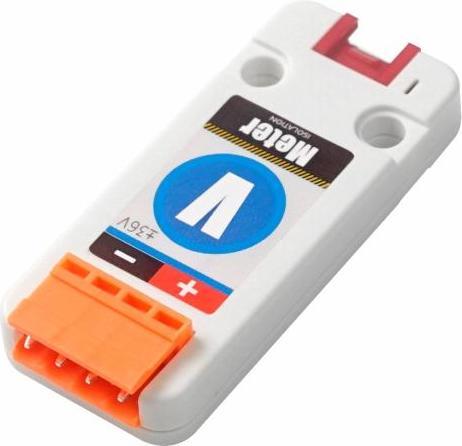

The M5Stack Voltmeter Unit is a voltage measuring device capable of measuring up to ±36V. To ensure measurement accuracy, it features an isolated CA-IS3020S DC-DC power supply. The 16-bit ADS1115 analog-to-digital converter can be used for communication via the I2C protocol (the default I2C address is 0x48 unless manually changed). The I2C interface is also electrically isolated by the low-power isolation module CA-IS3020S. Each device is factory calibrated with an initial accuracy of 0.1% FS, ±1 count.

Caution: Calibration data and parameters are stored in the EEPROM memory. Ensure that you do not overwrite the EEPROM to prevent incorrect measurements.

Features:

• ±36V measurement range
• 16-bit analog-to-digital conversion
• LED power indicator
• Pre-calibrated
• Easy reading via I2C
• Built-in CA-IS3020S isolation chip
• Supports Arduino and UIFlow

Technical Details:

• Manufacturer: M5Stack
• Manufacturer SKU: U087
• Measurement range: ±36V
• Communication protocol: I2C 0x49
• Dimensions: 65 x 24 x 13 mm
• Weight: 23.5 g

Included in the package:

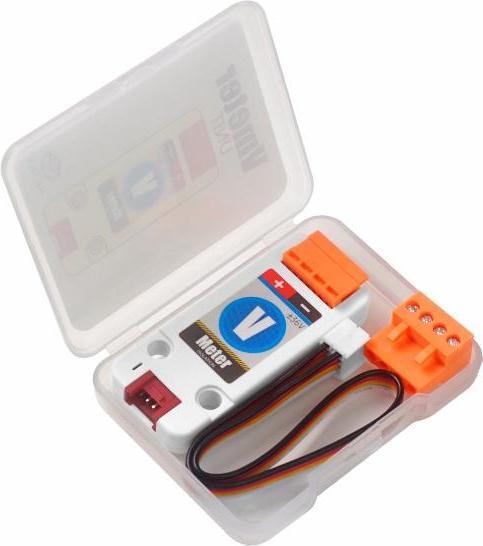

• 1x M5Stack Voltmeter Unit ADS1115 voltage measuring device
• 1x 20 cm Grove connection cable.
