M5Stack Unit camera OV2640

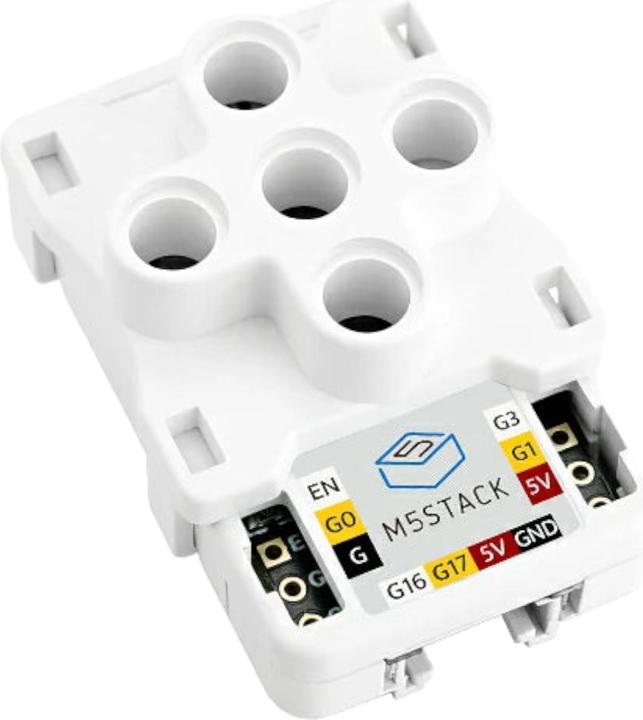

The M5 Stack Unit camera OV2640 is a high-quality WiFi camera that is characterised by its compact and minimalist design. Equipped with an ESP32-WROOM-32E control core and a 2-megapixel image sensor, this camera offers a wide range of applications. The pre-installed software enables image transfer and offers interfaces for image data acquisition as well as for adjusting parameters such as white balance, exposure and size. You can control the camera via UART or WiFi and retrieve data directly. Thanks to the support of UIFlow for graphical programming, simple operation is possible without in-depth development experience. The camera is supplied with a mounting clip that allows easy attachment in various positions. The high performance at an attractive price makes this camera ideal for various wireless camera applications.

Features:

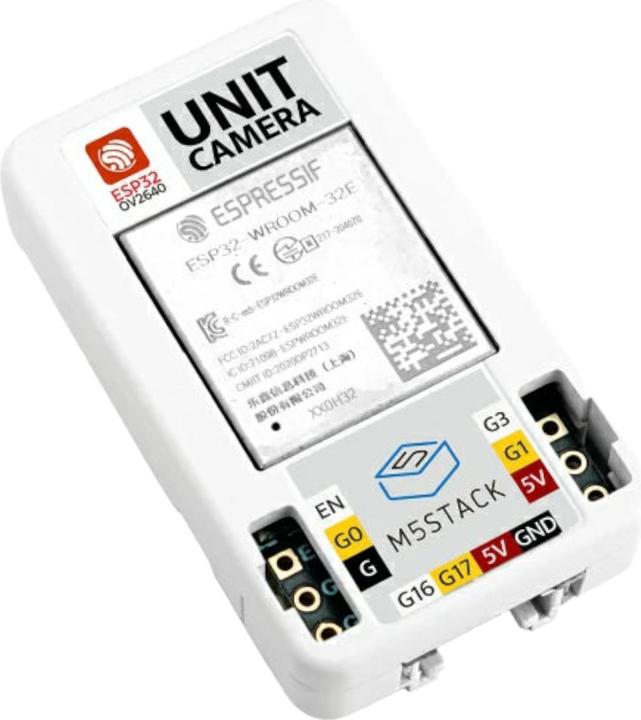

The ESP32-WROOM-32E control core provides a powerful base for the camera.

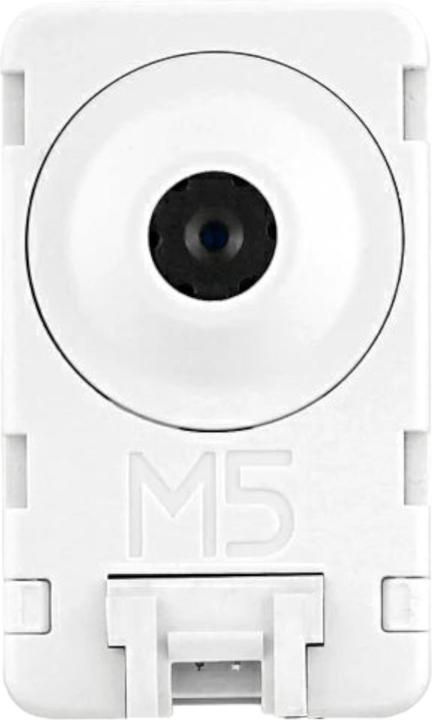

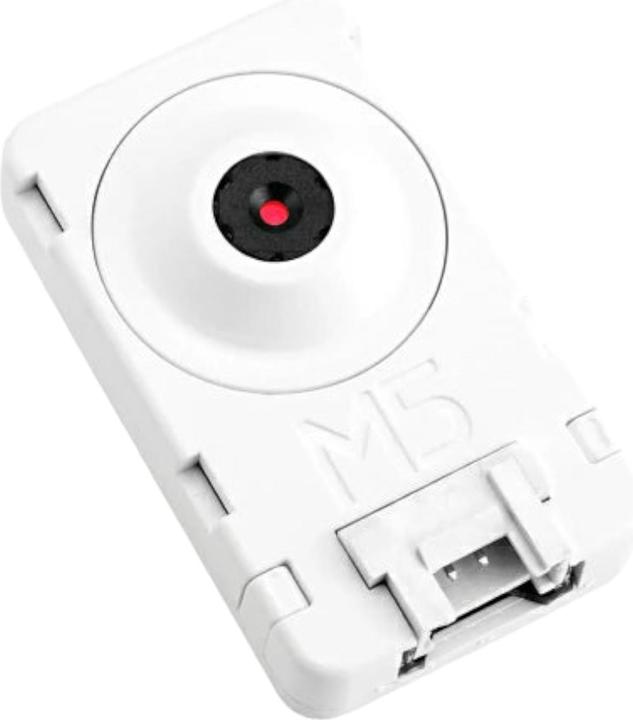

The camera has a 2 megapixel image sensor (OV2640).
Communication takes place via UART and supports the acquisition of image data and the adjustment of image parameters.
Images are transmitted via WiFi, which enables flexible and wireless use.
A programmable LED indicator (blue) shows the operating status.
The camera supports various programming platforms, including ESP-IDF, Arduino and UIFlow.

Application examples:
Home surveillance
Smarthome integration
Industrial surveillance
Agricultural monitoring
Education and research

Documentation:
M5Stack Wiki
Official M5Stack Forum

Technical data:
Manufacturer: M5Stack
Manufacturer SKU: U109-B
ESP32-WROOM-32E: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash: 4MB
Camera: Image sensor: OV2640
Focal length 4.8±5% mm
Aperture: 2.4±5%
Lens type: 1/4 inch
Field of view: 65°
Pixels: 2 megapixels
Sensitivity: <1%
Supported output formats: YUV (422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit raw RGB data
Dimensions: 40 x 24 x 19mm
Weight: 16g

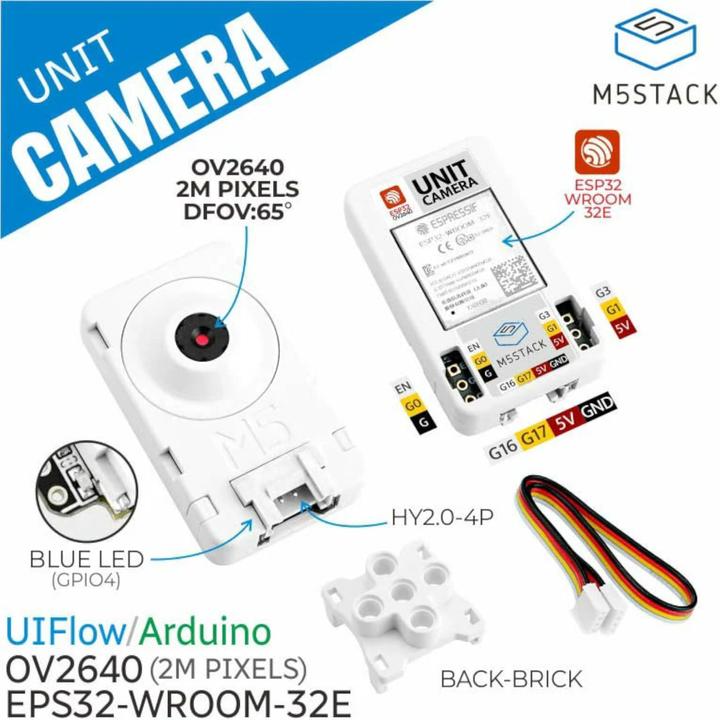

Scope of delivery:
1x M5Stack Unit camera OV2640
1x Grove cable.
