M5Stack Thermal Camera Unit MLX90640

Ratings
Delivered between Fri, 27.6. and Mon, 30.6.
10 items in stock at third-party supplier
Supplied by
free shipping

Product details

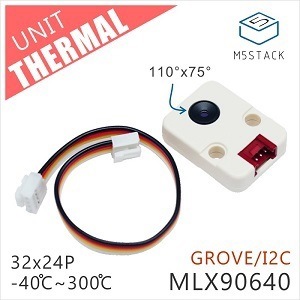

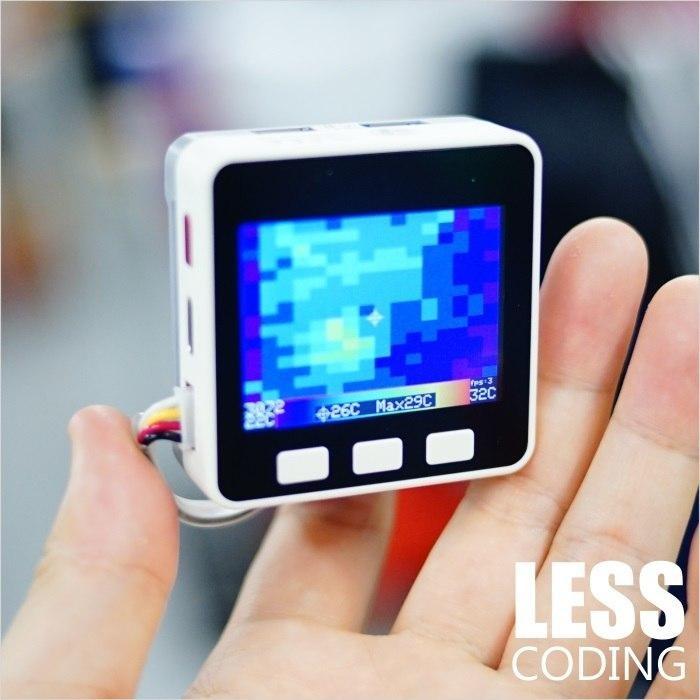

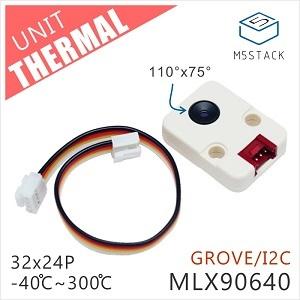

The M5Stack Thermal Unit is a thermal imaging camera extension that features a built-in MLX90640 thermophilic sensor. This camera can be used to measure the surface temperature of an object and generates a thermographic image based on a temperature gradient created by varying surface temperatures. The image resolution is 32 x 24 pixels. The MLX90640 infrared (IR) sensor array combines high resolution with reliable operation in harsh environments, providing a cost-effective alternative to more expensive high-end thermal cameras. This unit communicates with the M5Core via the Grove A interface, with an I2C address of 0x33.

Technical Details:
Manufacturer: M5Stack
Operating Voltage: 3V to 3.6V
Thermal Image Array: MLX90640
Current Consumption: 23mA
Field of View: 110° x 75°
Measurement Range: -40°C to 300°C
Resolution: ±1.5°C
Update Rate: 0.5Hz to 64Hz
Operating Temperature: -40°C to 85°C
Interface: Grove A
Used Pins: G22, G21 (SCL, SDA)
I2C Address: 0x33A

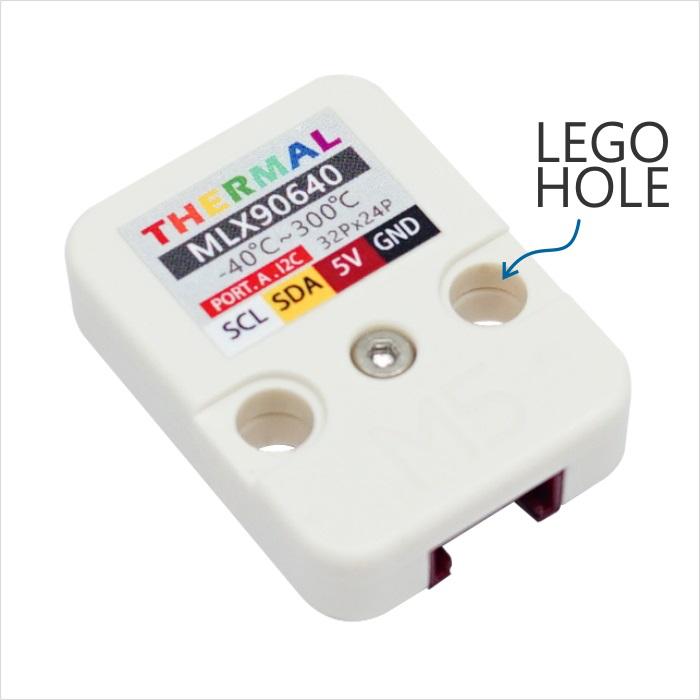

Mounting: Two Lego-compatible holes
Dimensions: 32 x 24 x 9mm
Weight: 18g

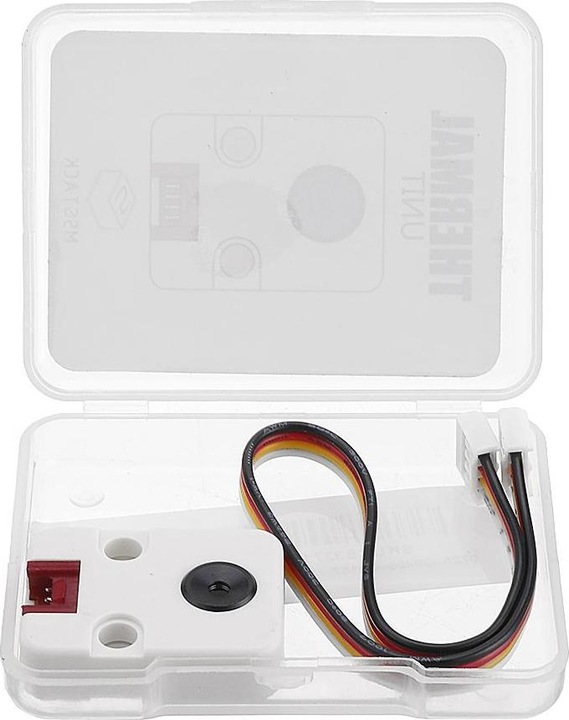

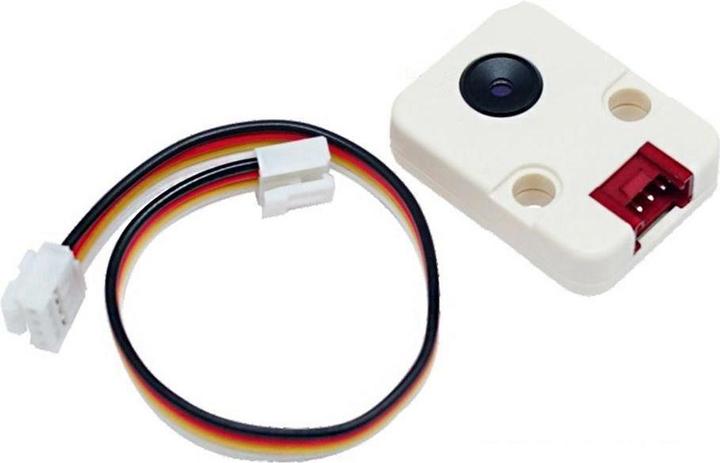

Included in the package:
1x M5Stack Thermal Camera Unit MLX90640
1x Grove Cable 20cm
1x Storage Box.

Key specifications

Clock speed
0 MHz
Item number
24877707

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
24.3.2023

Development board properties

Clock speed
0 MHz

Power supply

Power supply
Electrical connection
Operating voltage
3.60 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x GROVE cable 20cm, 1x M5Stack Thermal Camera Unit MLX90640, 1x storage box

Product dimensions

Weight
18 g
