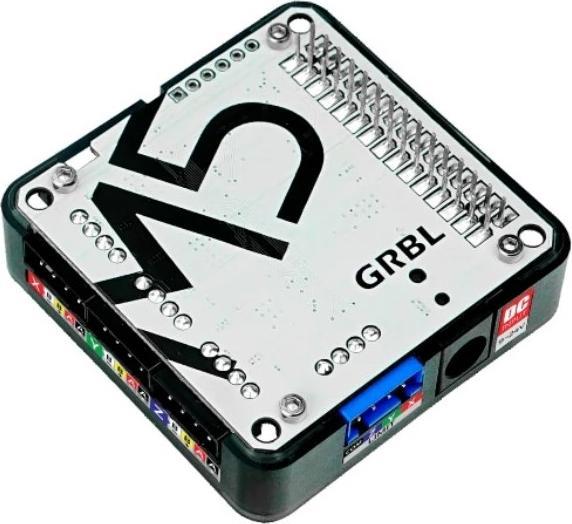

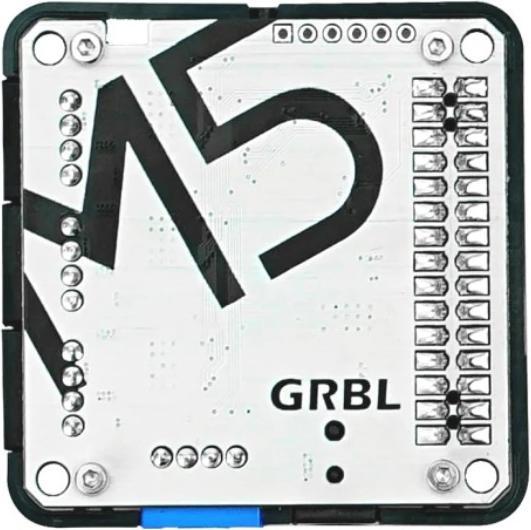

M5Stack Stepper motor driver GRBL module 13.2

Ratings
BrandMore from M5Stack
Delivered Wed, 8.4.
7 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

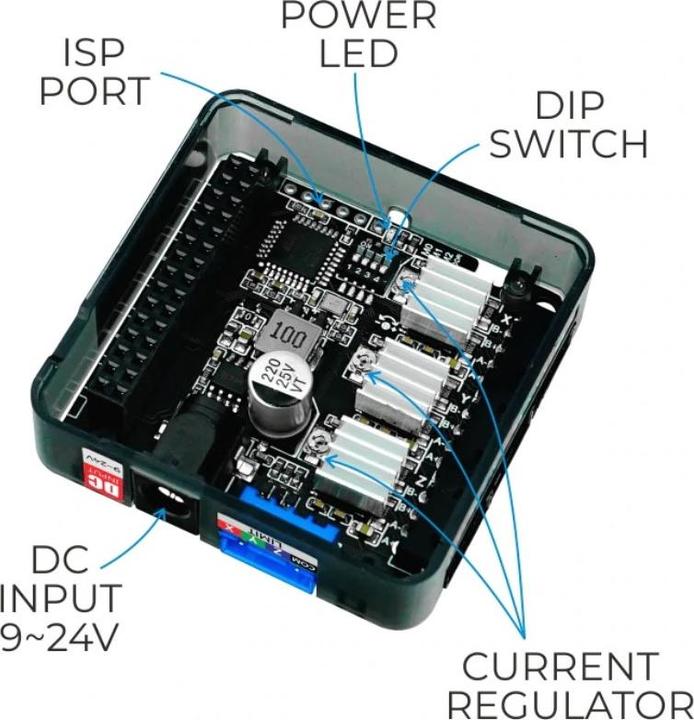

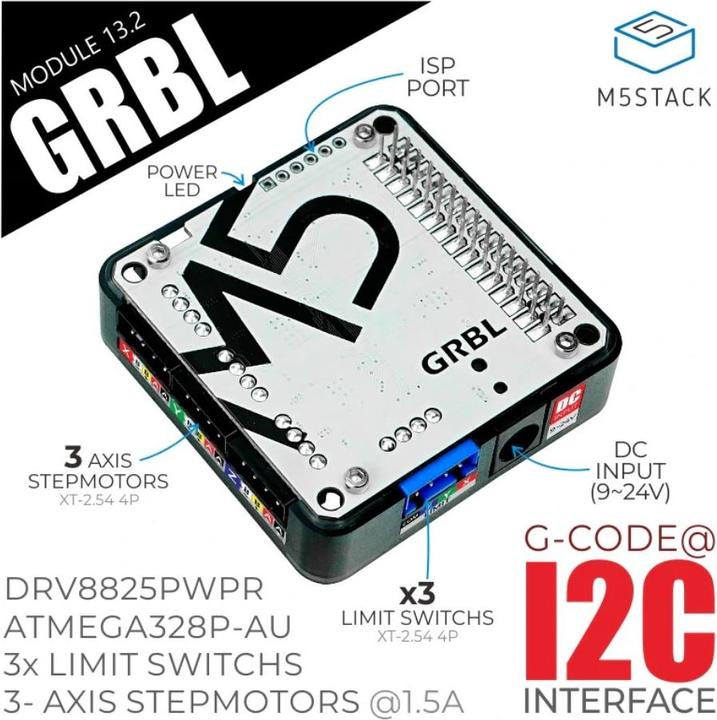

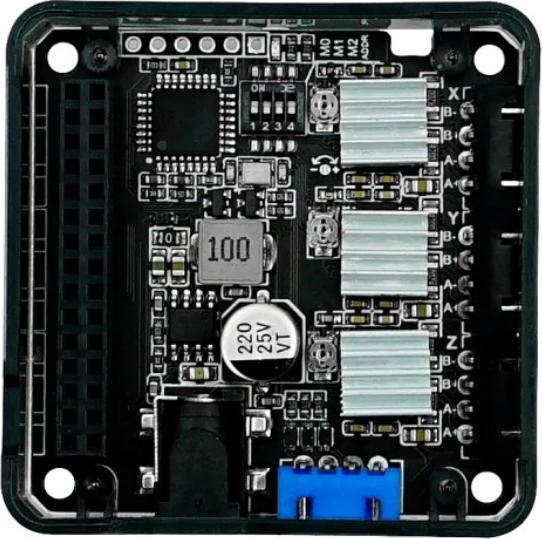

This is a 3-axis stepper motor driver from M5Stack. The module is part of the stackable M5Stack series and can be connected to an M5Stack Base along with other such modules. It uses an ATmega328P-AU controller with a 3-way DRV8825 stepper motor driver chip. The module comes pre-flashed with GRBL firmware. Communication occurs via the I2C interface (address 0x70). The input voltage ranges from DC 9-24V, and the output current can reach up to 1.5A.

Features:

  • ATmega328P-AU controller

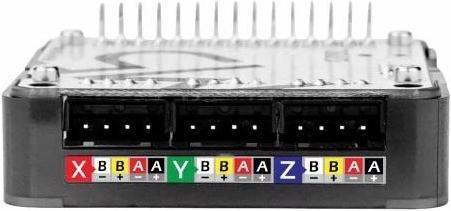

  • 3-axis DRV8825 stepper motor driver chip
  • Stepper motor current up to 1.5A
  • Input voltage 9-24V DC
  • Up to 1/32 microstepping

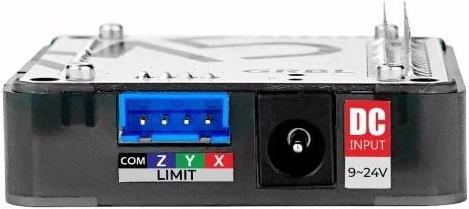

  • Supports up to three limit switches

Technical Details:

  • Manufacturer: M5Stack
  • Manufacturer SKU: M035
  • Input Voltage: 9-24V DC
  • Current: up to 1.5A
  • Controller: ATmega328P-AU
  • Motor Driver Chip: 3-axis DRV8825
  • Interface: I2C (address 0x70)
  • Firmware: GRBL
  • Dimensions: 54.2 x 54.2 x 13.2 mm
  • Weight: 43.3 g

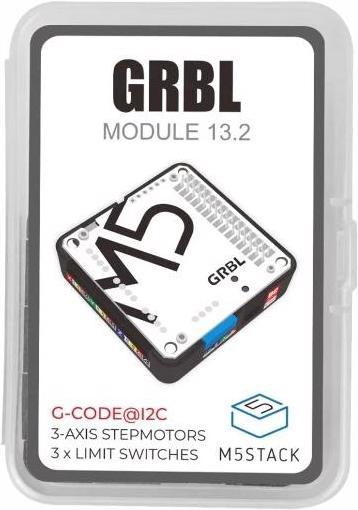

Package Contents:
1x M5Stack GRBL Module 13.2 Stepper Motor Driver.

Key specifications

Processor type
ATmega328P

General information

Item number
16229317
Manufacturer
M5Stack
Category
Single board computer kits
Manufacturer no.
M035
Release date
10.7.2021

Target group

Target group
Adults

Development board properties

Processor type
ATmega328P

Power supply

Operating voltage
24 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 2.14

Scope of delivery

Scope of delivery
1x M5Stack GRBL module 13.2 Stepmotor Driver

Product dimensions

Length
54.20 mm
Width
54.20 mm
Height
13.20 mm
Weight
22.50 g
