M5Stack RS485 to TTL Unit

Ratings
Delivered between Tue, 10.6. and Wed, 11.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

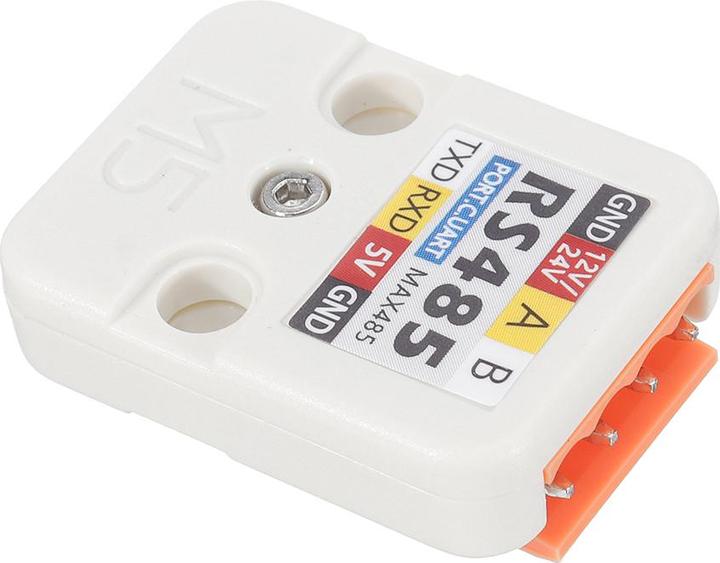

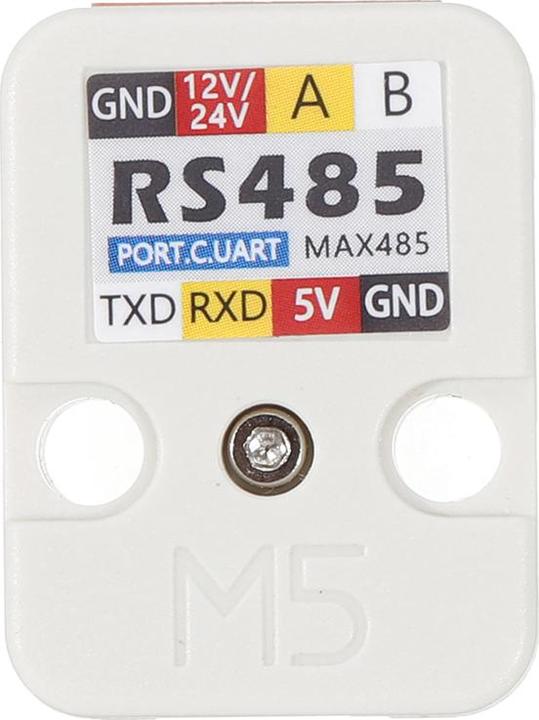

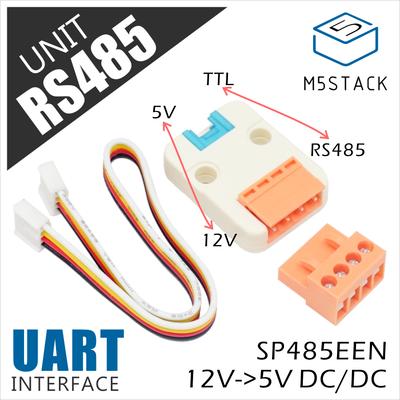

The M5Stack RS485 to TTL Unit is a TTL to RS485 converter. This RS485 HAT features an automatic 485 transceiver circuit and a DC-DC buck circuit that can reduce an input of 12V or 24V to 5V. With RS485, you can communicate serially with other devices or M5Stack Core over long distances.

Technical details:

  • RS485 chip: SP485EEN
  • Voltage converter: AOZ1282CI
  • Input DC: 5 to 12 V
  • Band rate up to 115200
  • Mounting: Two Lego compatible holes
  • Connector Plug: PH2.0 4 Pin
  • Interface: Grove C
  • Used pins: G16, G17 (RS485 TXD, RS485 RXD)
  • Dimension: 32 x 24 x 10 mm
  • Weight: 20 g

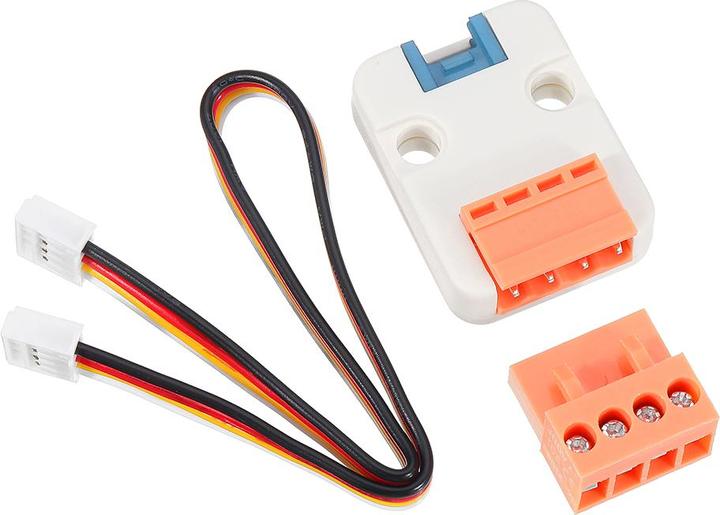

Scope of delivery:

  • 1x M5Stack RS485 to TTL Unit
  • 1x 4-pole RM3.96 clamp
  • 1x GROVE cable 20 cm

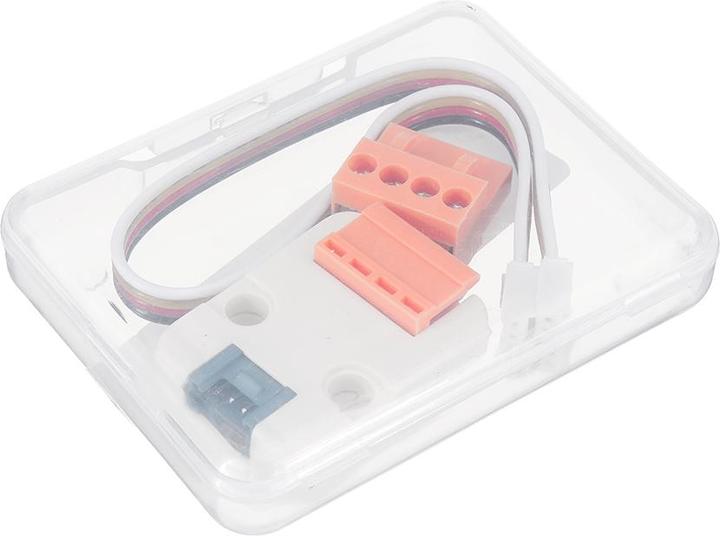

  • 1x storage box.

Key specifications

Item number
24877705

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
24.3.2023

Power supply

Operating voltage
12 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 4-pole RM3.96 terminal, 1x GROVE cable 20cm, 1x M5Stack RS485 to TTL unit, 1x storage box

Product dimensions

Weight
20 g
