M5Stack QR Code Scanner Unit STM32F030

Delivered between Tue, 5.8. and Wed, 6.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

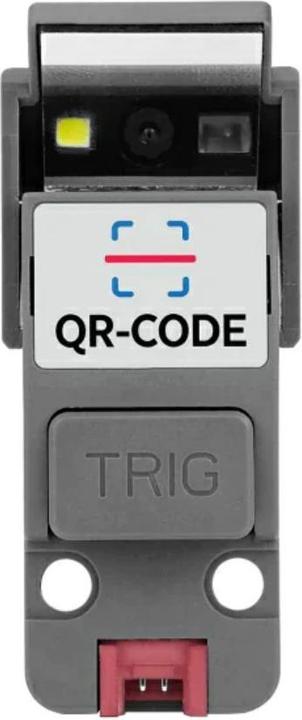

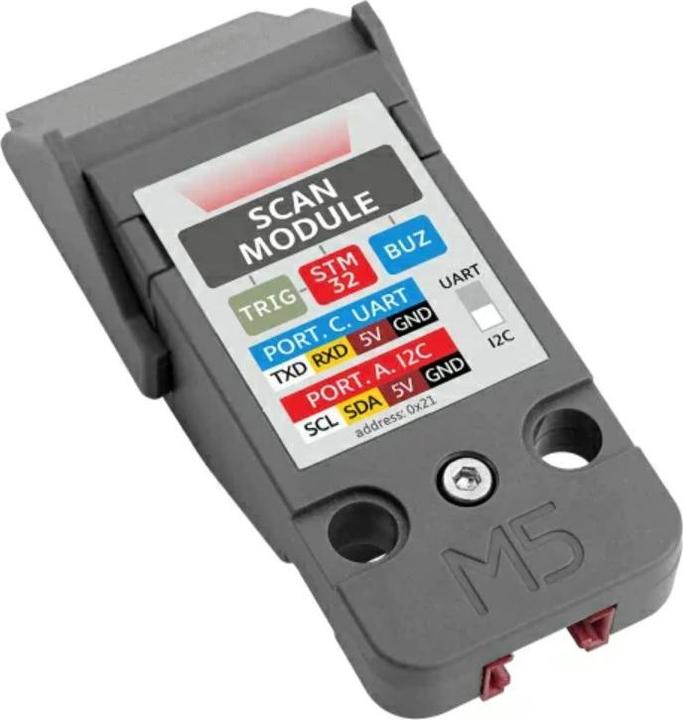

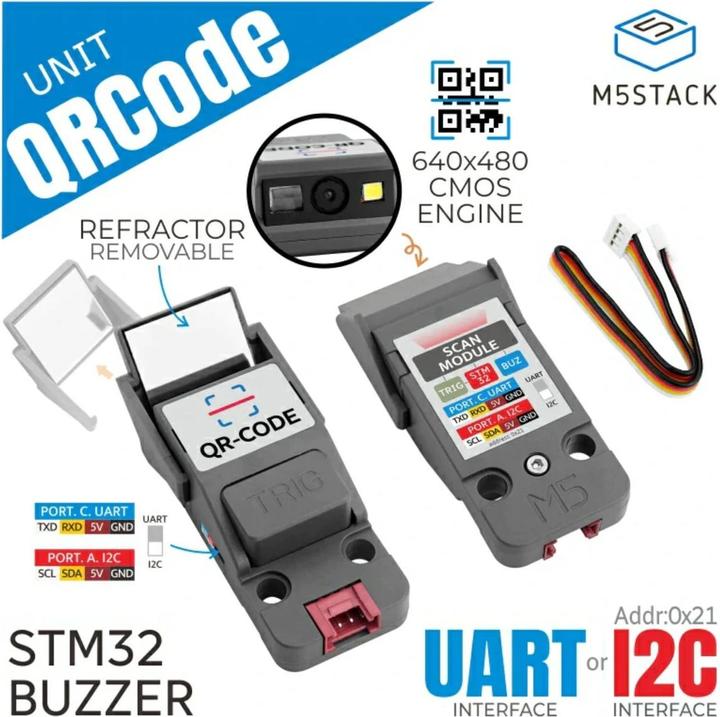

The M5Stack QR Code Scanner Unit STM32F030 is an innovative solution for capturing QR codes and barcodes. Equipped with a high-resolution CMOS QR code capture engine and a powerful STM32F030 microcontroller, this compact development board offers outstanding performance for various applications. The unit supports both one-dimensional and two-dimensional codes, making it versatile for use in logistics, retail, or manufacturing. A notable feature is the side switch that allows for easy switching between I2C and UART communication interfaces, significantly simplifying integration into existing projects. Additionally, the unit can operate in both automatic continuous trigger mode and manual trigger mode, allowing for flexible adaptation to different requirements.

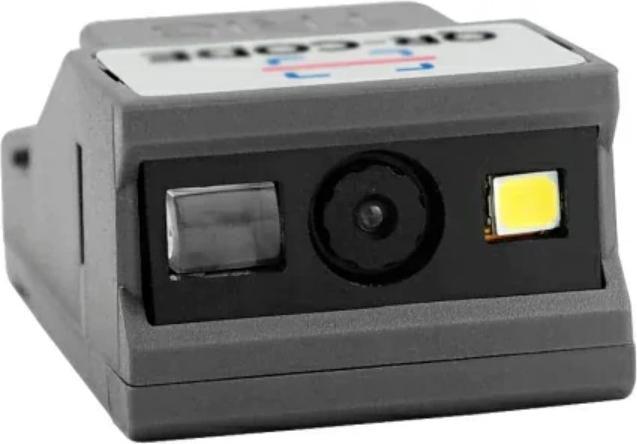

  • High-resolution CMOS QR code capture engine with 640x480 resolution
  • Switch between I2C and UART communication interfaces
  • Supports multiple types of one-dimensional and two-dimensional codes
  • Integrated scan trigger button, buzzer, and LED lights for visual and acoustic feedback
  • Configurable for automatic continuous trigger or manual trigger mode.

Key specifications

Development board type
Kit
Processor family
ARM
Item number
43301099

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
1.3.2024

Development board properties

Development board type
Kit
Processor family
ARM

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x M5Stack Grove cable 20cm1x M5Stack QR Code Scanner Unit STM32F030
Additionally required (not included)
1x M5Stack Grove cable 20cm

Product dimensions

Length
658 mm
Width
184 mm
Height
158 mm
Weight
19.80 g
