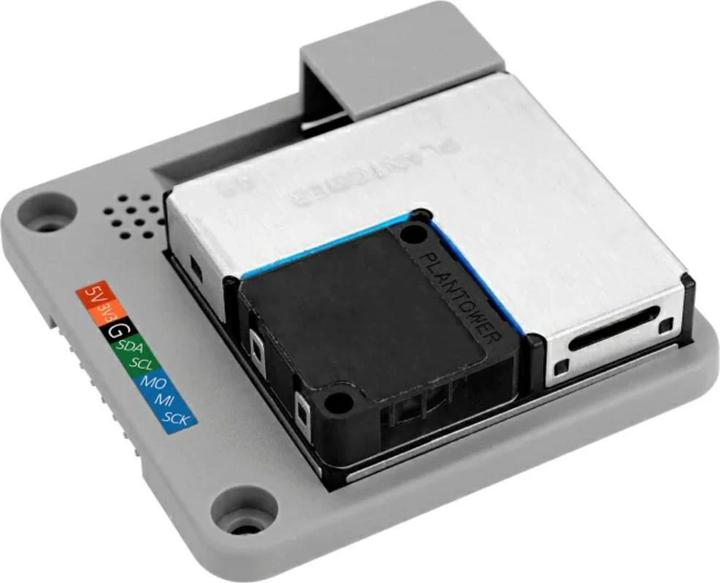

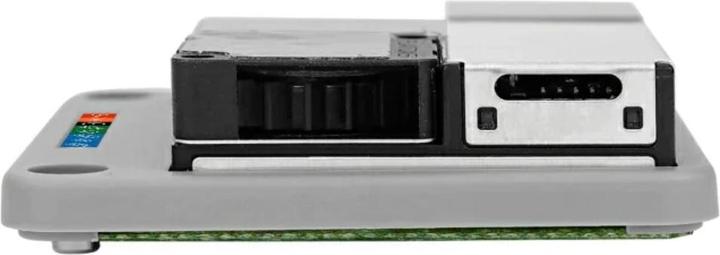

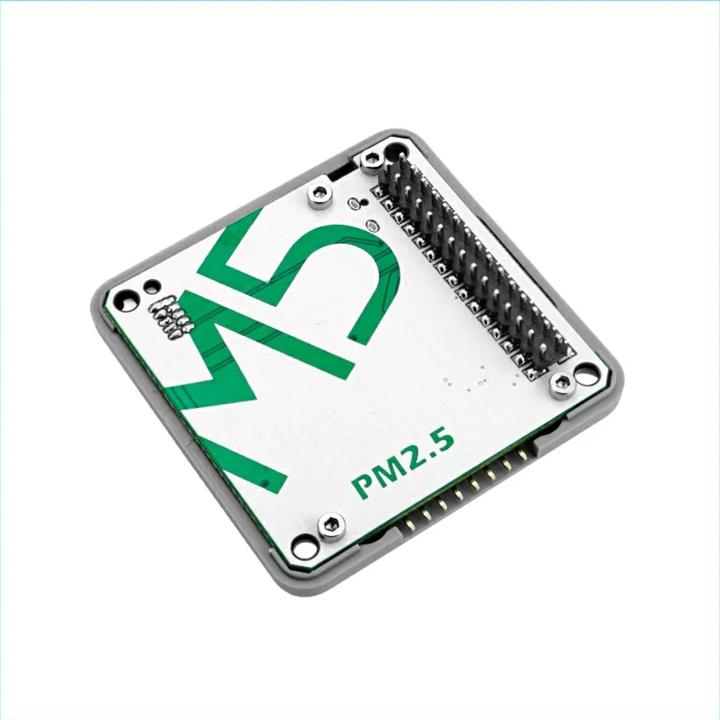

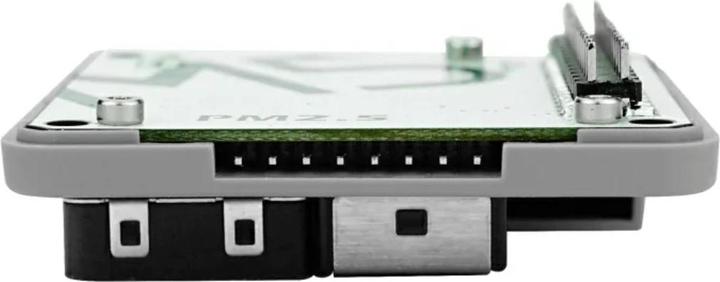

M5Stack PM2.5 Air Quality Module PMSA003

The M5Stack PM2.5 Air Quality Module is the ultimate solution for monitoring air quality. This module utilizes the state-of-the-art PMSA003 sensor to reliably determine the number of airborne particles of various sizes per unit volume. You can easily and flexibly deploy it in many different scenarios—whether in everyday life or industrial environments. Thanks to its fast and reliable measurement results, you will always know the status of the air quality in your surroundings. Additionally, the module can be seamlessly integrated into existing systems, providing you with the precise data you need to effectively improve air quality.

Features:
Power Supply: DC 5V
Compatibility: Fits the M5Stack stackable and expandable system
Connections: M5Core socket (Pin out SPI/I2C/Power)
Connection Options: USB Type-C port

Application Examples:
Monitoring air quality in living spaces
Use in industrial applications to comply with environmental regulations
Integration into smart home systems for a healthier living environment
Data collection for environmental research projects

Technical Specifications:
Manufacturer: M5Stack
Manufacturer SKU: M134
PM2.5 Sensor: PMSA003
Minimum Particle Size Resolution: 0.3μm
Particle Mass Concentration Resolution: 1μg/m³
Particle Measurement Range: 0.3-1.0; 1.0-2.5; 2.5-10μm
Operating Voltage: 5V
Operating Temperature: 0 to +40°C
Operating Humidity Range: 0 to 99%
Dimensions: 63 × 52 × 46mm
Weight: 58.2g

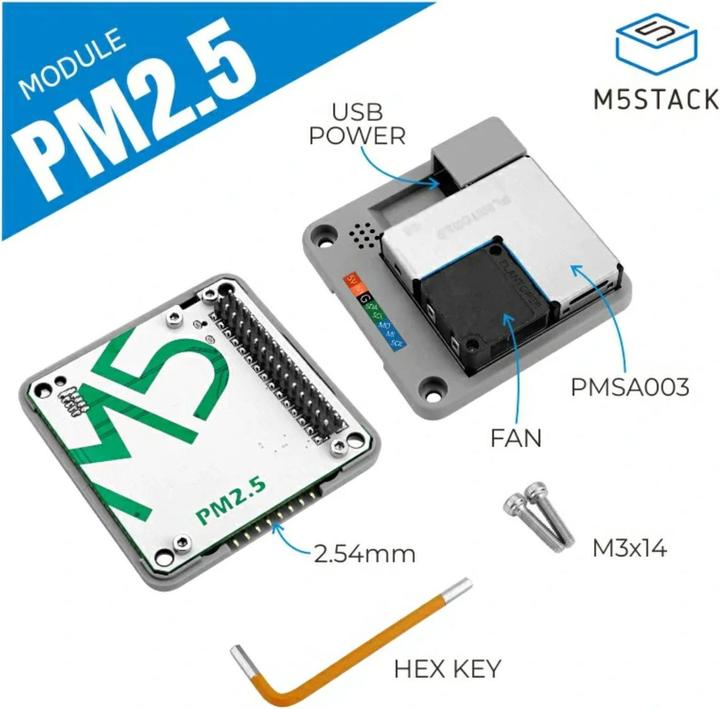

Delivery Includes:
1x M5Stack PM2.5 Air Quality Module PMSA003
2x M3×14 screws
1x Allen key.
