M5Stack M5Stamp ESP32S3 Module

Save CHF1.20
Ratings
Delivered between Mon, 21.7. and Wed, 23.7.
6 pieces in stock at supplier
Free shipping starting at 50.–

Product details

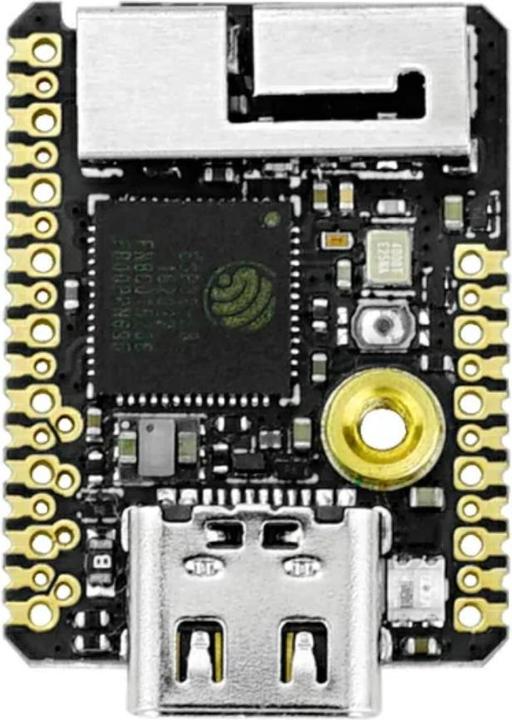

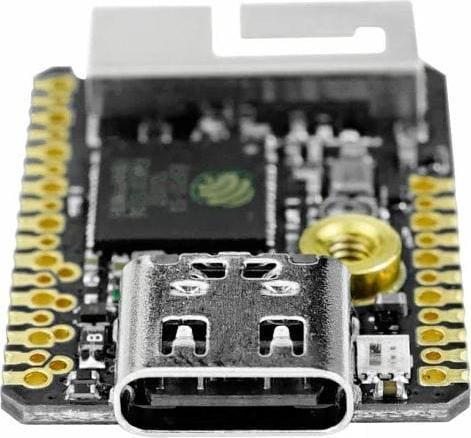

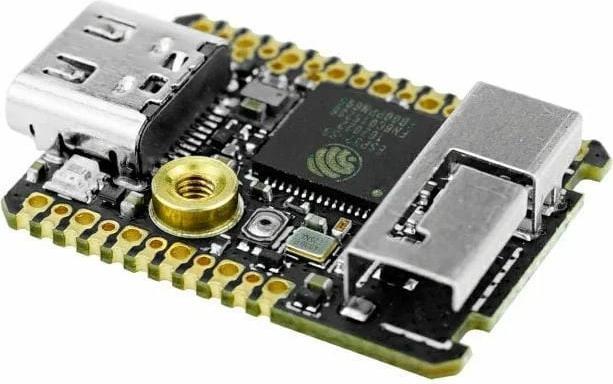

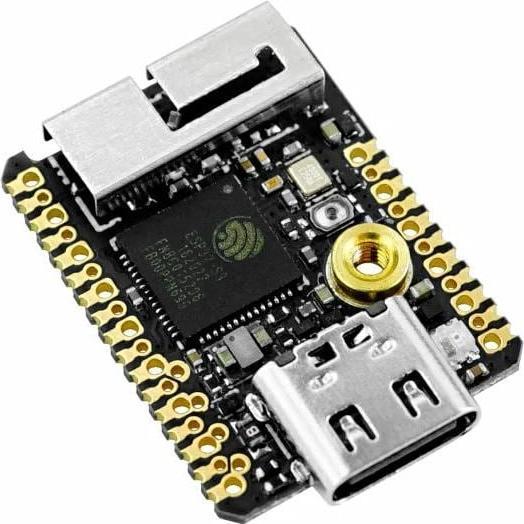

The M5Stamp ESP32S3 module is a highly integrated core module for main control in embedded systems. It uses the Espressif ESP32-S3FN8 chip with a powerful Xtensa 32-bit LX7 dual-core processor. The module offers 23 GPIOs, various connectivity options, and features compactness, performance, and low power consumption. It is ideal for IoT applications.

Features:

  • Minimal system board
  • Multi-IO feed-through, supports multiple application forms (SMT, DIP, jump wire)
  • Integrated programmable RGB LEDs and buttons
  • Supports graphical UIFlow programming

Technical details:

  • Manufacturer: M5Stack
  • Manufacturer SKU: S007
  • MCU: ESP32-S3FN8
  • Flash memory: 8MB
  • DCDC: integrated MUN3CAD01-SC
  • Input voltage: 5V
  • Antenna type: 2.4G 3D antenna
  • Module resource interface: Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter

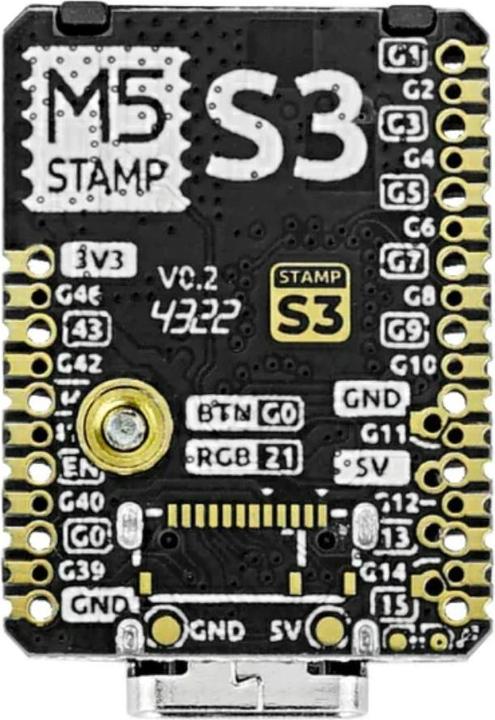

  • IO interface: G0, G1, G2, G3, G4, G5, G6, G7, G8, G9, G10, G11, G12, G13, G14, G15, G39, G40, G41, G42, G43, G44, G46

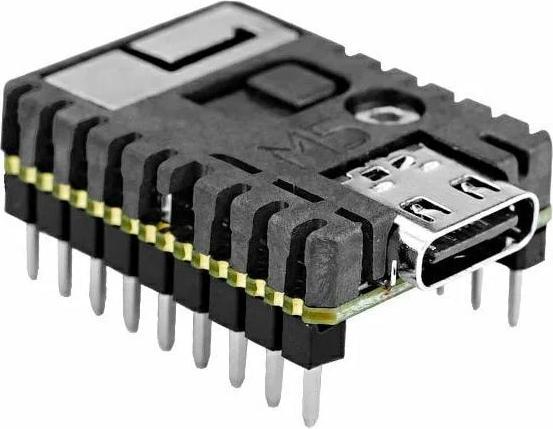

  • Connection technology: SMT, DIP (pitch 2.54mm and 1.27mm), jump wire
  • IO interface spacing: 2.54 mm, 1.27 mm
  • Operating temperature: 0 to 40°C
  • Hardware accessories: 1x programmable physical button, 1x programmable RGB LED (WS2812B-2020)

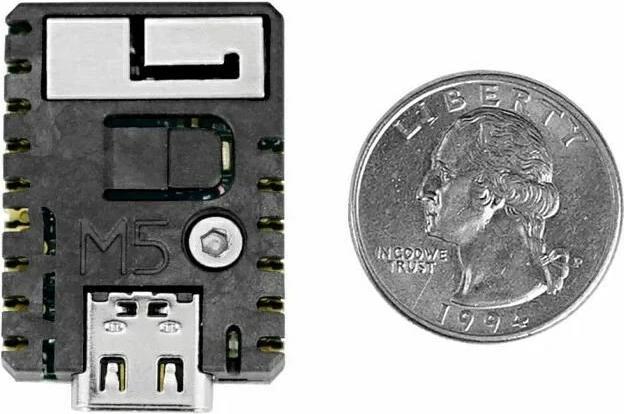

  • Dimensions: 26 x 18 x 5 mm
  • Weight: 7.7 g

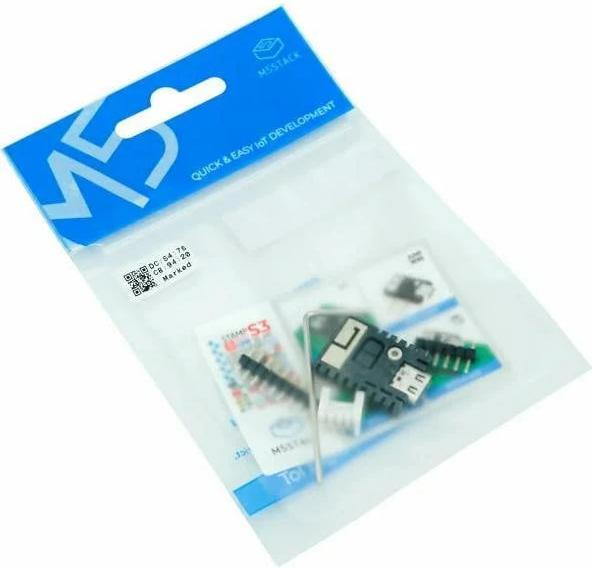

Scope of delivery:

  • 1x M5Stamp ESP32S3 module
  • 1x HY2.0-4 beech for soldering
  • 1x 9-pin male connector
  • 1x 6-pin male connector
  • 1x hexagonal spanner.

Key specifications

Development board type
Kit
Memory
8 MB
Processor type
ESP32
Number of cores
1
Item number
36511125

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Manufacturer no.
S007
Release date
2.10.2023

Target group

Target group
Adults

Development board properties

Development board type
Kit
Processor type
ESP32
Memory
8 MB
Number of cores
1
Flash memory
8000 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Wireless transmission

Wireless transmission
Wi-Fi

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 × user manual, 1 x 2.54-6P header, 1 x 2.54-9P header, 1 x hexagon spanner, 1 x HY2.0-4P terminal, 1 x stampS3

Product dimensions

Length
26 mm
Width
18 mm
Height
5.50 mm
Weight
3.20 g
