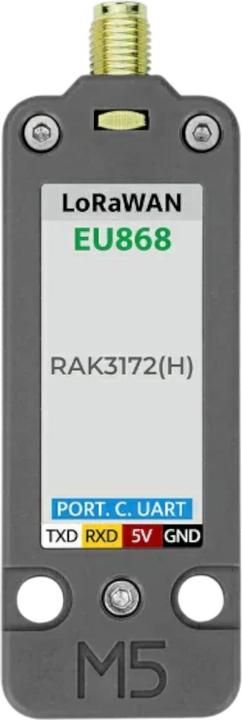

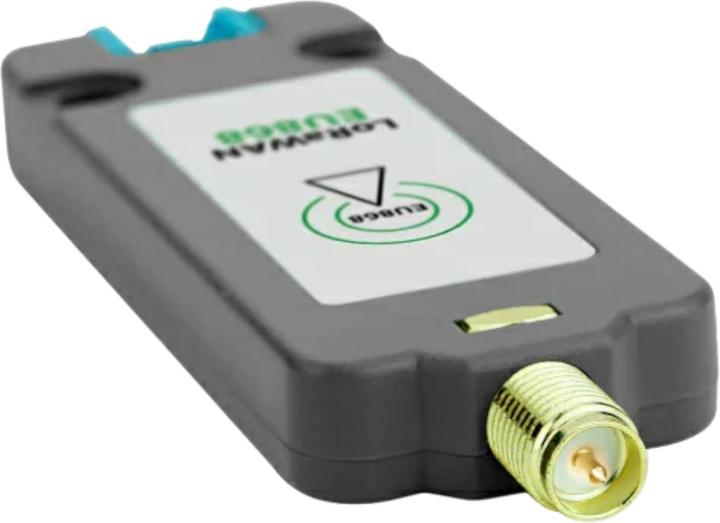

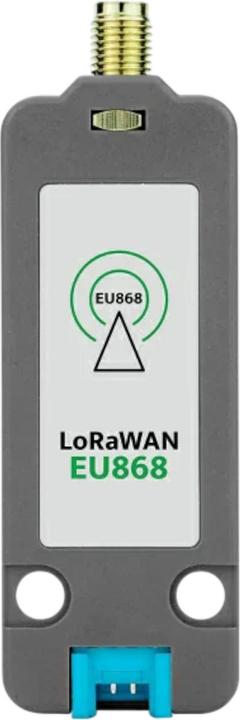

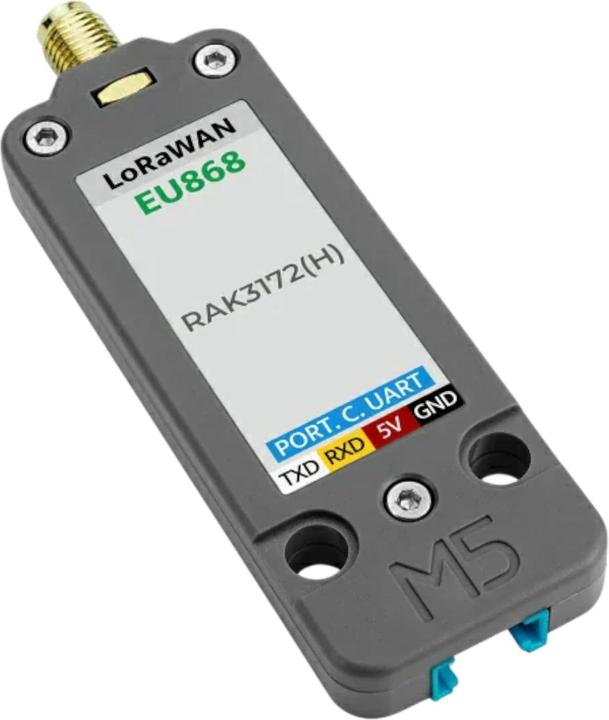

M5Stack LoRaWAN Unit EU868 mit Antenne

The M5Stack LoRaWAN Unit EU868 is a powerful communication module based on LoRa technology, specifically designed for the EU868 frequency. With the STM32WLE5 chip, it offers low power consumption, high sensitivity, and a range of up to 2.3 km in point-to-point communication. The module supports LoRaWAN protocol standards Class A, B, and C, as well as point-to-point communication. Thanks to the robust rubber antennas, it provides stable signal transmission and is ideal for applications in complex environments. Configuration is done via simple AT commands using the UART interface. The unit is perfect for IoT projects such as smart agriculture, industrial monitoring, or environmental sensing.

Features:

• Supports LoRaWAN 1.0.3: Offers flexibility through protocol classes A, B, and C.
• Efficient P2P communication: Enables data transmission over long distances without a gateway.
• High sensitivity: With a sensitivity of -137 dBm, it provides reliable communication even with weak signals.
• High-performance rubber antennas: The optimized antenna ensures stable reception and longer ranges.
• Easy connection: UART interface with support for AT commands for intuitive configuration.

Technical Specifications:

• Manufacturer: M5Stack
• Manufacturer SKU: U184-EU868
• Processor: STM32WLE5, 256 KB Flash, 64 KB RAM
• Frequency Band: EU868 (868-870 MHz)
• Sensitivity: -137 dBm
• Antenna: Rubber antennas with 2.8 dBi, 195 mm, SMA inner pin
• Communication Modes: LoRaWAN (Class A, B, C), P2P
• Range: 2300 m at 125 Kbps, 1300 m at 500 Kbps
• Power Consumption:
• Standby: 28.61 µA
• Operating: Receiving at 125 Kbps: 8.43 mA; Transmission: 117.16 mA
• Dimensions: 71.4 x 24 x 8 mm
• Weight: 39 g

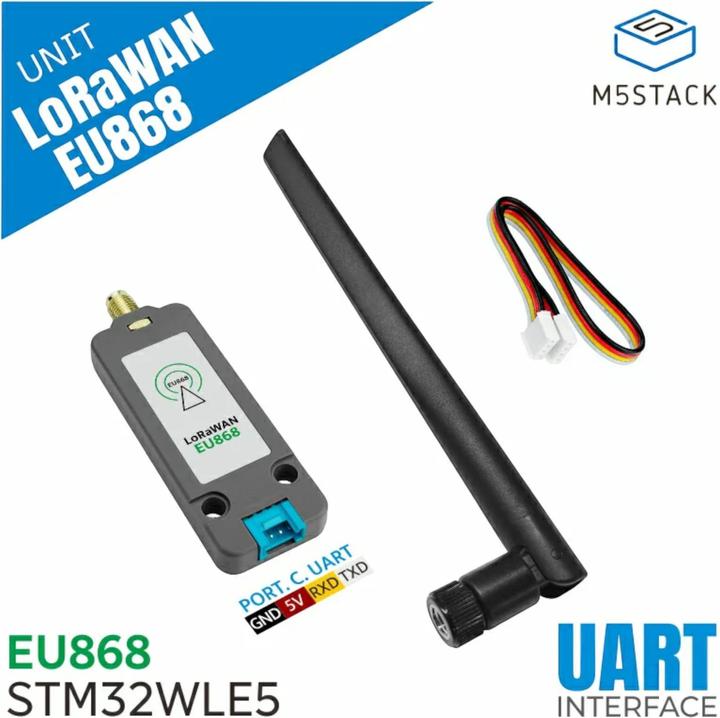

Package Contents:

• 1x M5Stack LoRaWAN Unit EU868 with antenna
• 1x HY2.0-4P cable 20 cm
• 1x High-performance rubber antenna 195 mm.
