M5Stack LoRa radio module COM.X 868 MHz V2.0 ASR6501

Com.LoRaWAN V2.0 from M5Stack is a LoRaWAN communication module from the stackable module series that supports Node-to-Node or LoRaWAN communication. The LoRaWAN module is based on the CubeCell ASR6501 and supports the 868 MHz frequency band. Thanks to its ultra-low-power design, the module consumes very little power in deep sleep mode. To facilitate pin configuration for the user, DIP switches are included for setting the serial hardware port pins. Underneath the module, there is a DC power supply socket that can be powered by an external power source, and an external antenna can be used to achieve better signal quality. This module is particularly suitable for low-power remote transmission application scenarios where low power consumption is required.

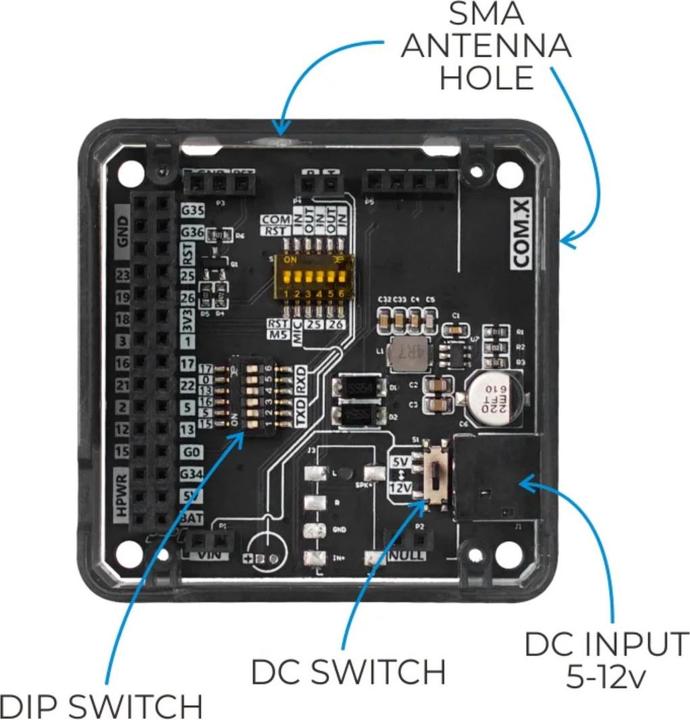

Com.LoRaWAN RXD/TXD can be connected to the M5Stack's UART by adjusting the DIP switch. Since these GPIOs in M5Stack Fire are by default connected to PSRAM, it is recommended to use any set of UART pins from the remaining two groups. The DIP switch on the right side is for the LoRaWAN module and does not need to be adjusted.

Com.LoRaWAN V2.0 Serial Settings:
Baud rate: 115200
Stop bit: 1
Data bit: 8
Parity bit: none
Terminator: none

Features of Com.LoRaWAN V2.0:

• Stackable design
• Supports LoRa/LoRaWAN
• Module based on CubeCell ASR6501
• Frequency Baud: 868MHz
• Radio LoRa chip: SX1262
• Interface: UART
• Protocol: AT command
• Compatible with Arduino
• Ultra-low-power design

Technical Details:

• Manufacturer: M5Stack
• Manufacturer SKU: M031-C4
• Frequency Baud: 868MHz
• Communication: UART
• Protocol: AT command
• Dimensions: 54.2 x 54.2 x 13.2mm
• Weight: 70g

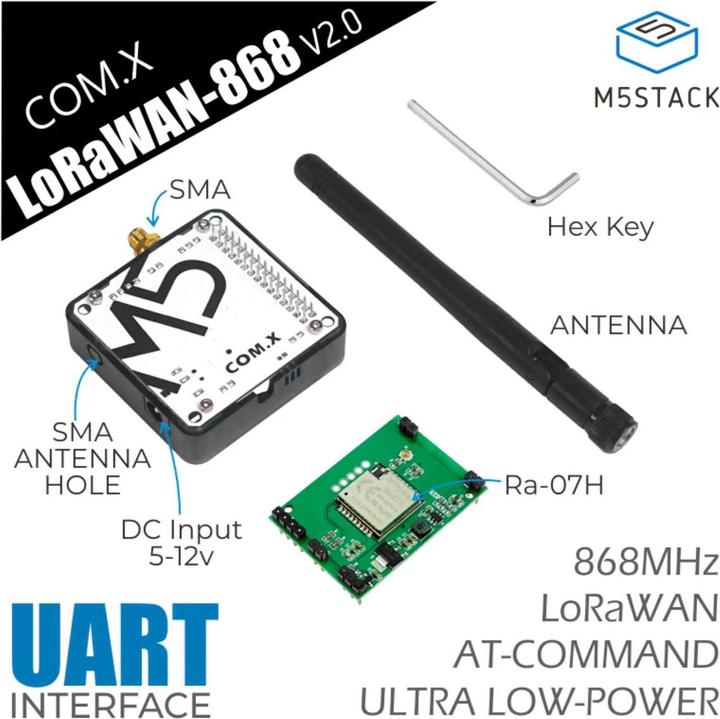

Package Contents:

• 1x M5stack COM.LoRaWAN Module 868MHz V2.0 ASR6501
• 1x SMA cable
• 1x External antenna.
