M5Stack DMX Unit

Ratings
Delivered between Fri, 27.6. and Mon, 30.6.
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

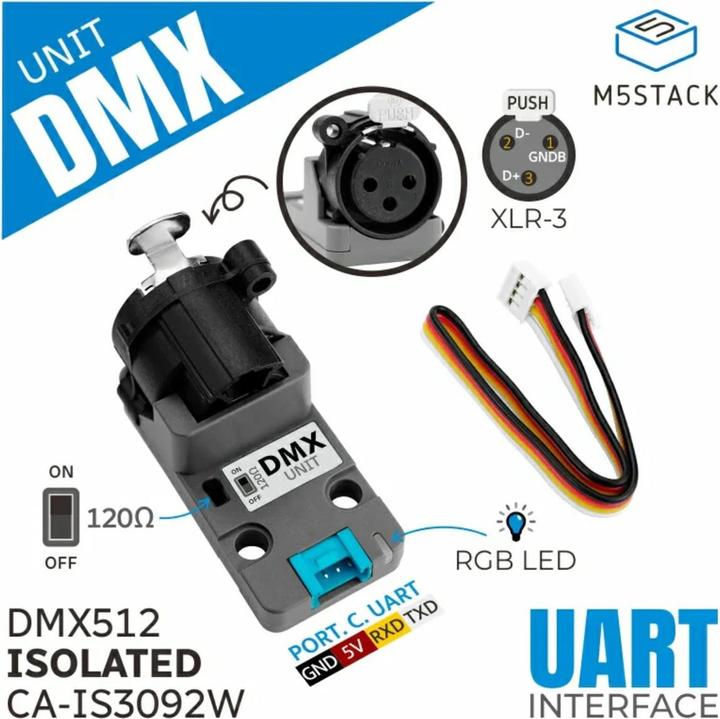

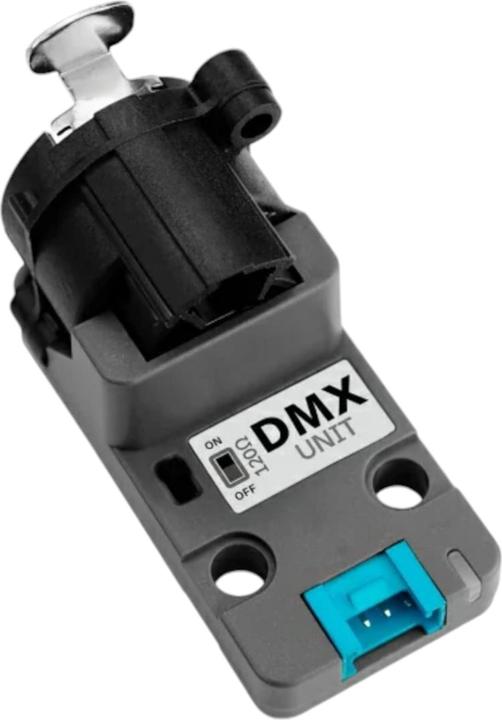

The M5Stack DMX Unit is a specialized development board designed for DMX-512 data transmission. It enables easy and reliable control of DMX devices, such as stage and decorative lighting systems. Equipped with an isolated RS-485 transceiver, the DMX Unit offers electrical isolation of up to 5kVrms, ensuring protection against electrical disturbances and optimizing signal transmission. The integrated XLR-3 socket allows for straightforward connection to standardized DMX devices, while the built-in 120Ω termination resistor ensures that signals are transmitted clearly and stably, without reflections or distortions. Additionally, the DMX Unit can be easily connected to the M5Stack Core via the Grove interface, enabling quick and efficient control through serial communication. This unit is ideal for anyone seeking a reliable solution for controlling lighting systems.

  • Isolated RS-485 transceiver with up to 5kVrms electrical isolation

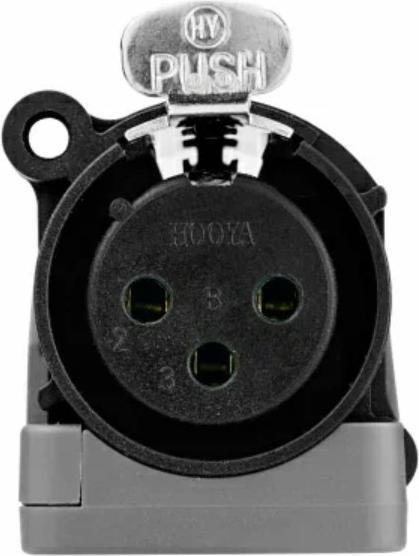

  • Easy connection to DMX devices via XLR-3 socket
  • 120Ω termination resistor for clear and stable data transmission
  • Grove interface for straightforward integration with M5Stack Core.

Key specifications

Item number
49266314

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
11.9.2024

Connections

Max. port speed
0.50 Mbit/s

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x HY2.0-4P Grove cable 20cm, 1x M5Stack DMX Unit

Product dimensions

Length
40 mm
Width
48 mm
Height
25 mm
Weight
20 g

30-day right of return
24 Months Warranty (Bring-in)
