M5Stack DDS Unit AD9833 programmable waveform generator

Ratings
Delivered between Mon, 23.6. and Tue, 24.6.
8 items in stock at third-party supplier
Supplied by

Product details

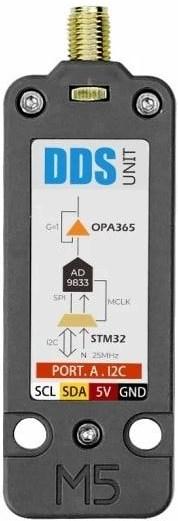

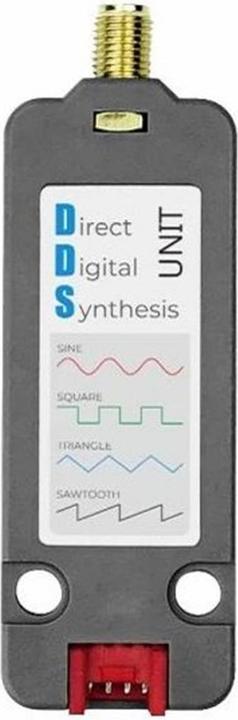

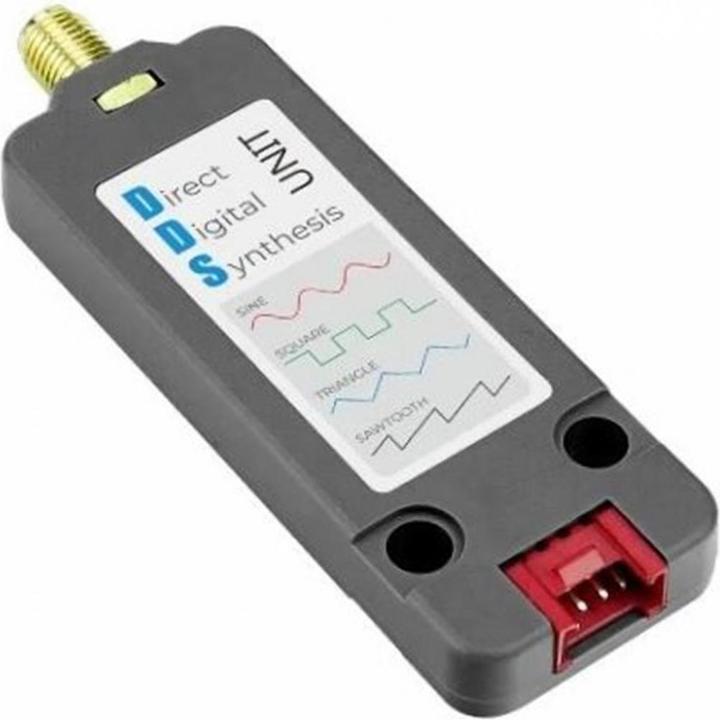

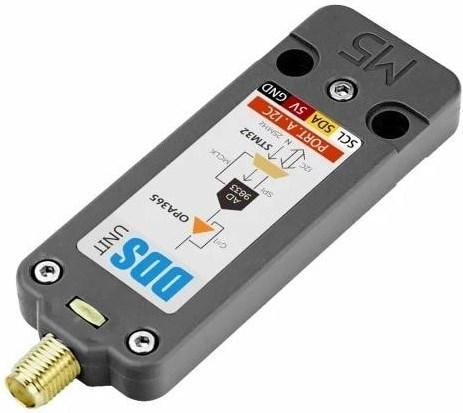

The DDS Unit from M5Stack is a signal generator. It utilizes the programmable waveform generator AD9833 and a STM32F0 microcontroller. Based on the I2C communication interface, the signal source can be easily controlled to produce various signals such as sine wave, triangle wave, square wave, or sawtooth wave. The signal output amplitude can be set between 0 to 0.6 V.

Features:

  • Frequency and phase digitally programmable
  • Signal output amplitude selectable from 0 to 0.6 V
  • Sine wave, triangle wave, square wave, sawtooth wave
  • Output frequency range from 0 MHz to 1 MHz
  • 28-bit frequency resolution
  • 11-bit phase resolution

Technical Details:

  • Manufacturer: M5Stack
  • Manufacturer SKU: U105
  • Chip: AD9833
  • Supported waveforms: Sine wave, triangle wave, square wave, sawtooth wave
  • Signal output amplitude: 0 to 0.6 V
  • Output frequency range: 0 MHz to 1 MHz (10 MHz based on the reference clock)
  • Frequency resolution: 28-bit
  • Phase resolution: 11-bit

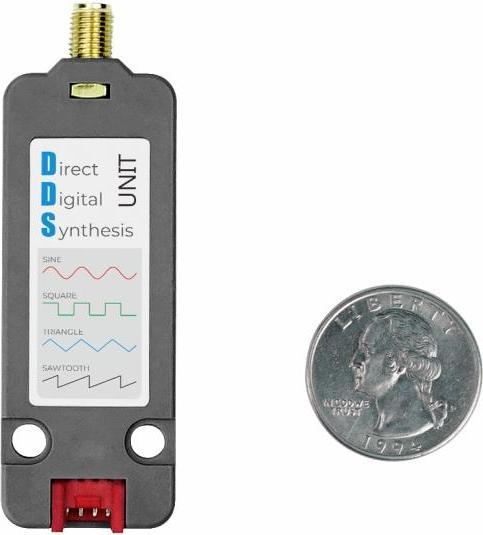

  • Dimensions: 71 x 24 x 8 mm
  • Weight: 35 g

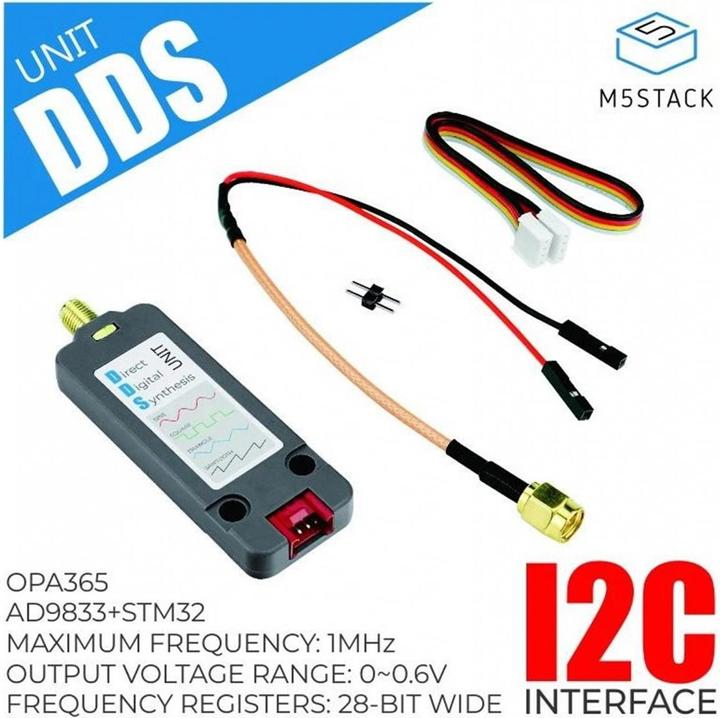

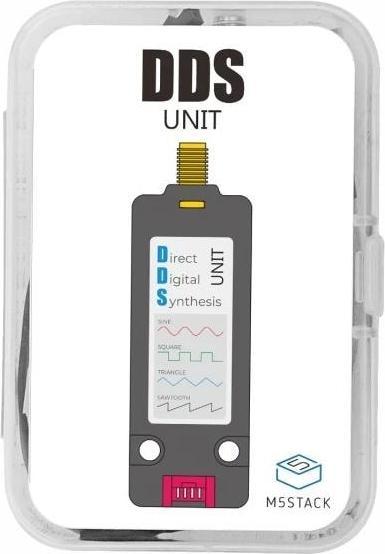

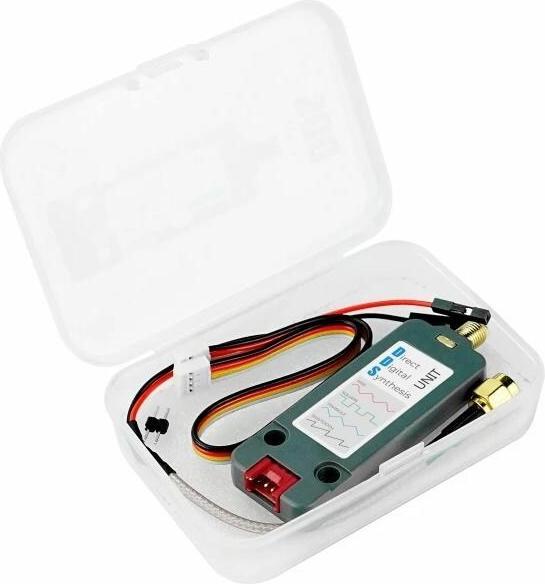

Included in the package:

  • 1x M5Stack DDS Unit AD9833 Signal Generator
  • 1x HY2.0-4P Cable
  • 1x SMA-2.54 mm Cable.

Key specifications

Item number
16229318

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Manufacturer no.
U105
Release date
6.7.2021
External links
Manufacturer's site (de)

Target group

Target group
Adults, Youth

Power supply

Operating voltage
0.60 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
DDS Unit, HY2.0-4P cable, SMA 2.54 mm cable

Product dimensions

Length
71 mm
Width
24 mm
Height
8 mm
Weight
11.10 g
