M5Stack COM.LTE-DATA Module A7600C1

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

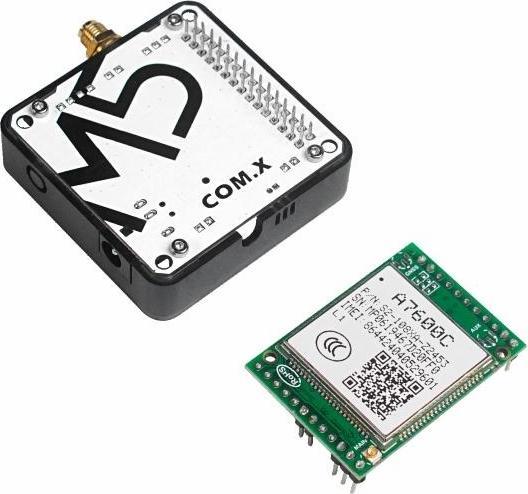

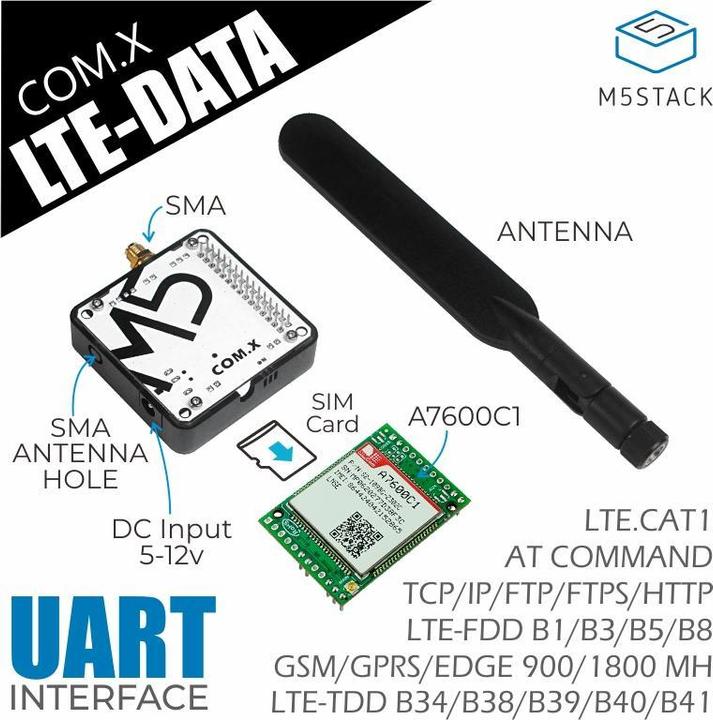

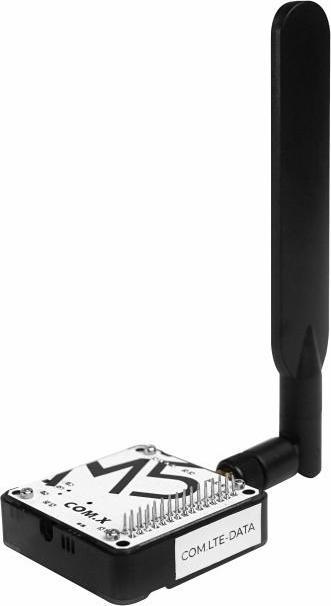

This is an LTE radio module from the stackable module series, featuring a built-in A7600C1 communication module. The supported frequency bands include LTE-TDD, LTE-FDD, EDGE, GPRS, and GSM, with a transmission rate that complies with the LTE.CAT1 standard. The module has a DC power input and can be powered by an external power supply ranging from 5V to 12V. To facilitate pin configuration for the user, DIP switches are included for setting the serial hardware port pins.

Technical Details:
Manufacturer: M5Stack
Manufacturer SKU: M031-E
Frequency Bands:
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B3/B5/B8
GSM/GPRS/EDGE 900/1800 MHz
Network Protocol: TTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Upload (LTE Cat1): 5 Mbps
Download (LTE Cat1): 10 Mbps
Communication: UART 115200 bps
SIM Card: MicroSIM
Dimensions: 54.2 x 54.2 x 13.2 mm
Weight: 84 g

Included in the package:
1x M5Stack COM.LTE-DATA Module A7600C1
1x SMA Antenna.

Key specifications

Clock speed
115200 MHz
Item number
24888872

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
25.3.2023

Development board properties

Clock speed
115200 MHz

Power supply

Power supply
Electrical connection
Operating voltage
12 V

Connections

Memory card type
microSD

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x M5Stack COM.LTE-DATA module A7600C1

Product dimensions

Length
54.20 mm
Width
54.20 mm
Height
13.20 mm
Weight
84 g
