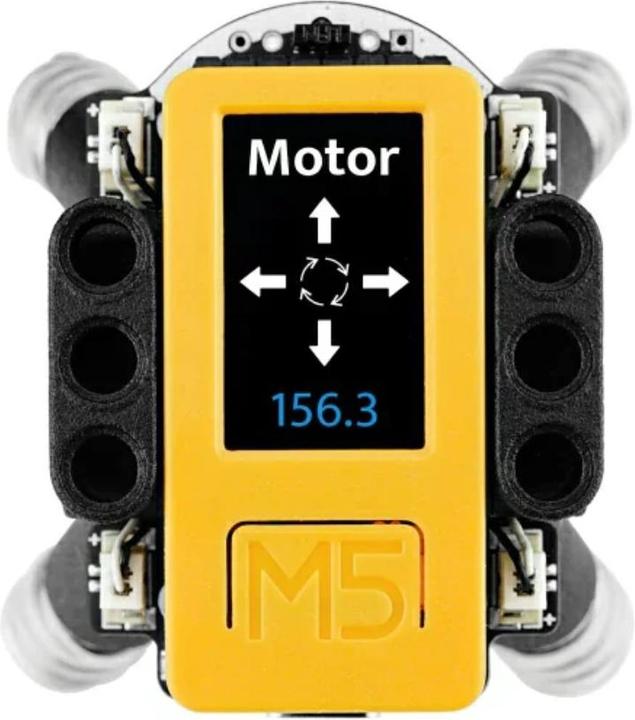

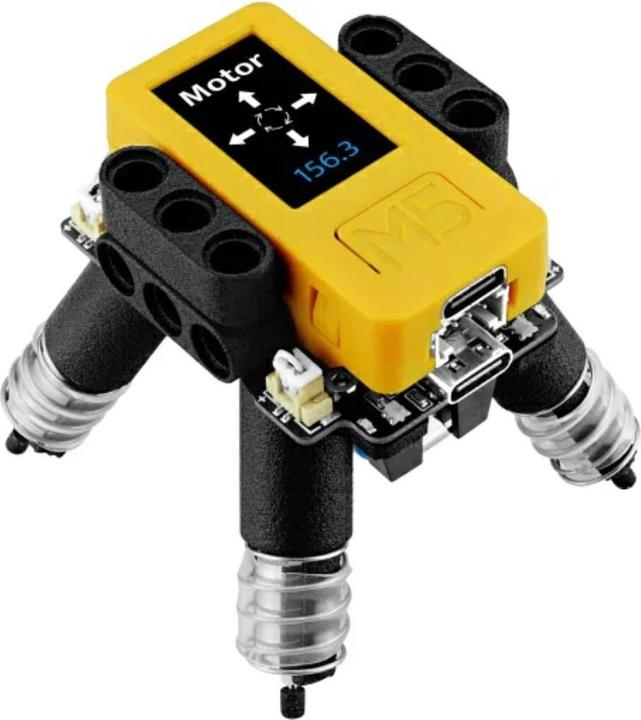

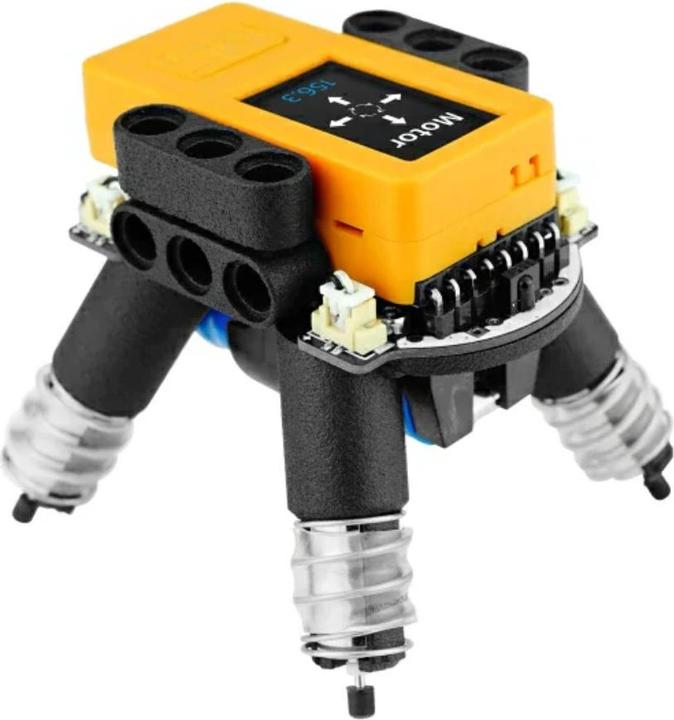

M5Stack BugC2 with M5StickC PLUS2

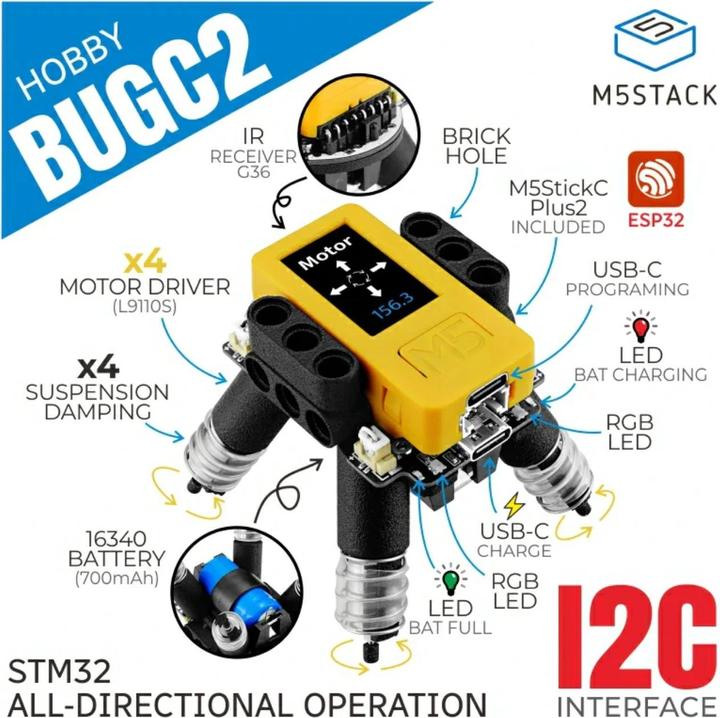

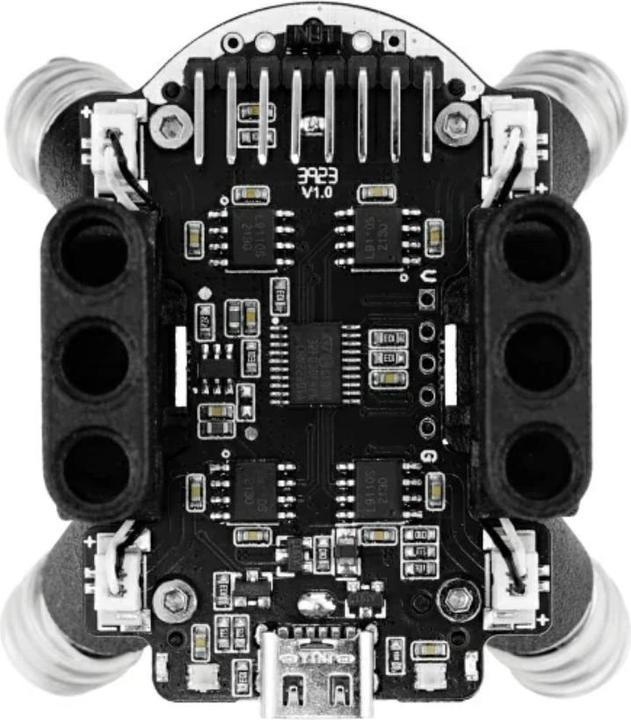

Experience innovative technology and fun with the M5Stack BugC2 robot combined with the M5StickC PLUS2. This programmable robot base set is ideal for educational and recreational projects. Equipped with an STM32F030F4 as the core control chip and four L9110S motor drivers, the BugC2 provides an excellent foundation for mobile applications. The integrated programmable RGB LEDs and the infrared encoder allow for various control and display options, while the dedicated battery holder with a powerful 700mAh lithium battery ensures long runtimes. The connection of the M5StickC PLUS2 is conveniently realized through the pin headers on the top, ensuring easy communication via the I2C protocol. Additionally, the set features a Type-C charging port and protection against battery polarity reversal as well as voltage detection for enhanced safety.

Features:

• Programmable robot base with easy control via M5StickC PLUS2
• Four L9110S motor drivers for reliable movement
• Two flexible programmable RGB LEDs
• Infrared encoder for versatile control options
• Integrated Type-C charging port and battery protection functions

Application Examples:

• Educational projects in schools and universities
• DIY robot projects for hobbyists
• Development of prototypes for industrial automation systems
• Toys and learning tools for children
• Experiments with wireless control and motion simulation

Technical Specifications:

• Manufacturer: M5Stack
• Manufacturer SKU: K033-C
• Motor Drive: L9110S
• Infrared Receiver: SL0038GD
• RGB: WS2812C-2020
• Battery Capacity: 700mAh (Type 16340)
• Standby Current: Average DC4.2V/20.8µA
• Operating Current: Average DC4.2V/285.1mA
• IR Detection Distance: Up to 560cm at 180°, 400cm at 90°
• Operating Temperature: 0-40°C
• Dimensions: 55mm x 40mm x 25mm
• Weight: 88g

Included in Delivery:

• 1x M5Stack BugC2 with M5StickC PLUS2
• 12x Rubber feet.
