M5Stack ATOMIC CAN Base, CA-IS3050G, 1Mbps, DC-DC Isolation, Kompatibel mit ATOM Serie

The ATOMIC CANBus Base from M5Stack is a compact CAN bus communication unit specifically designed for use with ATOM series controllers. The module is based on the CA-IS3050G transceiver and enables reliable CAN bus communication with transmission rates of up to 1 Mbps. Thanks to the integrated DC-DC converter with galvanic isolation, interference is effectively isolated, protecting sensitive circuits from damage. The communication bus supports up to 110 nodes, providing excellent scalability for large networks. The common-mode voltage ranges from -12V to +12V, making the module robust against voltage fluctuations. Various protection features such as overvoltage protection, error-checking protection, and over-temperature protection ensure safe operation. The low loop delay of just 150 ns guarantees fast signal processing. The module is compatible with Atom Matrix, Atom Lite, AtomS3, and AtomS3 Lite. The external connection is made via a VH3.96-4P connector, which is included in the package. The robust polycarbonate housing reliably protects the electronics.

Recommended Accessories:
M5Stack AtomS3 Dev Kit with 0.85-inch color display
M5Stack AtomS3 Lite

Technical Specifications:
Manufacturer: M5Stack
Manufacturer SKU: A103
CAN Transceiver: CA-IS3050G
Maximum Transmission Rate: 1 Mbps
Supported Nodes: 110
Loop Delay: 150 ns
Common-Mode Voltage: -12V to +12V

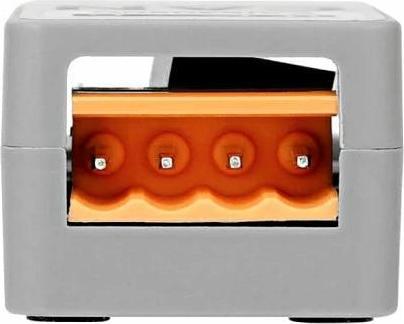

External Connection: VH3.96-4P
Operating Temperature: 0°C to 40°C
Housing Material: Polycarbonate (PC)
Product Dimensions: 24 × 48 × 18 mm
Product Weight: 11.1 g
Packaging Dimensions: 140 × 105 × 28 mm
Gross Weight: 16 g

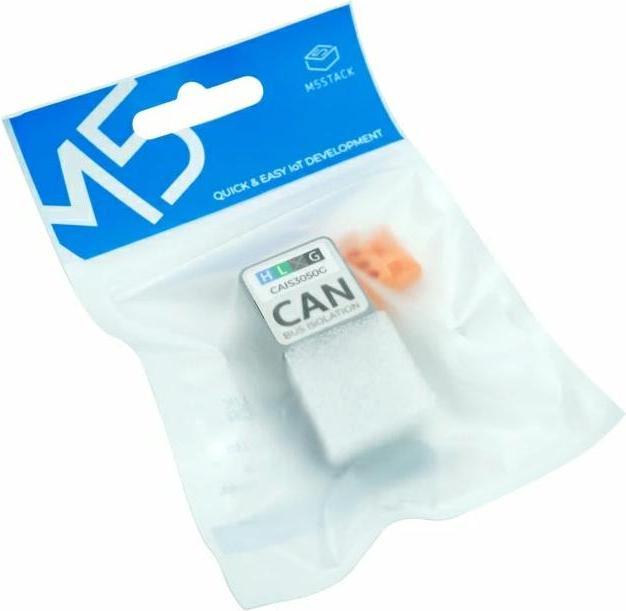

Delivery Contents:
1× ATOMIC CANBus Base
1× VH3.96-4P Connector.
