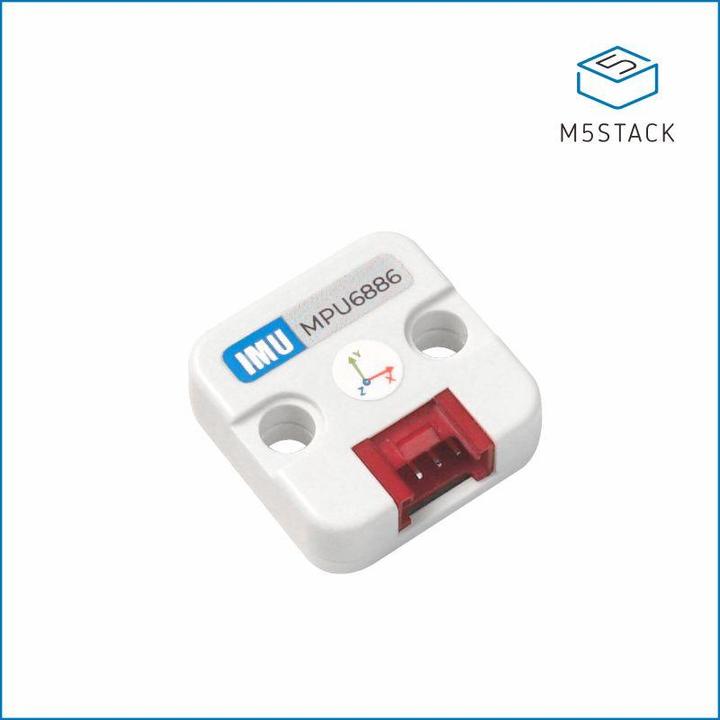

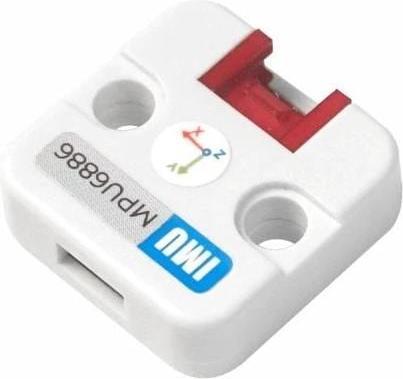

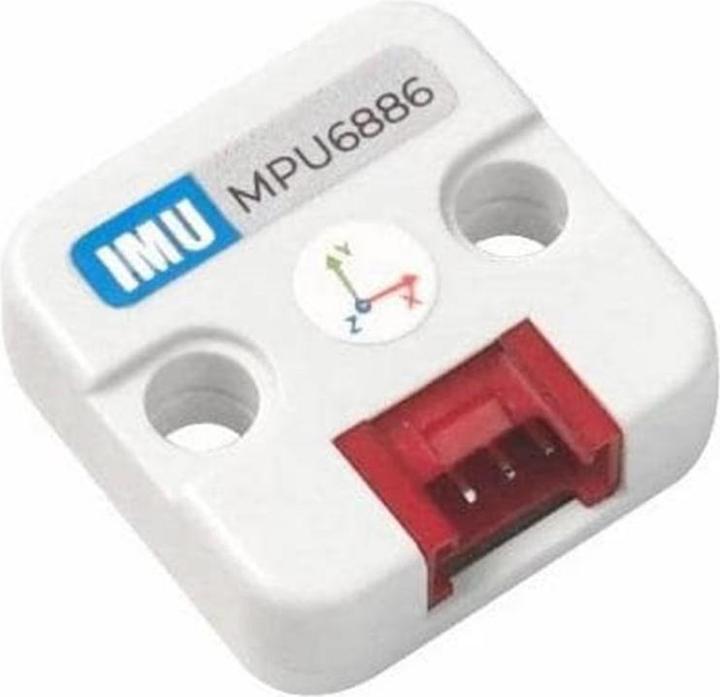

M5Stack 6-Axis IMU Unit (MPU6886)

This 6-axis IMU unit from M5Stack is a 6-axis orientation sensor featuring a 3-axis accelerometer and a 3-axis gyroscope, capable of calculating tilt angles and acceleration in real-time. The chip uses an MPU6886, with a 16-bit ADC converter, an integrated programmable digital filter, and an on-chip temperature sensor. Communication is done via the I2C interface and supports low-power mode.

M5Stack MPU6886 Unit Features:

• 3-axis accelerometer
• 3-axis gyroscope
• On-chip temperature sensor
• 1KB FIFO

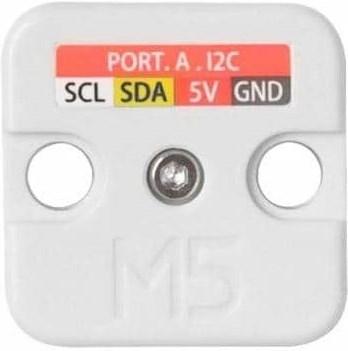

• I2C communication via address 0x68
• Supports low power consumption
• LEGO-compatible mounting holes
• Supported development platforms: UIFlow, MicroPython, Arduino

Technical Details:

• Manufacturer: M5Stack
• Manufacturer SKU: U095
• Accelerometer range: ±2g, ±4g, ±8g, or ±16g
• Accelerometer noise: 100 μg/√Hz
• Gyroscope range: ±250, ±500, ±1000, or ±2000 degrees per second
• Gyroscope sensitivity error: 1%
• Gyroscope noise: ±4 mdps/√Hz
• Operating voltage: 1.71V to 3.45V

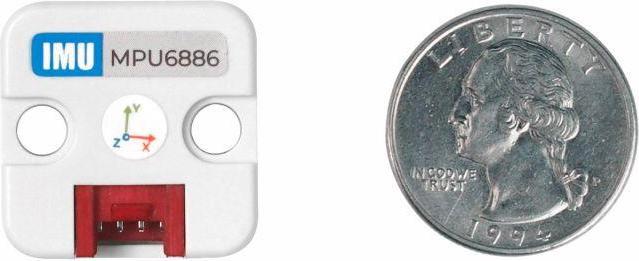

• Dimensions: 24 x 24 x 13mm
• Weight: 9g

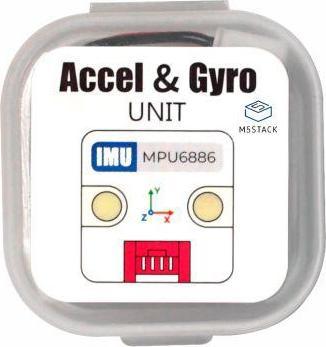

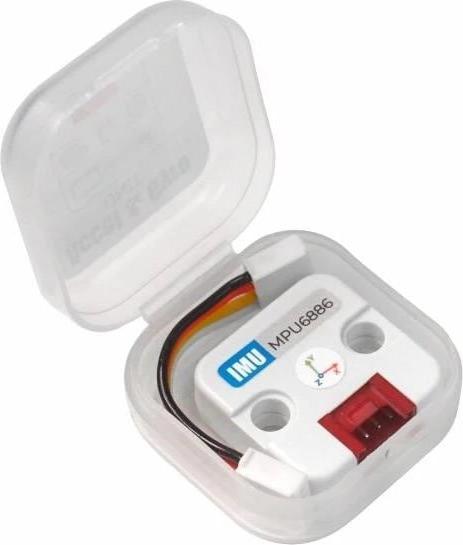

Included in the package:

• 1x M5Stack 6-Axis IMU Unit MPU6886
• 1x Grove cable 50cm.
