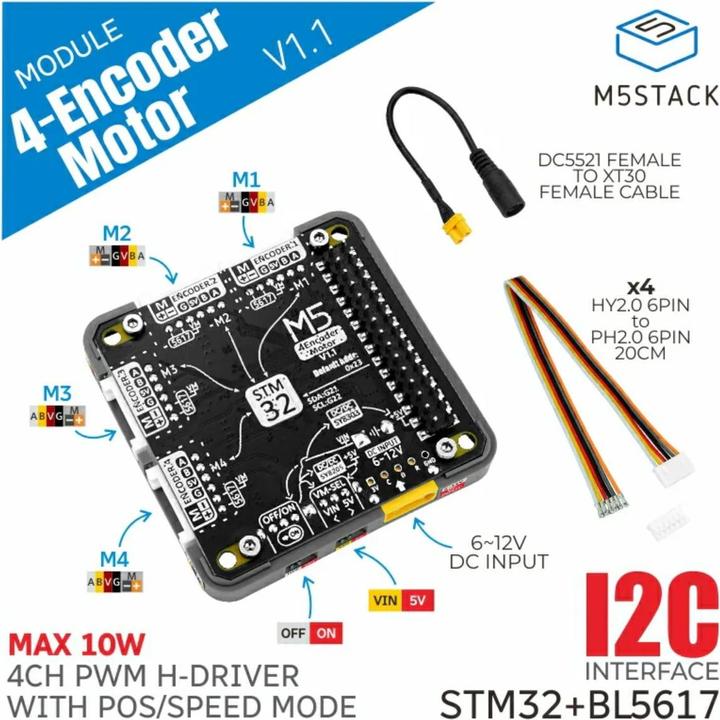

M5Stack 4-channel Encoder Motor Driver Module V1.1

The M5Stack 4-Channel Encoder Motor Driver Module V1.1 is an advanced motor control solution specifically designed for precise control of motors in various applications. Based on the powerful STM32 processor and the BL5617 H-bridge driver, this module allows for the simultaneous control of up to four motors. Support for AB pulse encoder signals ensures accurate position and speed measurements, making it ideal for robotic motion control and automated systems. The flexible I2C communication enables easy adjustment of the slave address, facilitating integration into existing systems. Additionally, the module offers various control modes, including speed regulation and direction reversal, to meet the specific requirements of the application. An integrated current and voltage monitor allows for real-time monitoring, enhancing the safety and efficiency of the application. The optimized interface improves handling and reliability compared to previous models.

• 4-channel motor control for simultaneous control of four motors
• Support for AB pulse encoders for accurate position and speed measurement
• Versatile control modes: speed regulation, absolute position control, and direction reversal
• Integrated current and voltage monitor for real-time monitoring
• Optimized interface for improved handling and reliability.
