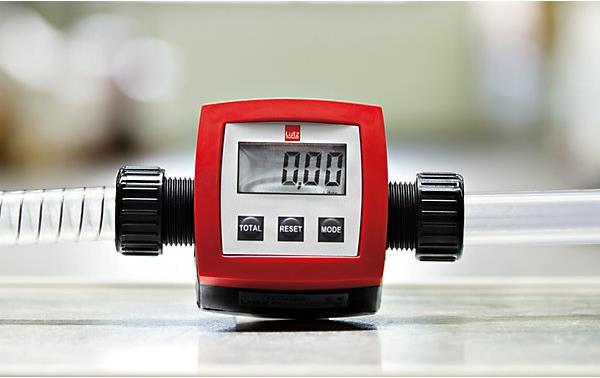

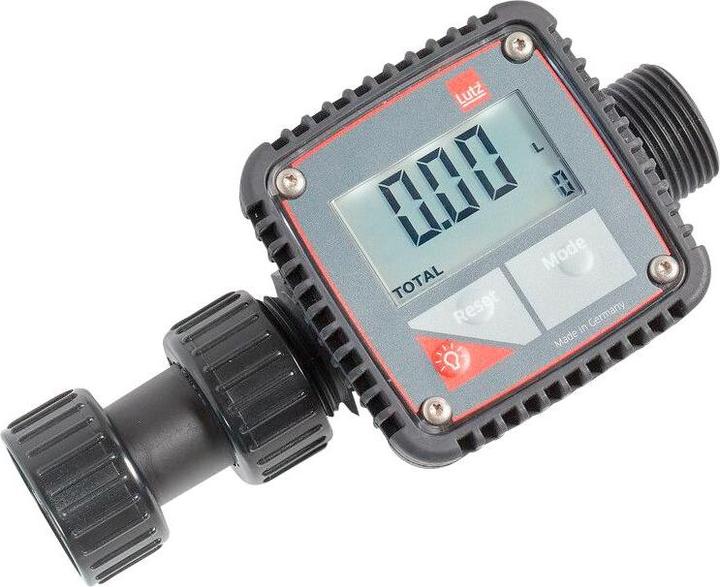

Lutz Flow meter PP

This flow meter, available either with a G 1 inch connection thread or a G 1 ¼ inch connection thread, serves as an accessory for the container pump set to accurately measure liquid extraction. It provides quick and particularly precise measurement results. Weighing only 0.3 kg, the flow meter is made of PP/PTFE and offers a measurement range of 5 to 120 liters per minute. It operates with exceptional precision, achieving a measurement accuracy of +/- 1% at a maximum pressure of 10 bar. Additionally, it features high repeatability, with a repeatability accuracy of +/- 0.5 percent. The permissible temperature range is between -10 to +50 degrees. The flow meter also meets the IP 65 protection rating. Further details: Available with either a G 1 inch or G 1 ¼ inch connection thread, IP 65 protection rating, measurement range: 5 to 120 l/min, viscosity range: 0.8 – 40 mPas, max. operating pressure: 10 bar (at 20 degrees), measurement accuracy: +/- 1%, repeatability accuracy: +/- 0.5%, temperature range: -10 to +50 degrees, material: PP/PTFE, weight: 0.3 kg.
