Luckfox Pico Pi A W RV1106 Linux Micro Entwicklungsboard

Ratings
BrandMore from Luckfox
Delivered Mon, 18.5.
7 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The Luckfox Pico Pi A W is a compact and versatile Linux development board based on the powerful RV1106G3 SoC. The integrated ARM Cortex-A7 processor running at 1.2 GHz ensures stable performance while maintaining low power consumption. With its 1-TOPS NPU, the board is ideally suited for AI and image processing applications. It supports H.264/H.265 video encoding and can drive cameras up to 5 MP at 30 fps, making it an ideal platform for multimedia and edge computing projects. Unlike the Pico Pi A, the A W version additionally features built-in Wi-Fi 6 and Bluetooth 5.2/BLE, significantly facilitating wireless communication and IoT integration. With 8 GB of eMMC storage, 256 MB of DDR3L RAM, as well as PoE and GPIO support, the board opens up numerous possibilities in the fields of smart devices, research, and prototyping.

Technical Specifications:
Manufacturer: Luckfox
Manufacturer SKU: 30619
SoC: RV1106G3
Processor: ARM Cortex-A7, 1.2 GHz
NPU: 1 TOPS, supports int4, int8, int16
Video Encoding: H.264 / H.265
ISP: up to 5 MP @ 30 fps Input
Memory: 256 MB DDR3L RAM, 8 GB eMMC
Wi-Fi & Bluetooth: Wi-Fi 6, Bluetooth 5.2 / BLE
Ethernet: 10/100 Mbps, IEEE 802.3af PoE
Connectivity: Nano-SIM slot, 4G M.2 module slot, MIPI CSI camera port
Audio: Surface-mount microphone, microphone extension port, 3.5 mm output
USB: 1× USB Device, 4× USB Host 2.0
RTC: 1× RTC Port (SH1.0-2P)
GPIO: Raspberry Pi 40-Pin compatible
Dimensions: 158 × 108 × 30 mm
Weight: 92 g

Package Contents:
1x Luckfox Pico Pi A W RV1106 Linux Micro Development Board

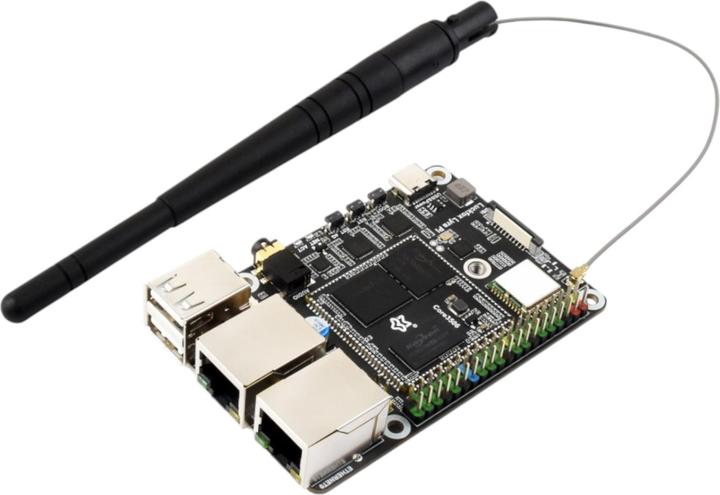

1x Wi-Fi Antenna
2x M.2 SSD screws.

Key specifications

Processor family
ARM
Processor type
Cortex-A7
Clock speed
1200 MHz
Working memory
256 MB

General information

Item number
61932161
Manufacturer
Luckfox
Category
Single board computer kits
Release date
9.9.2025

Development board properties

Processor family
ARM
Processor type
Cortex-A7
Clock speed
1200 MHz
Working memory
256 MB

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Connections

Audio Connections
Microphone
Memory card type
MMC
Additional connections
SIM slot

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 2.25

Scope of delivery

Scope of delivery
1x Luckfox Pico Pi A W RV1106 Linux Micro development board, 1x Wi-Fi antenna, 2x M.2 SSD screws

Product dimensions

Length
30 mm
Width
158 mm
Height
108 mm
Weight
92 g
