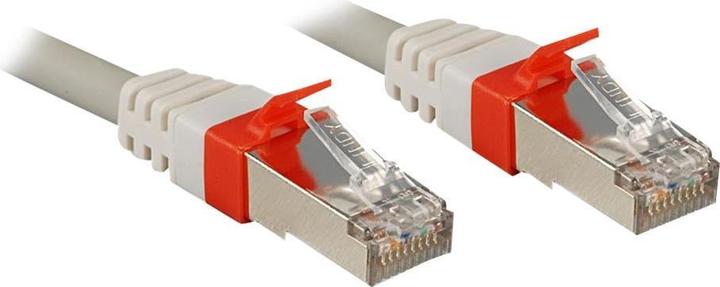

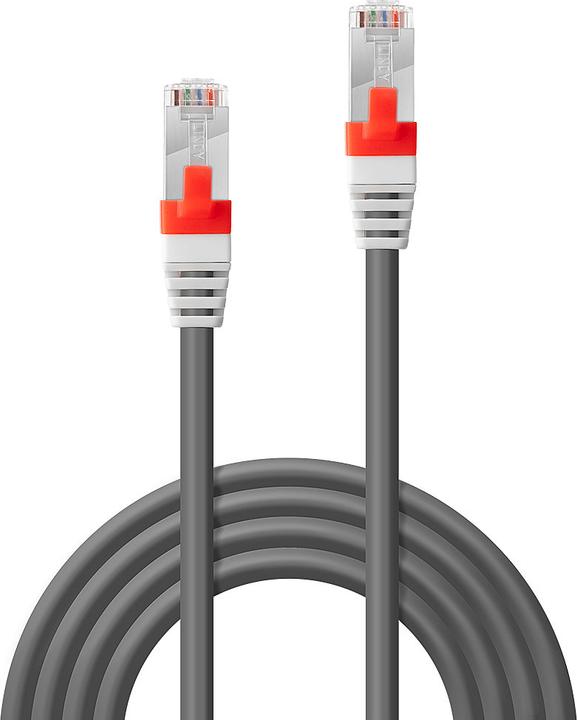

Lindy Network cable

S/FTP, CAT6a, 10 m
3.01 CHF/1m

Cable category

Colour

Length

Shield

Product details

S/FTP LSZH patch cable, Cat.6A (500MHz) in snagless design with gold-plated contacts. For Ethernet up to 10GBase-T. Cat 6A cable, shielded with braiding as overall shield and foil shield for the individual
wire pairs (S/FTP). With its operating frequency of up to 500 MHz, the cable meets the requirements of 10 Gigabit Ethernet (10GBaseT). It has been manufactured and tested according to the guidelines of the ISO/IEC 11801 specification. The cables are individually packed in a polybag. The gold-plated contacts ensure reliable, corrosion-free plug connections over very long periods of time. The snagless clip protection prevents the snap-in clip on the plug (jack protection) from breaking or tearing off. This allows the cables to be stored and processed without the clips getting caught in each other. The halogen-free sheath material of the cable, which is designed as an LSZH cable, makes the product suitable for use in public spaces with its low smoke emission and completely eliminated emission of toxic halogens.

Key specifications

Patch cable type
Copper cable
Contact assignment
straight
Item number
3517035

General information

Manufacturer
Category
Manufacturer no.
45357
Release date
2/10/2015
Maximum order quantity
8

Colour

Cable colour
Grey

Material

Specific material description
Low Smoke Zero Halogen (LSZH)
Material of the isolation
LSZH

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable design
Low Smoke Zero Halogen (LSZH)
Plug type
Gold-plated contacts
American Wire Gauge (AWG)
26

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Halogen-free
Handle protection

Twisted-pair cable properties

Cable category
CAT6a
Contact assignment
straight
Shield
S/FTP

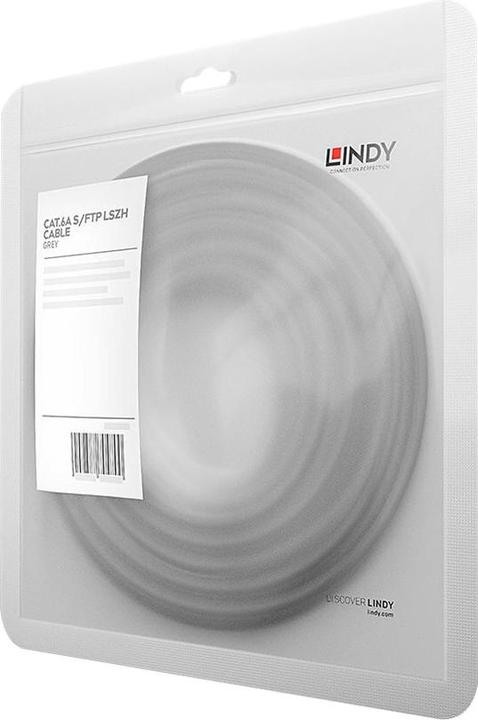

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
10 m
Depth
10000 mm

Package dimensions

Length
19 cm
Width
19 cm
Height
4 cm
Weight
396 g

30-day right of returnReturn policy
24 Months Bring-in WarrantyWarranty provisions

Reviews & Ratings
