Lilygo TTGo T-Weigh ESP32 4x Weight Sensor LoRa Node

Ratings
Delivered between Mon, 12.5. and Tue, 13.5.
5 items in stock at third-party supplier
Supplied by

Product details

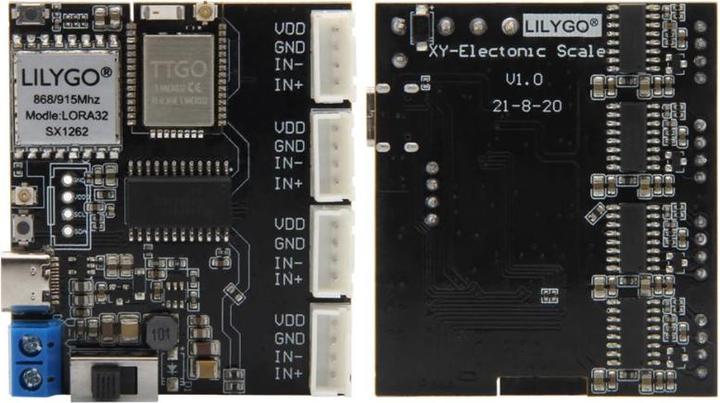

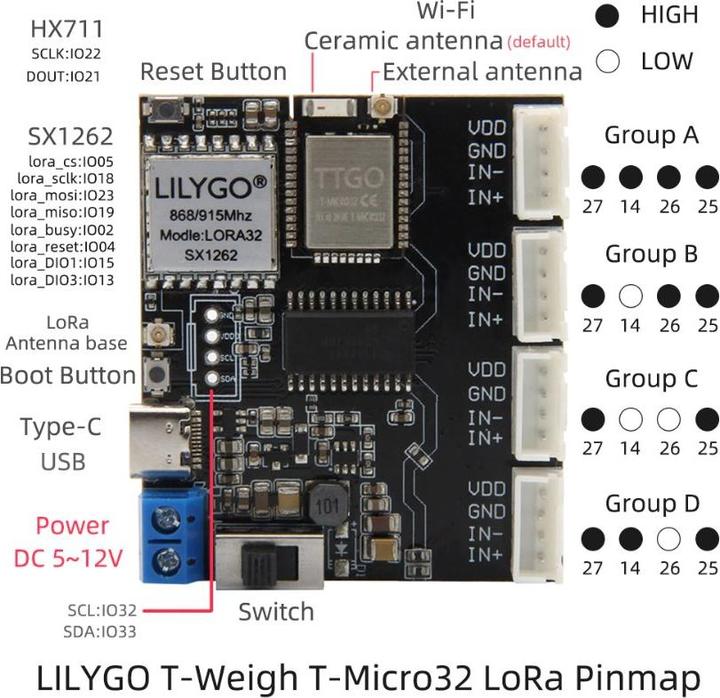

This is a LoRaWAN weight sensor node based on the ESP32 from LilyGo. With this module, you can read data from up to four external weight sensors via the LoRa network. Thanks to the ESP32, the board has Wi-Fi and Bluetooth connectivity. The weight sensors are connected via a 4-pin (2.54 mm) connector. The board can communicate through all common interfaces such as I2C, SPI, UART, and I2S. The module is powered via a crimp terminal with 5-12V. Programming is done through a USB-C port.

Note: Since the module does not have a USB to Serial chip, you will need a T-U2T USB to TTL adapter for programming. If you have already purchased this along with another display, you can certainly use it for this one as well. The T-U2T USB to TTL automatic downloader is not included with the display. Additionally, the weight sensors are not included and must be purchased separately.

Recommended Accessories:
LilyGo TTGO T-U2T USB to TTL Programmer CH9102
Weight Sensor

Features:
ESP32 with Wi-Fi and Bluetooth connectivity
Up to 4x external weight sensors
USB-C
LoRaWAN V1.0.3 Class A Protocol
Reset and Boot Button
Slide Switch for Selection

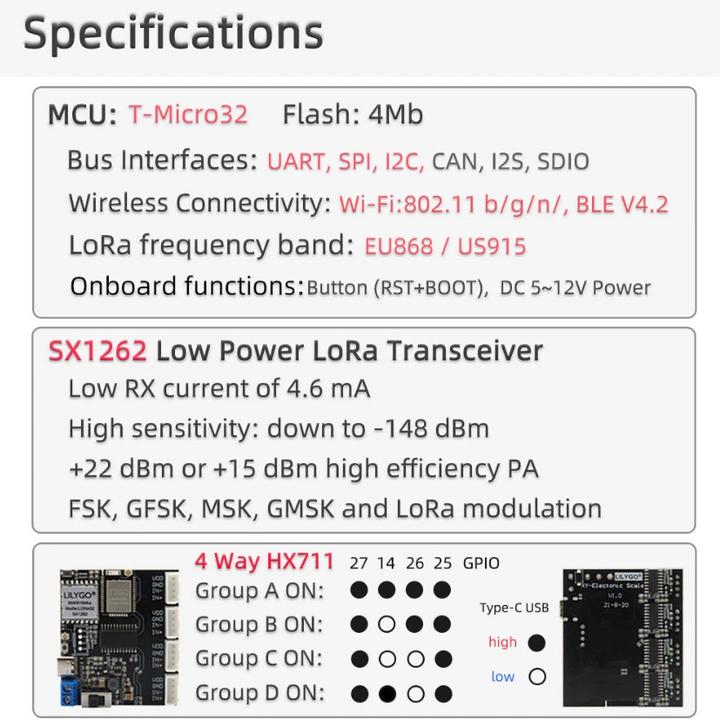

Technical Details:
Manufacturer: LilyGo
Manufacturer SKU: H522
Voltage: 5-12V DC
MCU: T-Micro32
Flash: 4MB
LoRa Chip: SX1262
LoRa Frequency: 868MHz
Max Transmission: +22 dBm
Sensitivity: -148 dBm
Protocol: v1.0.3 Class A
Bluetooth: v4.2
Wi-Fi: 2.4GHz
Interfaces: I2C, SPI, UART, CAN, I2S, SDIO

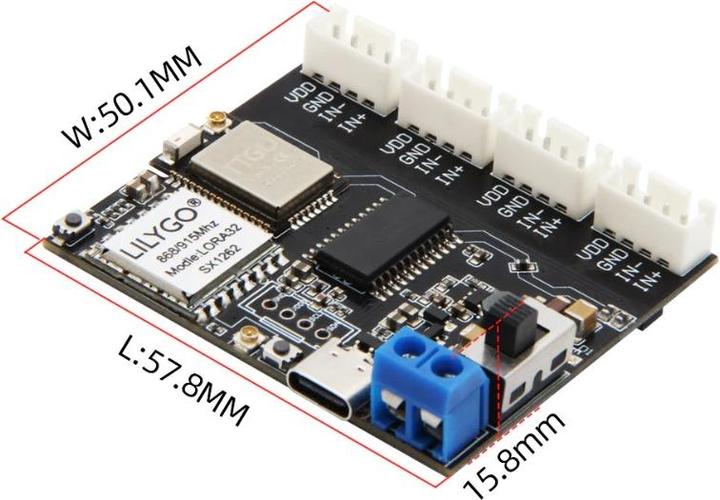

Dimensions: 58 x 50 x 15 mm
Weight: 27 g

Package Includes:
1x LilyGo TTGo T-Weigh ESP32 4x Weight Sensor LoRa Node
1x 868MHz IPEX Antenna.

Key specifications

Development board type
Kit
Processor type
ESP32
Item number
25112549

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
8.4.2023

Development board properties

Development board type
Kit
Processor type
ESP32
Flash memory
4000 kB

Power supply

Operating voltage
12 V

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Bluetooth version
4.2

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 868MHz IPEX antenna, 1x LilyGo TTGo T-Weigh Esp32 4x weight sensor LoRa Node

Product dimensions

Length
58 mm
Width
50 mm
Height
15 mm
Weight
27 g
