Lilygo TTGO T-Relay ESP32 Dev Board with 4x 5V DC Relay

Ratings
BrandMore from Lilygo
Delivered between Mon, 4.8. and Tue, 5.8.
7 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

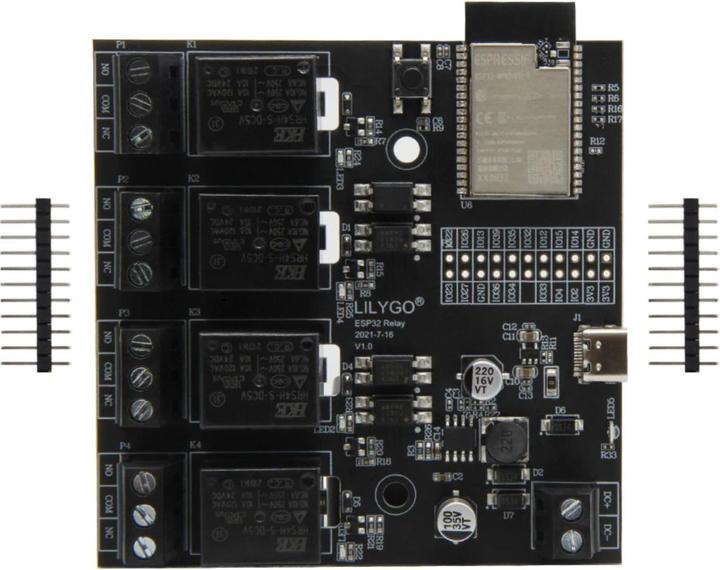

This is a TTGO development board with 4x 5V relays which can be controlled wirelessly. The integrated ESP32-Wrover-B has full Bluetooth and Wi-Fi connectivity. The HRS4H-S-DC5V relays each have a blue status LED to show you if they are switched or not. The board is programmed via a USB-C port. It can also communicate via all common MCU interfaces like UART, SPI, I2C etc.

Info: Since there is no USB to serial chip on the module, you need a T-U2T USB to TTL adapter for programming. If you have already purchased this together with another display, you can of course use it for this one as well. The T-U2T USB to TTL automatic downloader is not included with the display.

Recommended accessories:
LilyGo TTGO T-U2T USB to TTL Programmer CH9102

Features:
4x DC 5V relays
ESP32 with Bluetooth and Wi-Fi
USB-C interface

Technical Details:
Manufacturer: Lilygo
Manufacturer SKU: H516
MCU: ESP32-Wrover-B
Relay: 4x HRS4H-S-DC5V
Input voltage: 12-24V, 5V USB
Power consumption: 360-450mW
Programming: T-U2T adapter

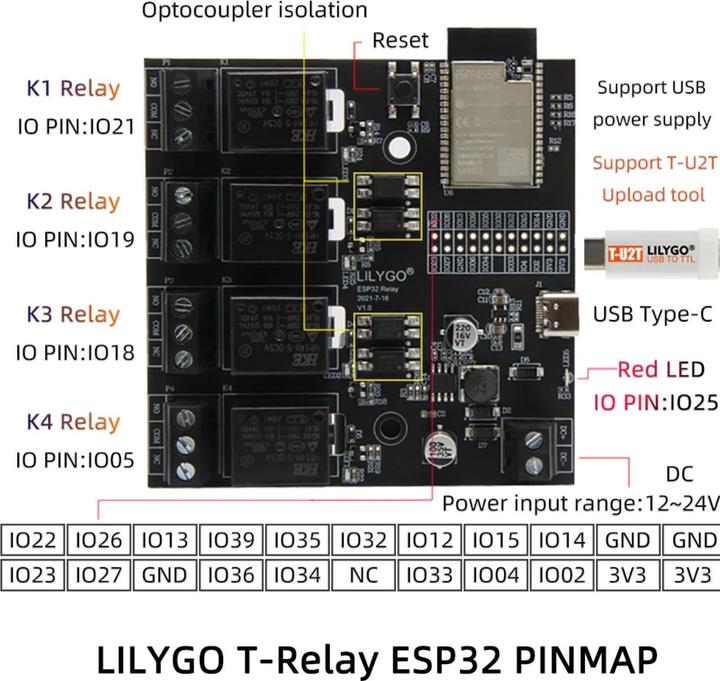

Relay Ports: GPIO21, GPIO19, GPIO18, GPIO05
Wi-Fi standard: 802.11 b/g/n
Bluetooth standard: BLE V4.2
BUS interfaces: UART, SPI, I2C, CAN, I2S, SDIO

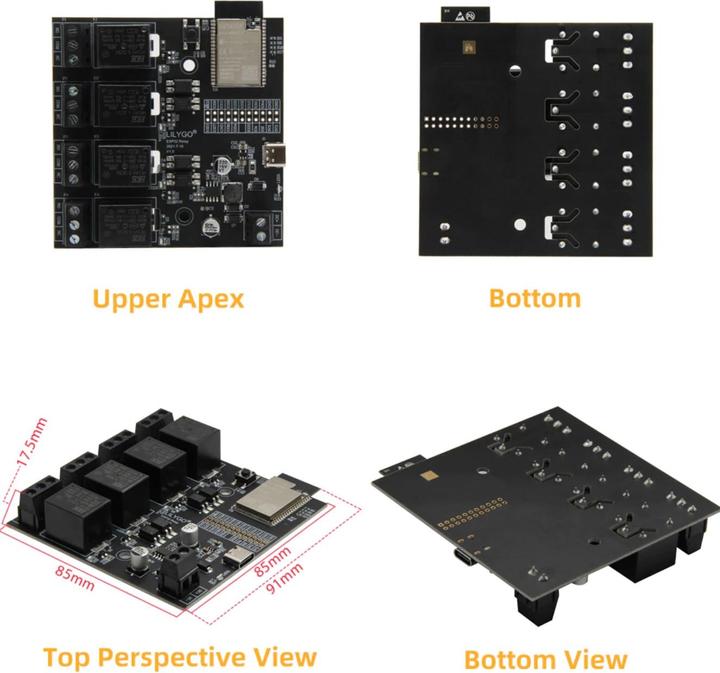

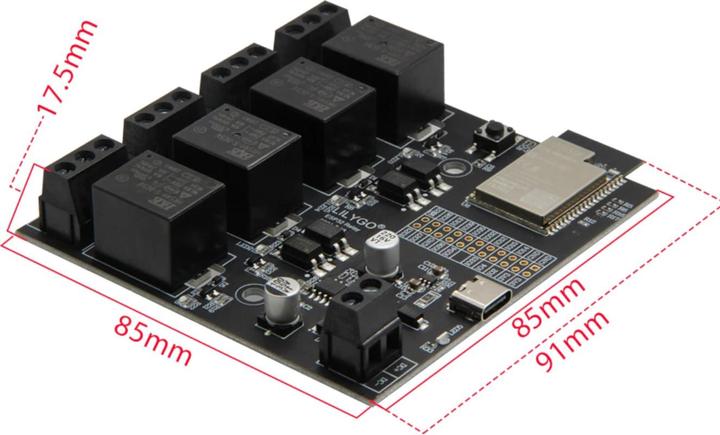

Dimensions: 91 x 85 x 17.5mm
Weight: 114g

Scope of delivery;
1x LilyGo TTGO T-Relay ESP32 Dev Board with 4x 5V DC relays.

Key specifications

Development board type
Board
Processor type
ESP32
Item number
25075480

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
6.4.2023

Development board properties

Development board type
Board
Processor type
ESP32

Power supply

Operating voltage
24 V

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n

Connections

USB ports
USB-C
Digital outputs
21

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x LilyGo TTGO T-Relay ESP32 Dev Board with 4x 5V DC relays
Additionally required (not included)
T-U2T USB to TTL Programmer CH9102

Product dimensions

Weight
114 g
