Lilygo TTGO T-Motor ESP32 5-12V 2.8A TMC2209 Stepper Motor Driver Kit with OLED Display and Housing

This is a TMC2209 5-12V motor driver with an MT6816 360° encoder and ESP32 MCU. The driver has a peak current of up to 2.8 A. Microsteps can be adjusted using two dip switches between 1/8, 1/16, 1/32, and 1/64. The kit comes with the driver board and a 0.49-inch OLED display, as well as a plastic housing. The board features a reset and boot button, along with three programmable buttons. The module can communicate via all common interfaces such as UART, I2C, SPI, CAN, I2S, and SDIO. Thanks to the ESP32, it also offers full Bluetooth and Wi-Fi connectivity.

Note: The display is not pre-assembled and must be soldered using the included 4-pin header.

Recommended Accessories:
12V DC 4000mA power supply AC/DC adapter with 5.5 mm/2.1 mm plug
M5Stack ESP32 Downloader Kit

Features:

• 5-12V 2.8A motor driver with 360° encoder
• Adjustable microsteps 1/8, 1/16, 1/32, and 1/64 with dip switches
• ESP32 MCU with Bluetooth and Wi-Fi
• UART, I2C, SPI, CAN, I2S, and SDIO interfaces
• Reset, boot, and 3 programmable buttons
• 0.49-inch OLED display for information display
• Sturdy plastic housing

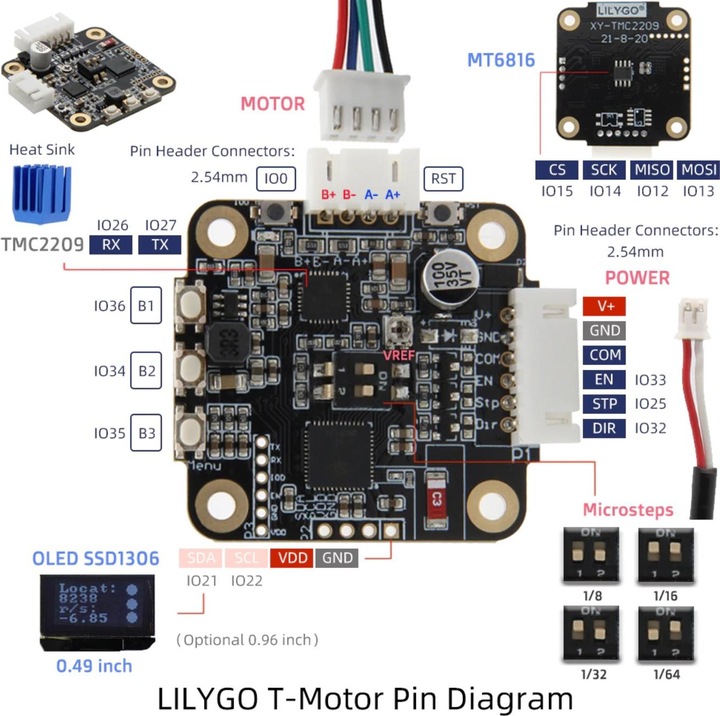

Technical Details:

• Manufacturer: Lilygo
• Manufacturer SKU: H530
• Voltage: 5-12V
• Peak Current: 2.8A
• MCU: ESP32
• Flash: 4MB
• Driver: TMC2209
• Encoder: MT6816
• Microsteps: 1/8, 1/16, 1/32, and 1/64
• Display: 0.49-inch OLED
• Housing: White plastic
• Communication Interfaces: UART, I2C, SPI, CAN, I2S, and SDIO
• Wi-Fi Standard: 802.11 b/g/n
• Bluetooth: BLE V4.2
• Dimensions with housing: 47 x 45.6 x 11 mm
• Weight: 100 g

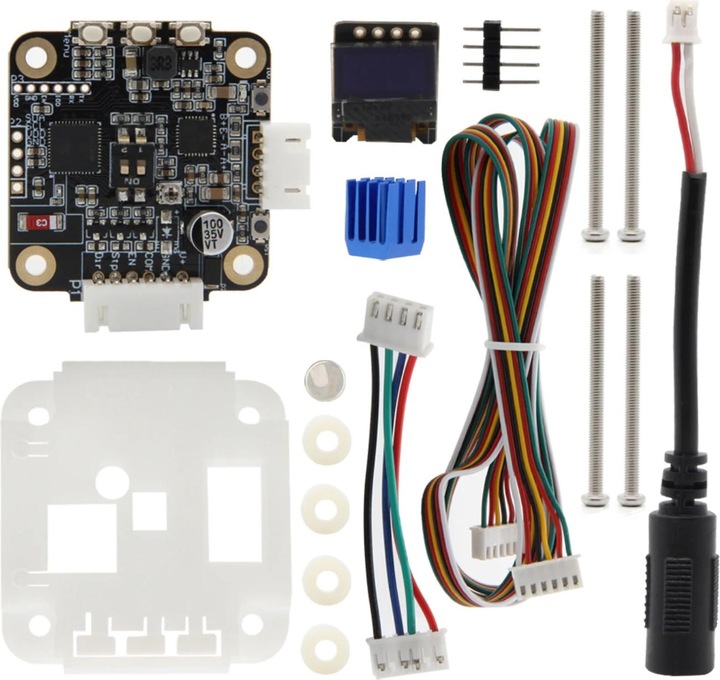

Package Contents:

• 1x LilyGo TTGO T-Motor ESP32 5-12V 2.8A TMC2209 stepper motor driver kit with OLED display and housing
• 1x 0.49-inch OLED display
• 1x 4-pin header
• 1x Housing
• 4x M3x40 screws
• 4x Plastic spacers
• 1x Aluminum heatsink
• 1x 4-pin to 6-pin adapter cable
• 1x 6-pin cable 1 m
• 1x DC barrel to PH2.0 adapter cable.
