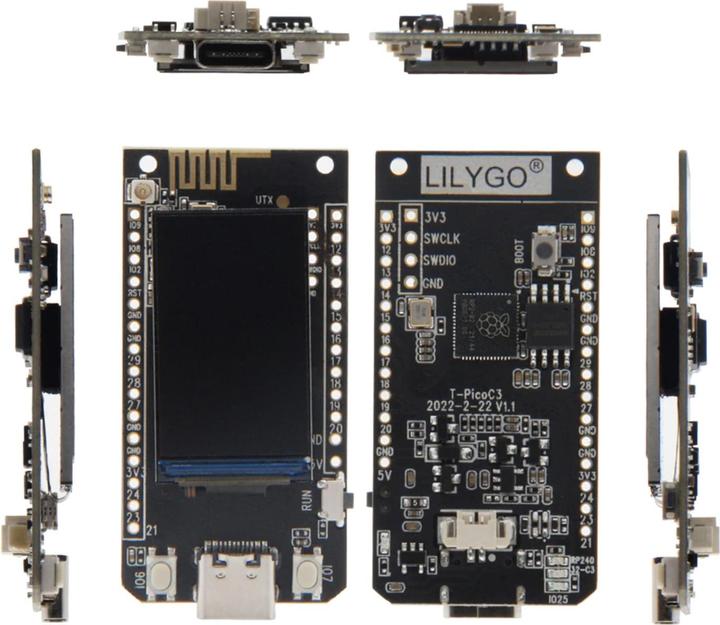

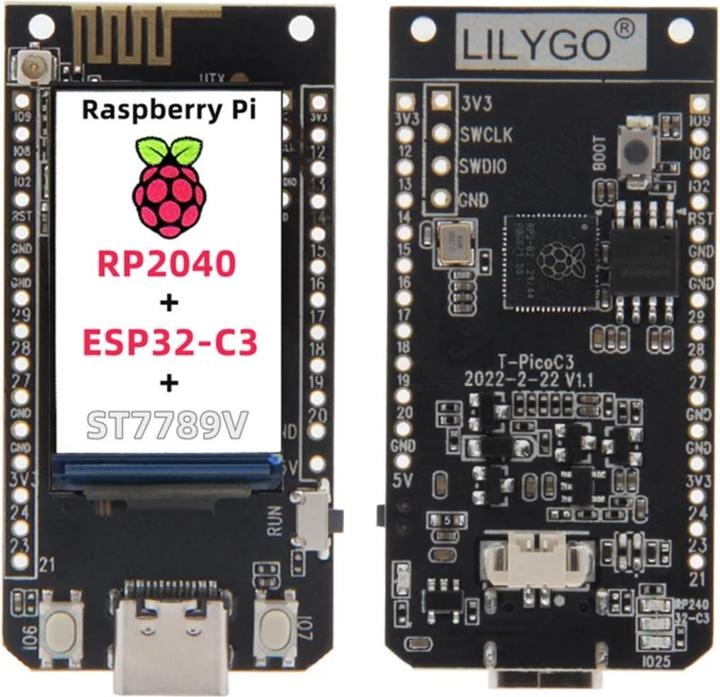

Lilygo T-PicoC3 ESP32-C3 RP2040 Dual MCU with 1.14 inch display

This is a 1.14 inch 125x240 IPS display module with dual MCUs from Lilygo. A Raspberry Pi RP2040 and ESP32-C3 with full Bluetooth and WiFi connectivity are integrated on the module. Both MCUs can be connected to a PC via the USB port for programming. A status LED indicates which mode you are currently in: blue means RP2040 and green means ESP32-C3. You can switch between the modes by simply turning the USB Type-C connector 180° and plugging it in. The module can be programmed with C/C++ and MicroPython, and it supports the TensorFlow Lite learning library. You can connect the module to your PC via USB-C, and the ST7789V IPS colour display communicates via the 4-pin SPI interface. The integrated and compact design of the module enables a wide range of applications, such as in building automation or robotics. With this board, you can easily connect your Raspberry RP2040 to WiFi via the ESP32.

Recommended accessories:
LiPo battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO
USB 3.0 Type-C cable 1m black

Features:

• 1.14 inch IPS colour display with a resolution of 135x240 pixels

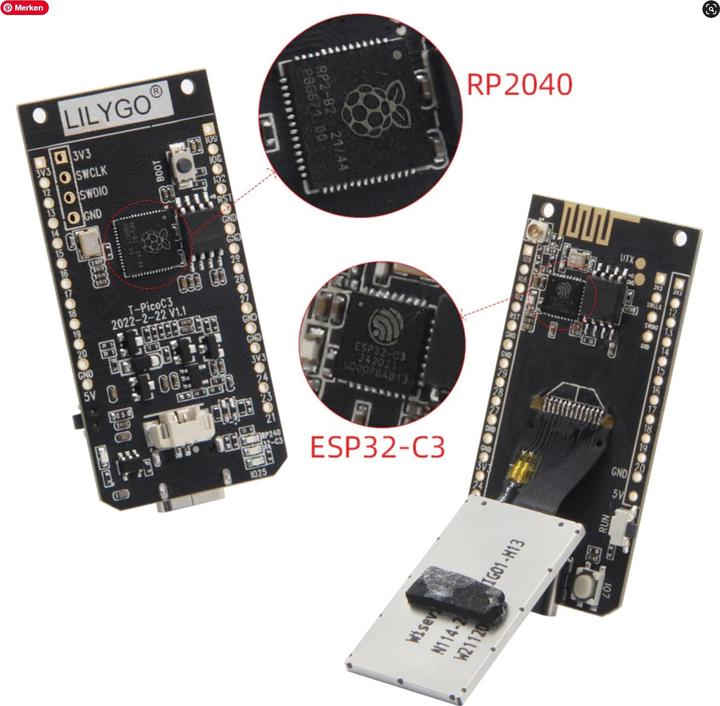

• Dual MCUs ESP32-C3 and Raspberry RP2040
• Programmable with C/C++ and MicroPython
• TensorFlow Lite learning library support
• IPEX connector for external antenna
• USB-C port for programming
• Battery power detector

Technical details:

• Manufacturer: Lilygo
• Manufacturer SKU: H553
• MCU: ESP32-C3 and RP2040 Dual ARM Cortex-M0+
• Flash: 4MB
• Connectivity: WiFi, BLE5.0, USB-C, 4-pin SPI
• Display: ST7789V IPS LCD colour display
• Display size: 1.14 inch
• Resolution: 125x240
• Programming languages: C/C++ and MicroPython
• Machine Learning: TensorFlow Lite library support
• Programmable buttons: IO06+IO07
• Operating temperature: -20°C to 70°C

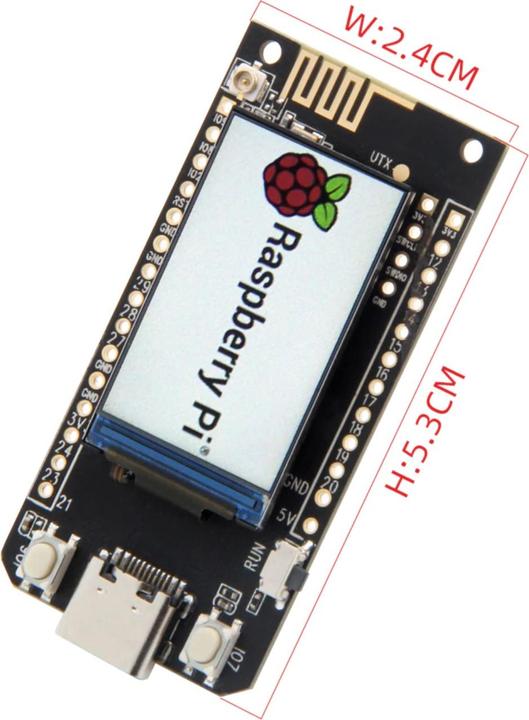

• Dimensions: 53 x 26 x 7mm
• Weight: 20g

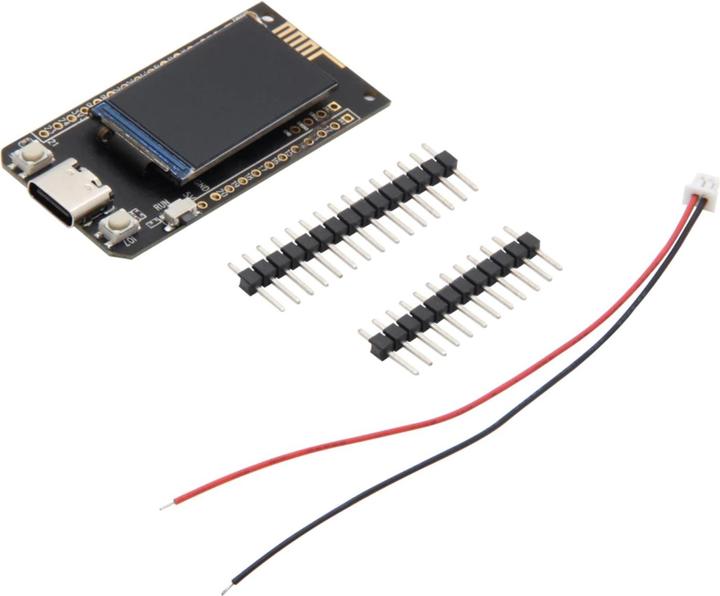

Scope of delivery:

• 1x LilyGo T-PicoC3 ESP32-C3 RP2040 Dual MCU with 1.14 inch display
• 1x JST 2-pin cable
• 1x 15-pin header
• 1x 12-pin header
• 1x 4-pin male header.
