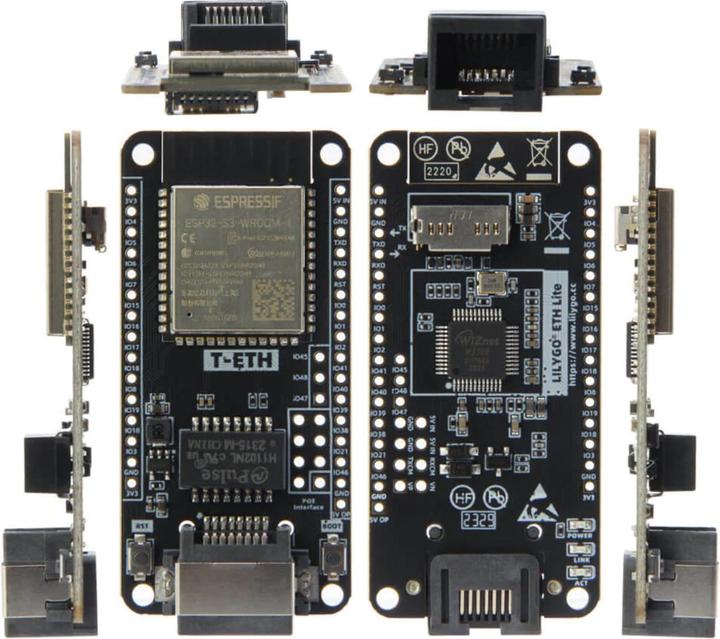

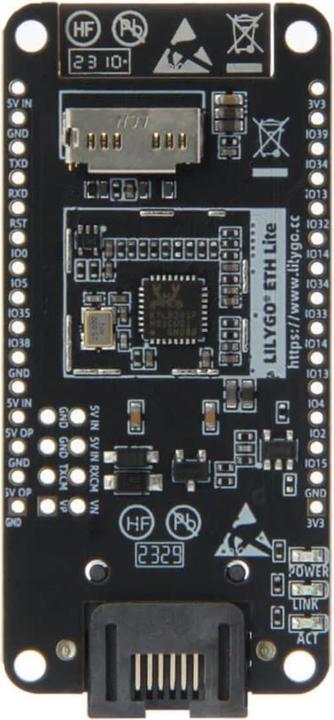

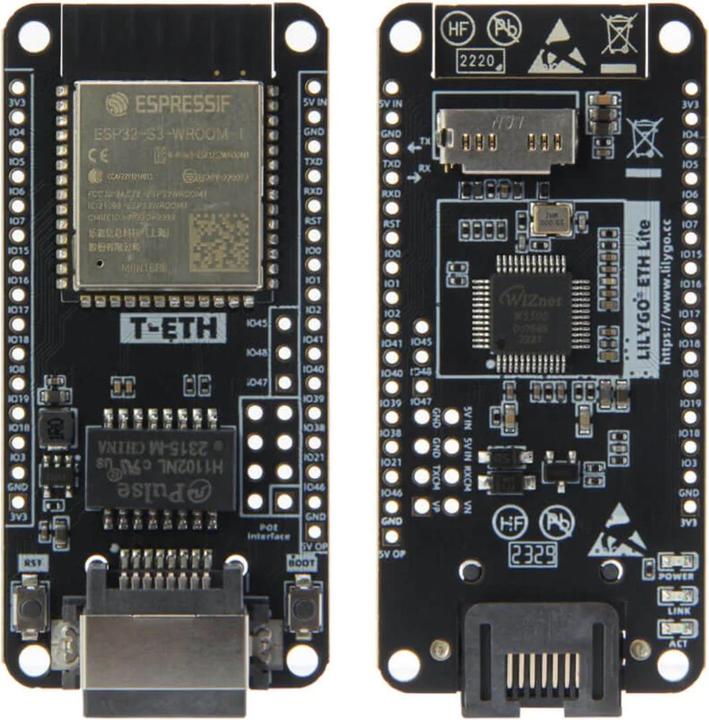

Lilygo T-ETH-Lite ESP32-S3 W5500 Ethernet module

The LilyGo T-ETH-Lite is an advanced Ethernet module based on the powerful ESP32-S3 microprocessor. It provides a reliable Ethernet connection through the W5500 chip and is ideal for projects that require a stable network connection. With Wi-Fi 802.11 b/g/n and BLE 5, as well as Bluetooth Mesh connectivity, it is perfectly suited for a variety of IoT applications. The module features 16 MB of flash memory and 8 MB of PSRAM, enabling smooth execution of your projects. It supports TF cards and is equipped with a reset and boot button. The T-ETH-Lite is compatible with various shields, including POE and camera shields, making it a versatile choice for your projects.

Recommended Accessories:
LilyGo T-ETH-Lite POE Shield
Ethernet Cable

Features:

• Based on the ESP32-S3 microprocessor
• W5500 Ethernet chip for stable network connections
• Wi-Fi 802.11 b/g/n and BLE 5, as well as Bluetooth Mesh connectivity
• 16 MB flash memory and 8 MB PSRAM
• Supports TF cards
• Reset and boot button
• Compatible with POE and camera shields

Application Examples:

• Creating IoT devices with Ethernet connectivity
• Developing network projects for smart home applications
• Prototyping devices that require a stable internet connection
• Use in educational projects to teach networking fundamentals

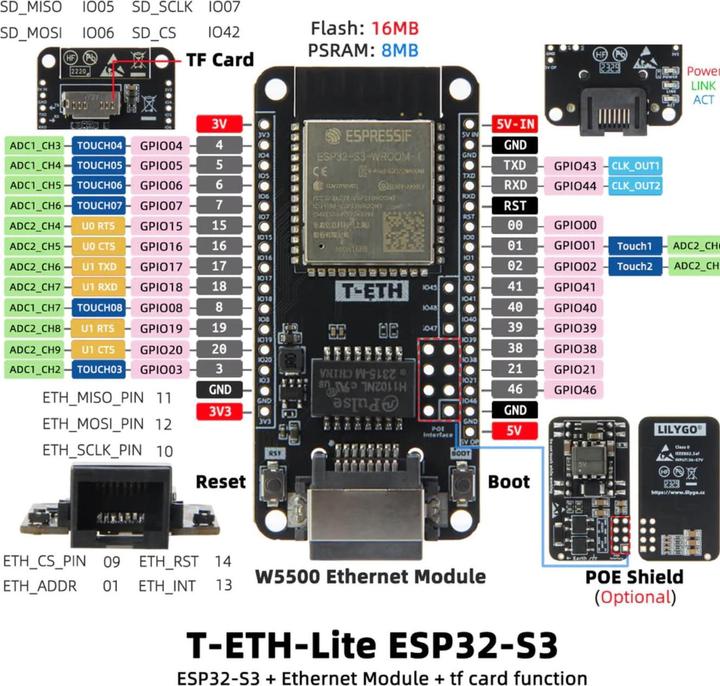

Technical Specifications:

• Manufacturer: Lilygo
• Manufacturer SKU: H674
• MCU: ESP32-S3
• Ethernet: W5500
• Wireless Connectivity: Wi-Fi 802.11 b/g/n, BLE 5, and Bluetooth Mesh
• Memory: 16 MB Flash, 8 MB PSRAM
• Supported Shields: POE, Camera
• Additional Features: TF card support, reset and boot button
• Dimensions: 59 x 28 x 11 mm
• Weight: 24.6 g

Package Contents:
1x LilyGo T-ETH-Lite ESP32-S3 W5500 Ethernet Module
1x 1x16pin header
1x 1x15pin header
1x 2x4pin header
1x 1x3pin header.
