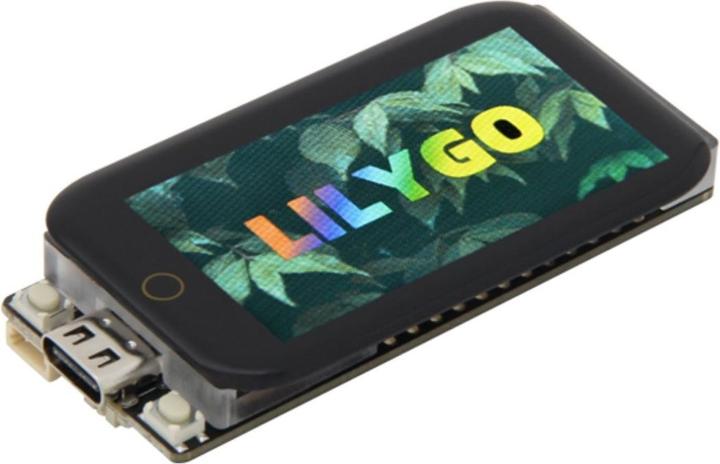

Lilygo T-Display-S3 Touch ESP32-S3 with 1.9 inch touch display

1Ratings
Delivered between Fri, 20.6. and Mon, 23.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

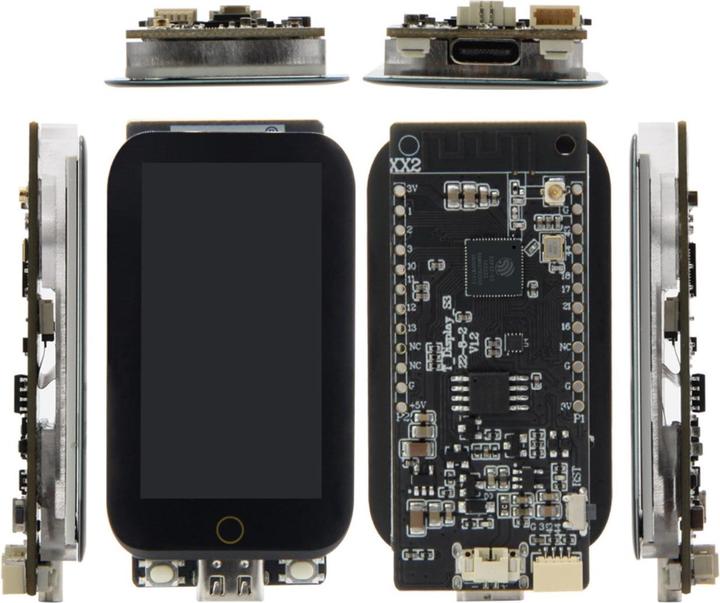

The T-Display-S3 from LilyGO is an LCD screen with touch functionality, providing an easy way to display information. The built-in ST7789V IPS TFT LCD has a resolution of 170x320 pixels and is controlled via an 8-bit parallel interface. The T-Display-S3 is powered by a powerful ESP32-S3 Dual-Core LX7 microprocessor and can be programmed using the Arduino IDE or Micropython. On the product's GitHub page, you will find examples, firmware, and other important documents, including a 3D printing template for a case.

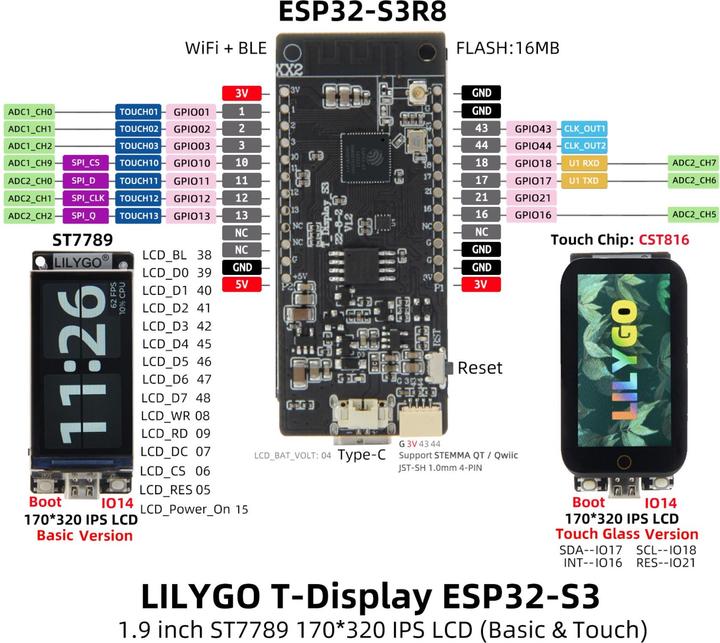

Technical Details:
Manufacturer: LilyGO
Manufacturer SKU: H587
MCU: ESP32-S3 Dual-Core LX7 Microprocessor
ESP32-S3 Wi-Fi: Wi-Fi 802.11 b/g/n
ESP32-S3 Bluetooth: BLE5 + Bluetooth Mesh
ESP32-S3 Flash Memory: 16MB
ESP32-S3 PSRAM: 8MB
ESP32-S3 Battery Voltage Detection: IO04
Programming Platform: Arduino IDE, Micropython
Display Model: ST7789V IPS TFT LCD
Display Driver: ST7789
Display Resolution: 170x320 pixels
Display Diagonal: 1.9 inches
Display Interface: 8-Bit Parallel
Touch: Yes
Power Supply: 3.3V
Connections: USB Type-C, JST GH 1.25mm
Dimensions: 62 x 26 x 11mm
Weight: 32g

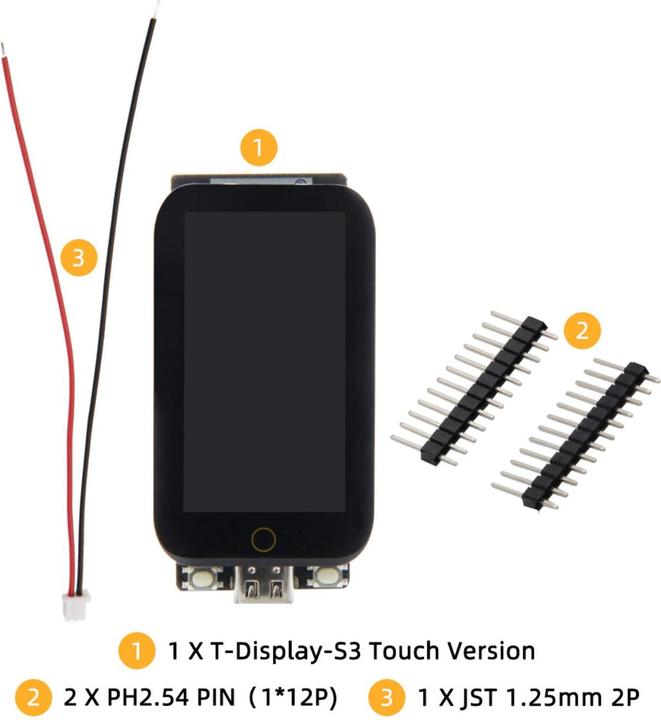

Included in the package:
1x LilyGo T-Display-S3 Touch ESP32-S3 with 1.9 Inch Touch Display
2x 2.54mm Male Pins (1x12PIN)
1x JST 1.25mm 2P.

Key specifications

Memory
8 MB
Processor type
ESP32
Item number
25400907

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
28.4.2023
Sales rank in Category Development boards + Kits
225 of 2728

Development board properties

Processor type
ESP32
Memory
8 MB
Flash memory
16000 kB

Power supply

Operating voltage
3.30 V

Wireless transmission

Wireless transmission
Bluetooth
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x JST 1.25mm 2P, 1x LilyGo T-Display-S3 Touch ESP32-S3 with 1.9 inch touch display, 2x 2.54mm male pin (1x12PIN)

Product dimensions

Length
26 mm
Width
62 mm
Height
11 mm
Weight
32 g
