Lilygo T-Display ESP32 16MB CH9102F with 1.14 inch display

Ratings
BrandMore from Lilygo
Delivered between Tue, 1.7. and Wed, 2.7.
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

This is a 1.14-inch 135x240 IPS display with an ESP32 microcontroller from LilyGo. Thanks to the built-in ESP32, the board features Bluetooth and Wi-Fi connectivity. The module is programmed directly via the USB-C port, and a CH9102F USB-TTL chip is integrated on the board. For portable power supply, a TP4054 battery chip and a JST SH1.25 cable are included. The display is ideal for developing IoT projects such as smart home controls due to its numerous connections.

Recommended accessories:
LilyGo T-Display ABS Case

Features:
1.14-inch IPS color display with a resolution of 135x240
ESP32 MCU with Bluetooth and Wi-Fi
Programmable with Arduino or MicroPython
USB-C port for programming
JST 1.25 Lipo connection
Programmable buttons

Technical details:
Manufacturer: LilyGo
Manufacturer SKU: Q125
MCU: ESP32 Xtensa dual-core LX6
Flash: 16MB
Display size: 1.14 inches
Resolution: 135x240
Technology: IPS
Bluetooth: v4.2+BLE
Wi-Fi: 802.11 b/g/n
Serial Chip: CH9102F
Battery Chip: TP4054
Dimensions: 53 x 25 x 5mm
Weight: 21g

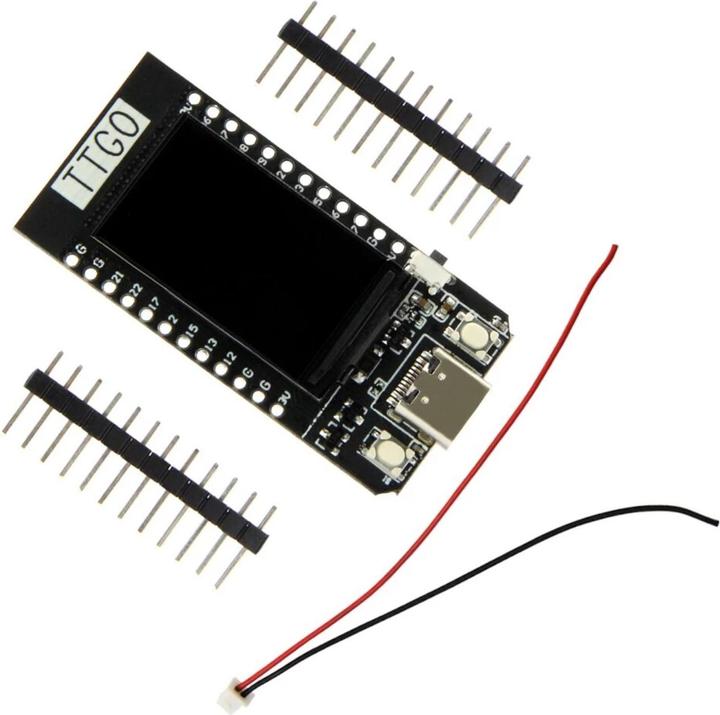

Delivery includes:
1x LilyGo T-Display ESP32 16MB CH9102F with 1.14-inch display
1x JST SH1.25 cable 10cm
2x 12-pin header.

Key specifications

Processor type
ESP32
Item number
25112556

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
8.4.2023

Development board properties

Processor type
ESP32
Flash memory
16000 kB

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n
Bluetooth version
4.2 + BLE

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x JST SH1.25 cable 10cm, 1x LilyGo T-Display ESP32 16MB CH9102F with 1.14 inch display, 2x 12pin pin header

Product dimensions

Length
53 mm
Width
25 mm
Height
5 mm
Weight
21 g
