Lilygo T-Deck Plus ESP32-S3 868MHz LoRa-Modul mit 2.8 Zoll Display und externe Antenne für Meshtastic

Discover the powerful LilyGo T-Deck Plus featuring the ESP32-S3 and integrated 868MHz LoRa technology for Meshtastic communication. The module offers a high-quality 2.8-inch display for clear presentation of messages, location data, and other information. New is the external, flexible 15 cm long LoRa antenna, which significantly improves range and reception quality and can be positioned flexibly to ensure optimal signal strength. The desired Meshtastic firmware can be easily and quickly installed via the Meshtastic Web Flasher. This module is excellent for robust communication in areas without mobile coverage, during outdoor activities, or in disaster situations. Thanks to its easy integration into the Meshtastic network, you can quickly establish an independent, decentralized communication network.

Features:

• High-performance, low-power ESP32-S3 microcontroller
• Integrated 868 MHz LoRa module

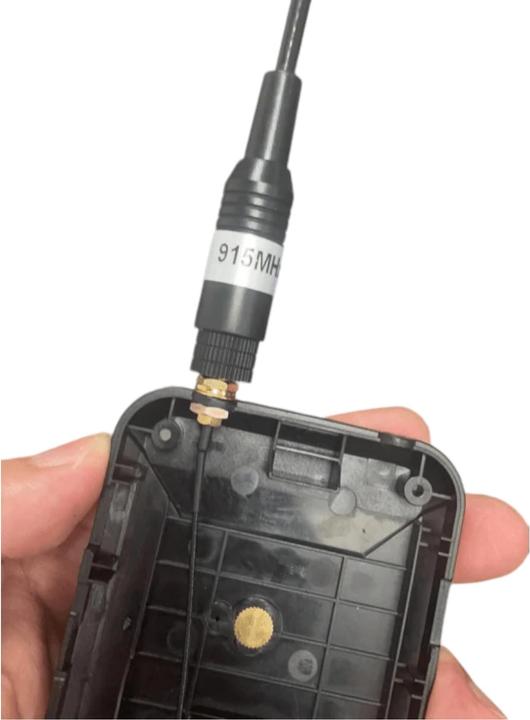

• Flexibly positionable external 15 cm antenna
• Large, clear 2.8-inch color display
• Compatible with Meshtastic firmware
• USB-C port for easy power supply and programming
• Expansion options with numerous GPIO pins

Technical Specifications:

• Manufacturer: Lilygo
• Manufacturer SKU: H736-03
• Processor: ESP32-S3 Dual-Core 32-Bit
• Antenna: External flexible 15 cm antenna
• Integrated battery: 2000mAh
• Battery ADC PIN: IO04
• LoRa module: 868MHz
• Display: 2.8-inch TFT touchscreen
• Connectivity: WiFi, Bluetooth, and LoRa
• Power supply: USB-C, battery operation with charging function
• GPIO pins: 21 expandable pins
• Memory: 16 MB Flash, 8 MB PSRAM
• Onboard features: GPS, TF Card, microphone, speaker
• Supported software: Arduino IDE, PlatformIO, Meshtastic
• Operating voltage: 3.7V-4.2V (battery operation), 5V (USB)
• LoRa: Lorachip: SX1262 EU868
• Transmission power: +22dBm
• Dimensions: 115 x 72 x 20mm
• Weight: 220g.
