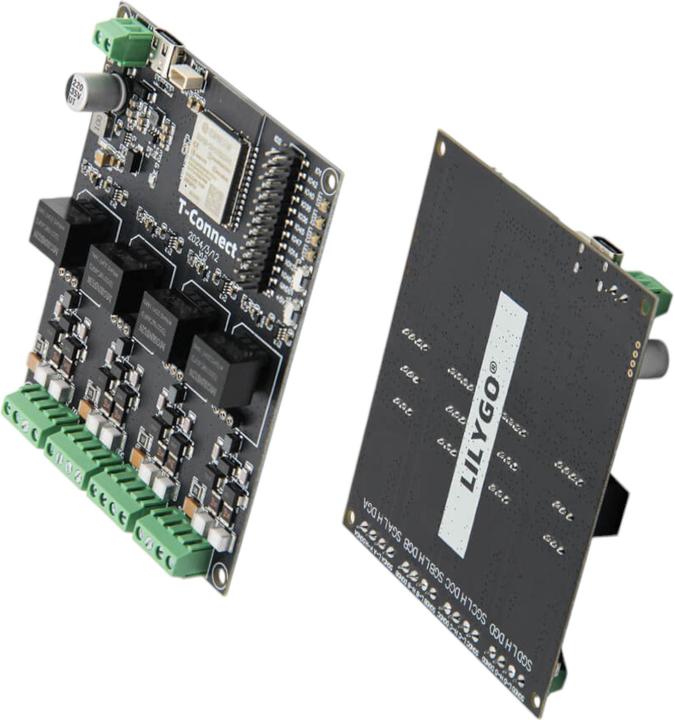

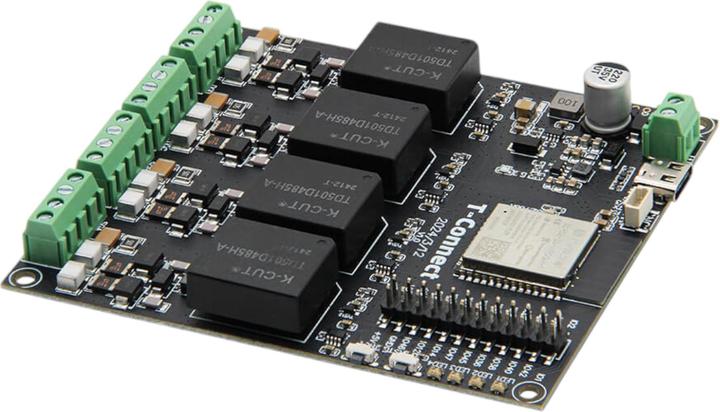

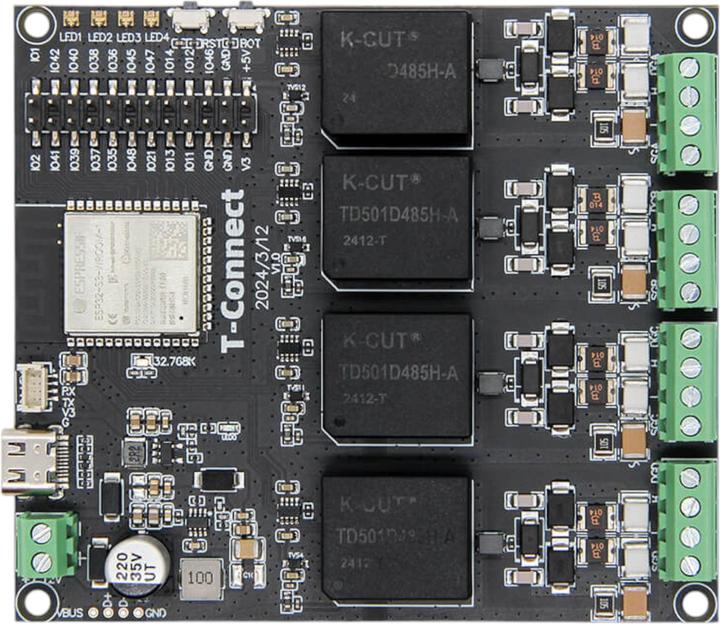

Lilygo T-Connect ESP32-S3 with 4x RS485

Immerse yourself in the world of modern control technologies with the LilyGo T-Connect ESP32-S3. This specially developed board offers four independent RS485 interfaces that are ideal for industrial automation and control applications. The powerful ESP32-S3 microcontroller combines robust computing power with integrated WLAN and Bluetooth to provide flexible and wireless communication options. Perfect for engineers, developers, and tinkerers, the T-Connect enables easy integration into existing systems. The compact design and versatile compatibility with popular programming platforms such as Arduino make this board an indispensable tool for professional and creative projects.

Features:

• Four RS485 interfaces: Ideal for simultaneous control and communication with multiple devices.
• ESP32-S3 microcontroller: Offers high computing power and energy efficiency with 16MB Flash and 8MB PSRAM.
• Wireless communication: Supports WLAN (2.4 GHz) and Bluetooth 5.0 for maximum flexibility.
• Compact design: Fits easily into existing circuits and projects.
• Programmability: Compatible with Arduino IDE and Visual Studio Code for easy software development.

Application examples:

• Control of up to four RS485 devices in industrial applications.
• Development of complex IoT networks with serial data transmission.
• Use in building automation for connecting control devices.
• Remote monitoring and control of machines in production.
• Research and teaching in the field of serial communication.

Technical data:

• Manufacturer: Lilygo
• Manufacturer SKU: H732
• Processor: ESP32-S3
• Memory: 16MB Flash, 8MB PSRAM
• Communication: 4x RS485, WLAN (2.4 GHz), Bluetooth 5.0
• Buttons: Reset + Boot

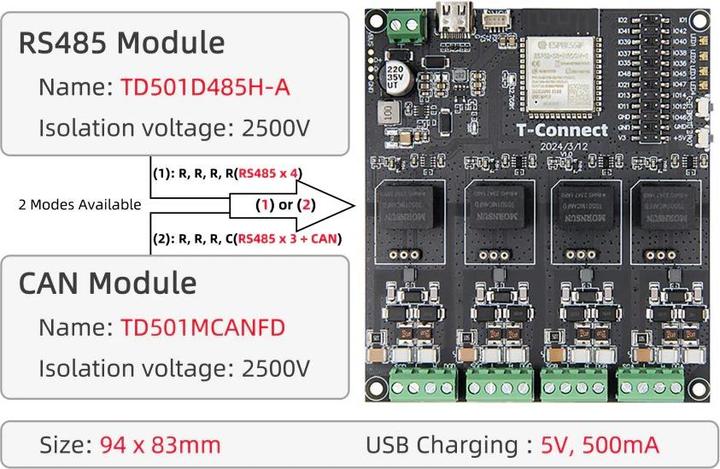

• RS485 module: TD501D485H-A
• Supported platforms: Arduino IDE, Visual Studio Code
• Dimensions: Compact format for versatile applications
• Dimension: 94 x 83 x 13mm
• Weight: 92g

Scope of delivery:
1x LilyGo T-Connect ESP32-S3 with 4x RS485.
