Lilygo AMOLED T-Display-S3 ESP32-S3 with 1.9 inch display

6Ratings
BrandMore from Lilygo
Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

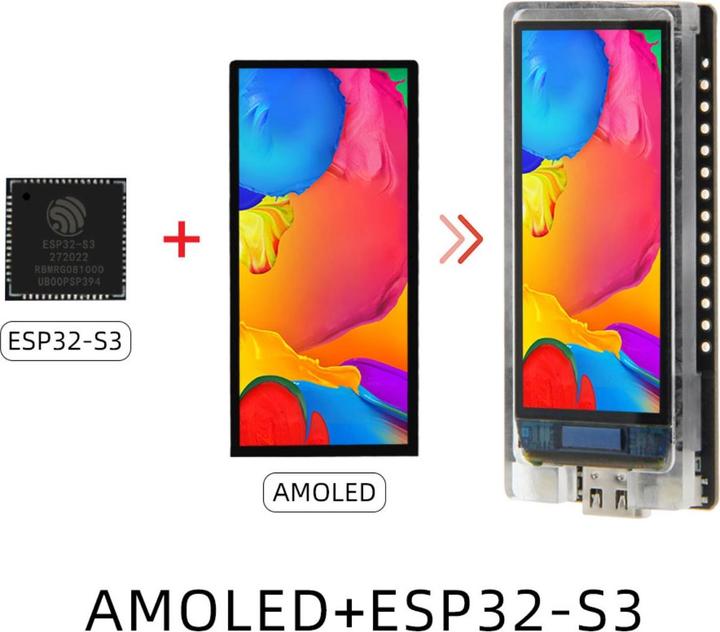

This is a 1.91-inch 240x536 pixel AMOLED display module featuring an ESP32-S3 from Lilygo. The integrated ESP32-S3 offers Bluetooth and WiFi connectivity. The board is equipped with an additional button that can be read by the ESP. The module is programmed directly via the USB Type-C port. The T-Display-S3 also supports charging of LiPo batteries, allowing the board to be easily powered by a LiPo. The battery voltage status can be determined via IO4.

Recommended accessories:
LiPo battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO

Features:
1.91-inch AMOLED display with a resolution of 240x536 pixels
ESP32-S3 MCU
Programmable with Arduino or Micropython
IPEX connector for external antenna
USB-C port for programming
JST 1.25mm LiPo connector

Technical details:
Manufacturer: Lilygo
Manufacturer SKU: H619
MCU: ESP32-S3R8 Dual-core LX7 microprocessor
Flash memory: 16MB
PSRAM: 8MB
Connectivity: WiFi, BLE5.0, USB-C, 4pin SPI
Battery voltage pin: IO04
Onboard features: Boot (IO00), reset button, IO21 button
Development environments: Arduino, PlatformIO, Micropython
Display:
Display type: AMOLED
Interface: QSPI (standard), SPI4
Driver: RM67162
Resolution: 240 x 536 pixels (RGB)

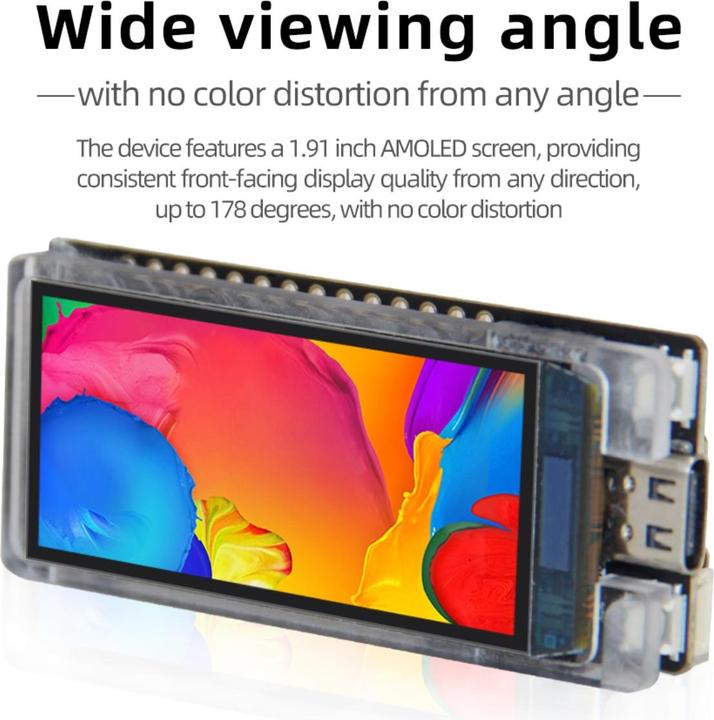

Viewing angle: IPS full viewing angle
Display diagonal: 1.91 inches
Dimensions: 19.8 x 44.22mm
Dimensions: 60 x 25.5 x 10mm
Weight: 25g

Package contents:
1x LilyGo AMOLED T-Display-S3 ESP32-S3 with 1.9-inch display
2x 12-pin header strips
1x JST 1.25mm connection cable.

Key specifications

Development board type
Board
Processor type
ESP32
Working memory
8 MB

General information

Item number
37123032
Manufacturer
Lilygo
Category
Single board computer kits
Release date
18.7.2023
Sales rank in Category Single board computer kits
358 of 3062

Development board properties

Development board type
Board
Processor type
ESP32
Working memory
8 MB
Flash memory
16000 kB

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 2.25

Scope of delivery

Scope of delivery
1x JST 1.25mm connection cable, 1x LilyGo AMOLED T-Display-S3 ESP32-S3 with 1.9 inch display, 2x 12pin pin headers

Product dimensions

Length
60 mm
Width
25.50 mm
Height
10 mm
Weight
25 g
