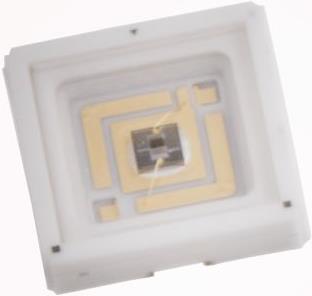

LG UV-C LED,, 278nm, 2mW, SMD
Product details
Number of LEDs: 1
Peak Wavelength: 278 nm
Output Power: 2 mW
Viewing Angle: 121°
Lens Shape: Square
Number of Pins: 2
Mounting Type: Surface Mount
Height above Panel: 1.35 mm
Length: 6 mm
Width: 6 mm
Dimensions: 6 x 6 x 1.35 mm
UVC LED of the 6060 series. The 6060 series from LG Innotek is a range of UVC LEDs with a peak wavelength of 278 nm. These high-performance UVC LEDs emit in the "C" range of the UV spectrum and are ideal for use in sterilization applications. The 6060 series is an excellent alternative to mercury UV LEDs. It offers high efficiency, a long lifespan, and a compact design, and is environmentally friendly. It also requires no warm-up time to initiate a sterilization process. The 6060 UVC LEDs feature a square SMD package with a viewing angle of 120° or 126°. Suitable applications for the 6060 UVC LEDs include disinfection, water treatment, light therapy, sensor lighting, and counterfeit detection. Features of the 6060 UVC LEDs: 1 in 1 LED package, surface mount (SMD), peak wavelength: 278 nm, low power consumption, low thermal resistance, high quality, high reliability. Dimensions: 6 x 6 x 1.35 mm. Operating temperature: -40 °C to +60 °C.
