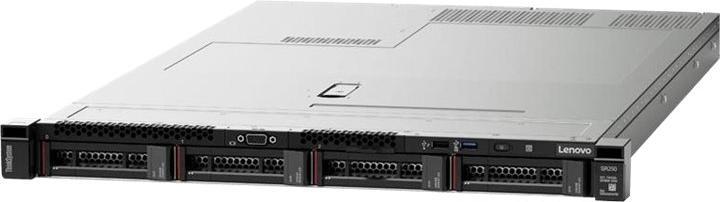

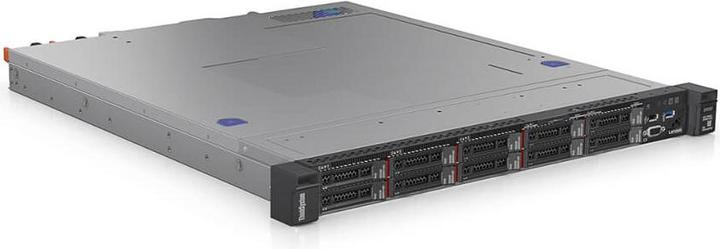

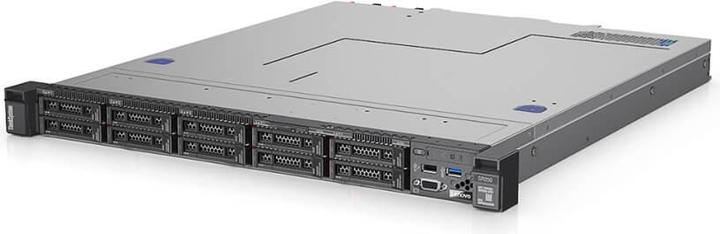

Lenovo ThinkSystem SR250 7Y51
Intel Xeon E-2276G, 128 GB, Rack ServerProduct details
The Lenovo ThinkSystem SR250 7Y51 is a compact rack server designed for businesses that require a reliable and powerful solution for hybrid cloud applications. With a 1U form factor and a single Intel Xeon E-2276G processor featuring 6 cores that operates at clock speeds of up to 3.8 GHz, this server delivers efficient performance for various business needs. The pre-installed 16 GB DDR4 RAM provides a solid foundation for multitasking and data processing. The server supports up to 8 hard drives and allows for hot-swap functionality for easy maintenance and expansion. With a maximum RAM capacity of 128 GB and ECC memory technology, the SR250 is designed to ensure data integrity while providing high availability. The integrated Intel UHD Graphics and various PCI Express expansion slots offer additional flexibility for future upgrades.
- 1U rack-mount design for space-saving implementation
- Supports up to 8 hard drives with SATA III interface
- Maximum RAM capacity of 128 GB with ECC memory technology
- Hot-swap capable drive bays for easy maintenance
- Versatile expansion options through PCI Express slots.
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2276G |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 128 GB |
Operating system | No operating system |
Item number | 21440743 |
Design | Rack Server |
Number of rack units | 1 U |
Processor family | Xeon E |
Processor type | Intel Xeon E-2276G |
Number of processors | 1 x |
Clock frequency | 3.80 GHz |
Number of processor cores | 6 -Core |
Max. turbo clock rate | 4.90 GHz |
Max. TDP | 450 W |
L3 Cache | 12 MB |
Chipset | Intel C246 |
Memory type | DDR4-RAM |
Max. memory slots | 4 |
Memory configuration | 1 x 16GB |
RAM | 128 GB |
Max. RAM | 128 GB |
RAM speed | 2666 MHz |
RAM error correction | ECC |
RAM buffer | Error Correcting Code |
RAID configuration | 0, 1, 10, 5 |
Possible raid configuration | 0, 1, 10, 5 |
Mass storage controller type | SATA III |
Max. number of hard disks | 8 |
Storage capacity | 24000 GB |
Form factor | 2.5" |
Interface | SAS, SATA |
Hard disk additional functions | Hot swapping |
Expansion slot | PCI Express x4 (3x), PCI Express x8 (3x) |
PCI express version (max.) | 3 |
USB ports | USB-A, USB-B |
Exact USB ports | USB-A 3.1 Gen 1 (2x), USB-B 2.0 (1x) |
Data ports | PS/2 (1x) |
Connectivity | Ethernet |
Network connections | RJ45 (2x) |
Ethernet controller | Broadcom BCM5720 |
Ethernet controller brand | Broadcom |
Graphics card model | UHD Graphics P630 |
Graphics chip (GPU) | Intel UHD Graphics |
Dedicated graphics memory | 0.02 GB |
Hardware interface | Ethernet |
Video connections | VGA (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Number of power supply units | 2 x |
Power | 450 W |
input voltage | 230 V |
Max. number of power supply units | 2 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 498 mm |
Width | 434 mm |
Height | 43 mm |
Weight | 9.10 kg |
