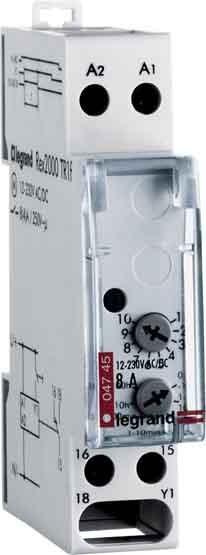

Legrand LEG 04741 Time relay REX analogue

Ratings
BrandMore from Legrand
Delivered the day after tomorrow
Only 1 piece in stock
free shipping

Product details

The Legrand REX Analog 04741 time relay is a versatile, delayed-off relay designed for panel mounting. It offers a wide voltage supply range of 12 to 230 VAC/DC and is equipped with seven adjustable time ranges, allowing for flexible adaptation to various applications. With a switching output in the form of a changeover contact, this time relay is ideal for small control systems that require specific timing functions. Typical areas of use include lighting systems, ventilation systems, as well as control and regulation technology in automation and signaling systems. Its compact design, with a width of just 1 module, facilitates integration into existing systems and switch cabinets.

  • Delayed-off relay for precise time control
  • Seven adjustable time ranges for flexible applications
  • Suitable for various control and regulation tasks
  • Compatible with a wide voltage supply range of 12 to 230 VAC/DC.

Key specifications

Relay type
Time relay
Input voltage
12 - 230 V
Electric current output
8000 mA
Output current type
AC
Number of poles
1x
Documents
Assembly instructions.pdf

General information

Item number
32164721
Manufacturer
Legrand
Category
Relays
Manufacturer No.
004741
Release date
16.11.2022

Relay properties

Relay type
Time relay
Input voltage
12 - 230 V
Electric current output
8000 mA
Output current type
AC
Switching function
Changer
Number of openers
0x
Number of closers
0x
Number of poles
1x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Germany, Italy

Sustainability

Manufacturer commitment
RE100

Voluntary climate contribution

CO₂ emissions
0.49 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Width
44.45 mm
Height
70 mm
Weight
86 g

Package dimensions

Length
10 cm
Width
8.50 cm
Height
2 cm
Weight
79 g
