Ledvance PL CMFT 600 P 33W 83

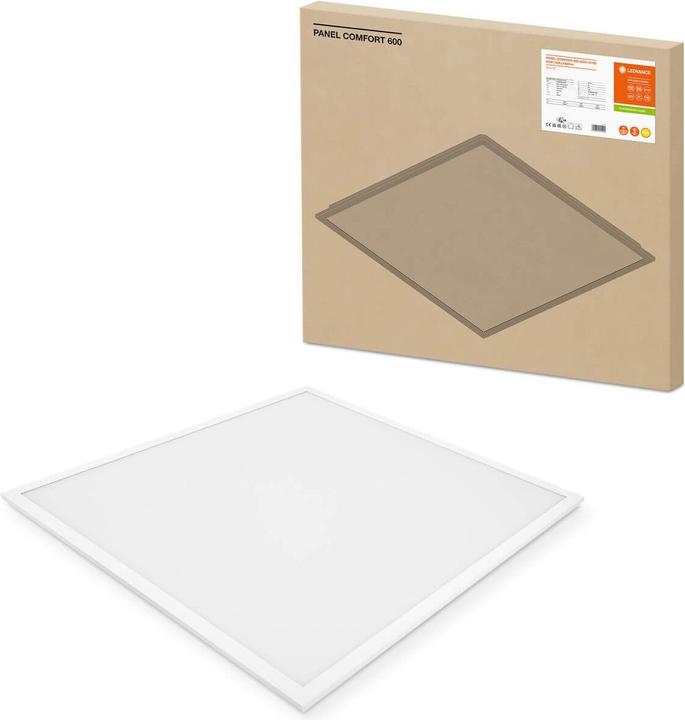

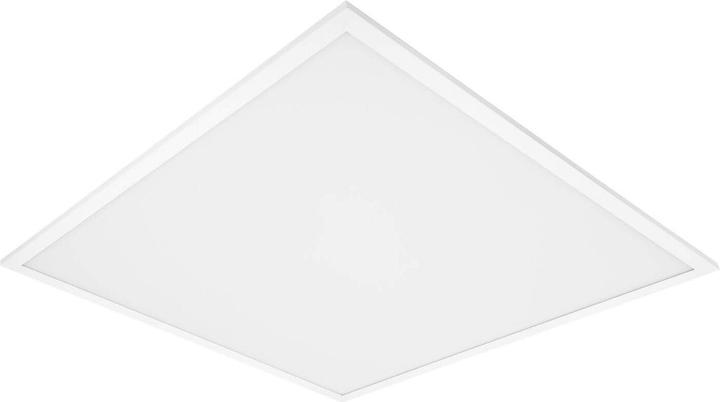

Square insert luminaires with selectable wattage setting (Power Select - PS) and strong glare control, designed for 600 x 600 mm ceiling systems.

Product features include a frame made of extruded aluminium and a polystyrene diffuser. It has a 5-pole connection terminal with a cable cross-section of up to 5 x 2.5 mm². Luminaire versions with IoT-capable DALI-2 driver are available, as well as versions with CRI 90. The service life (L80/B10) is 70,000 hours at 25 °C.

Product benefits include versatility due to the wattage setting that can be selected on the driver (Power Select - PS) and a tool-free electrical connection thanks to the push-button connection terminal. Through-wiring is possible with the included connection box. Energy savings are achieved with a high system luminous efficacy of up to 130 lm/W and good glare control (UGR = 19). It offers high colour consistency with SDCM 3. Extended services such as power consumption monitoring and remote maintenance are possible with DALI versions. The external driver provides extended flexibility and simple installation, while low flicker light is ensured by a special electronic ballast. Emergency lighting is possible with the LEDVANCE Emergency Conversion Box.

Areas of application include direct replacement for recessed luminaires with fluorescent lamps, offices, conference rooms, reception areas, entrance areas, corridors, and lifts. It is suitable for recessed ceiling systems with a grid dimension of 600 x 600 mm.

Technical features include accessories available for various installation options, a connection box with a 5-pole connection terminal, a safety cable for luminaires, pre-assembled safety terminals, and an external ballast included. It is suitable for operation with the Emergency Conversion Box.
