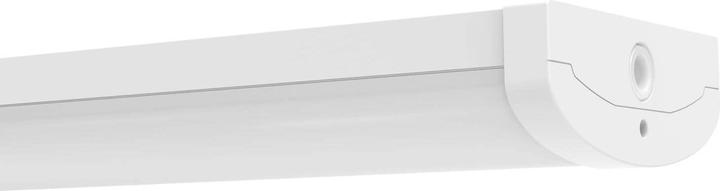

Ledvance LN SF 1200 P 32W 830

Robust IP44 luminaires with direct light emission, integrated driver, and integrated safety lighting function, up to 137 lm/W.

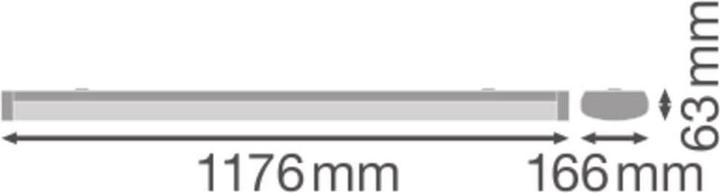

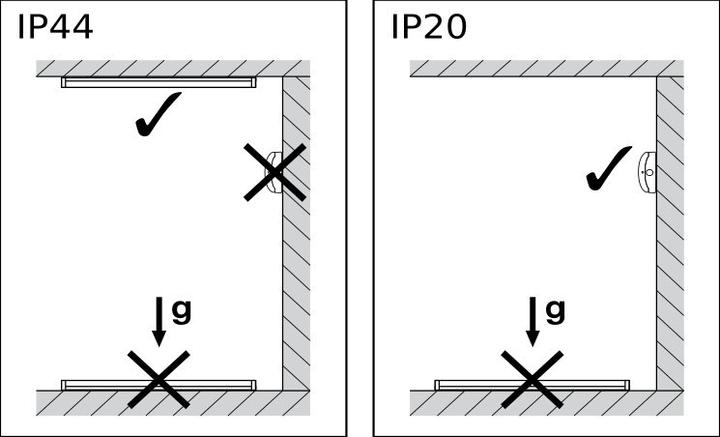

Product features: Certified in accordance with European standards (EN 60598-1:2015, EN 60598-2-22:2014). Luminaire suitable for general lighting and emergency lighting. Single battery luminaires. Safety lighting function: battery discharge time 3 hours. Function test of the emergency lighting: automatic. Battery technology: LiFePO4. Ambient temperature range during operation: +5 to +35 °C. Surface-mounted light with direct light emission. Protection class: IP44. Impact resistance: IK08. Available in three different lengths: 600 mm, 1200 mm, and 1500 mm. High luminous efficacy: up to 137 lm/W.

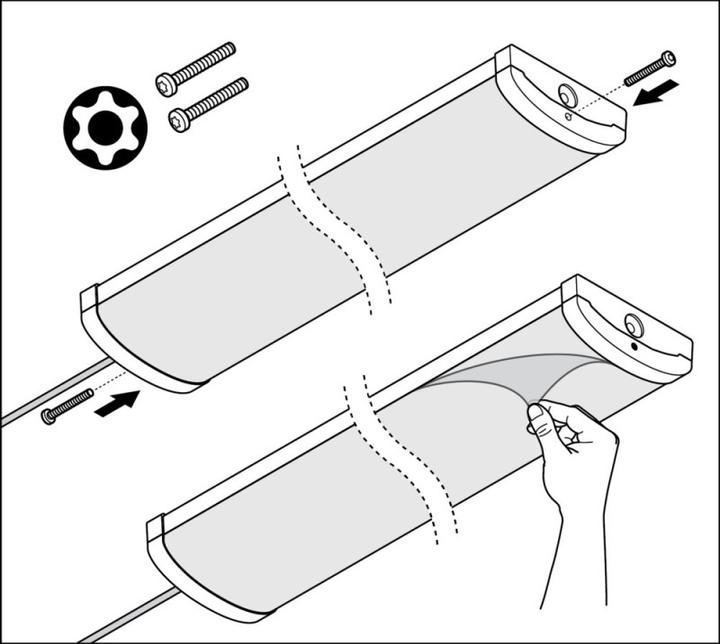

Product advantages: Seamless integration of luminaires with emergency lighting function into general lighting. Protection against the cover falling off, theft, and vandalism thanks to security screws. Simple wiring thanks to the supplied pre-wired driver and battery for the emergency lighting function. Simple testing of the emergency lighting function thanks to the integrated automatic test function. Convenient visualization of the results of the automatic test with included indicator LED. Operation of the safety lighting function with long-life LiFePO4 battery with 3-hour operating discharge time. High light output in normal operation. Low maintenance and low operating costs. Cable entry on the back of the luminaire and on the end caps for easy electrical connection. Quick and easy installation. Low flicker light thanks to special electronic ballast.

Areas of application: Safety lighting for escape routes, anti-panic lighting, buildings for which 3 hours of emergency lighting is required, efficient replacement for traditional T8 and T5 batten luminaires, public buildings, corridors, and stairwells.

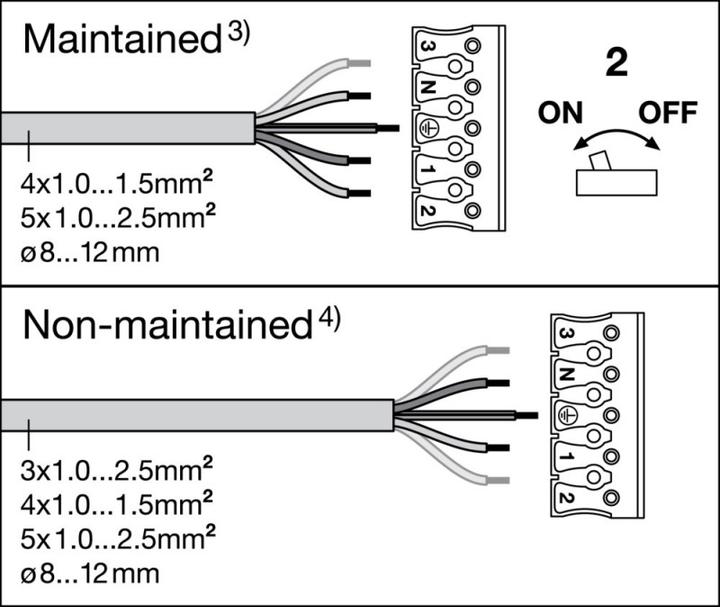

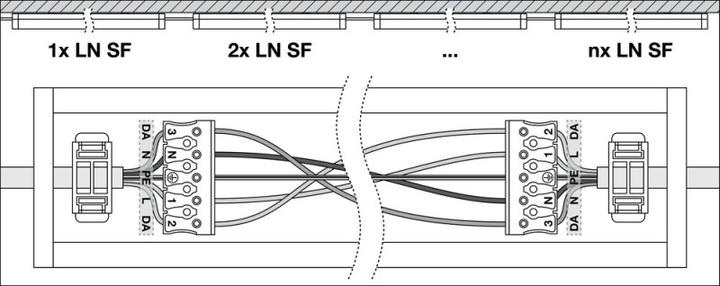

Technical features: Equipped with through-wiring cables and plugs. Including tool-free cable strain reliefs.
