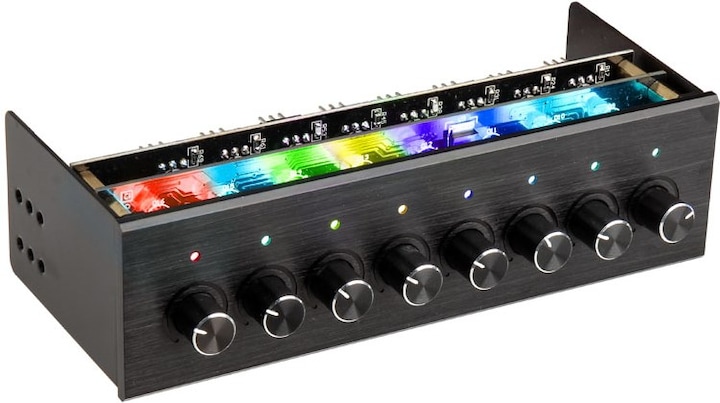

Lamptron FC8 Fan Controller 8 Channel 5.25 Inch - Black

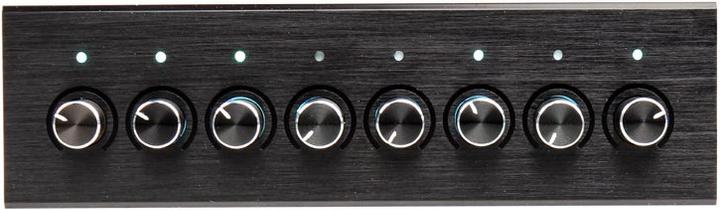

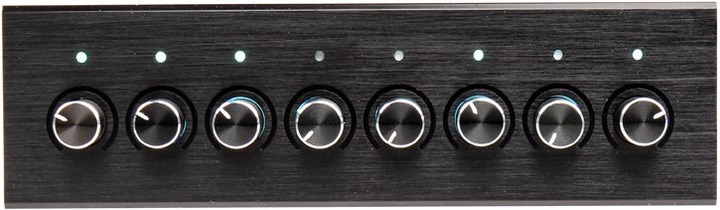

To adapt the cooling performance and noise level of the PC to personal and changing requirements, this controller allows direct access via eight channels. The manufacturer, Lamptron, opted for a classic layout with rotary knobs. These are housed on a solid black aluminum front panel in a 5.25-inch format and are designed for corresponding slots. According to the manufacturer, each of the eight channels can handle a load of 30 watts. The stepless adjustment via the rotary knobs offers a range from 0 to 12 volts.

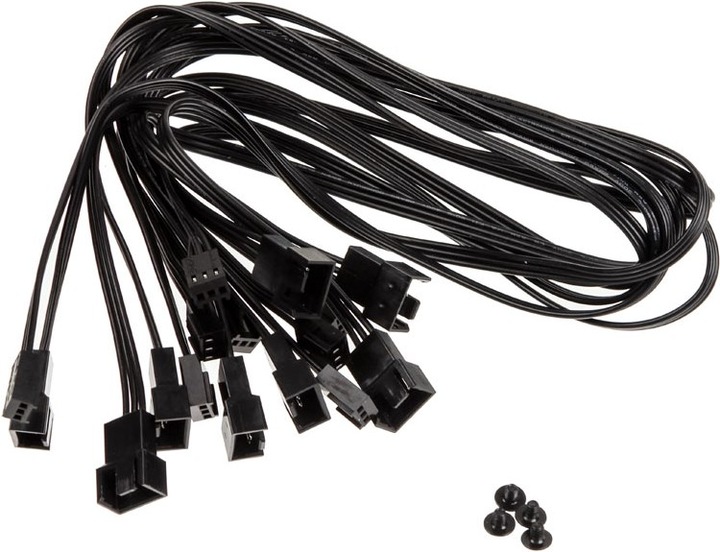

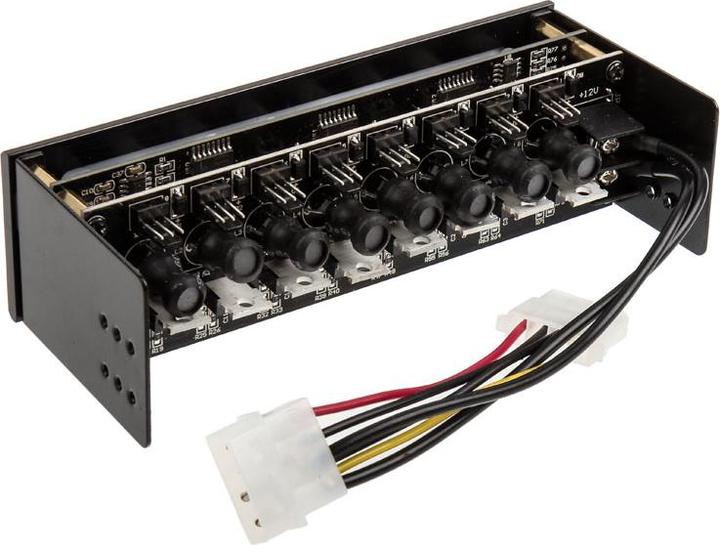

Above each rotary knob is an LED, the color of which (eight colors possible) can be manually set. The controller is connected to the power supply via a 4-pin Molex and is powered through it. The fans are connected via 3-pin connectors. The package also includes eight 3-pin extension cables.

Note 1: The rotary knobs protrude slightly, making installation in cases with a front door usually impossible.

Note 2: Lamptron recommends a power supply with at least 600 watts. All three male connectors of the Molex cable must be connected to the power supply to ensure safe operation!

Technical details:

• Dimensions: 148 x 42.5 x 76 mm (WxHxD)
• Material: Aluminum
• Compatibility: 1x 5.25-inch bay
• Color: Black
• Fan channels: 8 (max. 30 W per channel)
• Voltage: stepless 0 - 12 V
• LEDs: 8x
• Connections:
• 1x 4-pin Molex
• 8x 3-pin.
