Lamptron CFP30 fan and RGB LED controller for PCI slot - black

3 Fan
Ratings
Delivered between Fri, 18.7. and Fri, 25.7.
9 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Lamptron is known for its hardware products, which primarily focus on water cooling, fans, and modding. With the CFP30, a fan controller is introduced that allows users to easily control and manage installed fans.

The CFP30 fan controller offers a high performance of 30 watts per channel. With a total of four channels, this results in a total power output of 120 watts. Thus, the CFP30 provides ample power for a system's fans. It can be said that with the CFP30, only one controller is needed in the system, regardless of the number of cooling solutions one wishes to use. The fan speed can be adjusted continuously between 2 to 12 volts, and complete shutdown is also possible. A total of three 3-pin fans can be connected.

In addition to powering the fans, their digital RGB LED lighting can also be connected. Each fan has a 3-pin connector available (5VDG, 5 V). There are also two additional identical connectors for digital RGB LED strips. The lighting is controlled via an included infrared remote control.

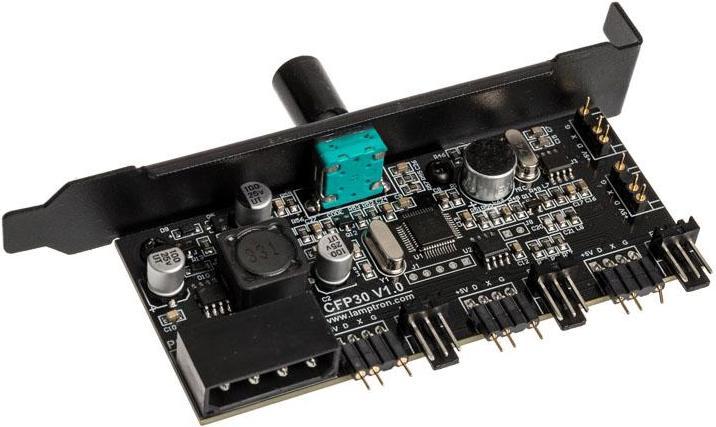

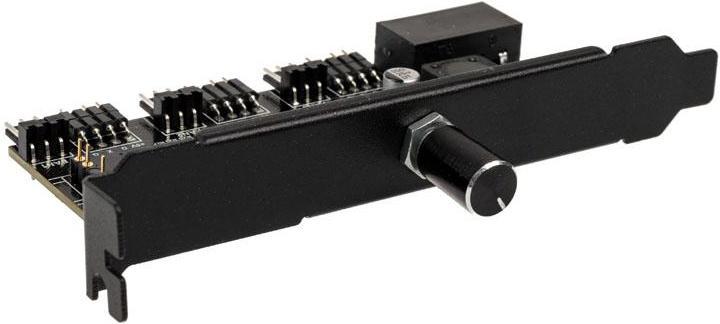

The fan controller is mounted in one of the PCI slots of the case and features a black anodized aluminum faceplate. Power is supplied via a 4-pin Molex connector for direct connection to the power supply.

Technical details:

  • Compatibility: 1x PCI bracket
  • Dimensions: 148.5 x 42.5 x 65 mm (W x H x D)
  • Material: Aluminum
  • Color: Black
  • Fan channels: 3 x 3-pin (max. 30 W per channel)
  • Voltage: continuously adjustable 2 - 12 V
  • RGB LED connectors: 5x 3-pin (5VDG, 5 V)
  • Connections:
  • 1x 4-pin Molex
  • 3x 3-pin (fans)
  • 5x 3-pin (digital RGB LED lighting)
  • 1x infrared remote control.

Key specifications

Control
Manual
Item number
21019963

General information

Manufacturer
Lamptron
Category
Fan controllers
Manufacturer no.
LAMP-CFP30B
Release date
5.5.2021

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Fan control Features

Control
Manual
Number of fans
3 Fan
Number of power levels
3 x
Maximum wattage fan
30 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
65 mm
Width
148.50 mm
Height
42.50 mm
Weight
105 g

Package dimensions

Length
16.30 cm
Width
9.50 cm
Height
3.60 cm
Weight
103 g
