Kunbus Revolution Pi by PR100395 RevPi Connect 4 32 GB 8 GB PLC expansion module

Ratings
Delivered Thu, 5.6.
5 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

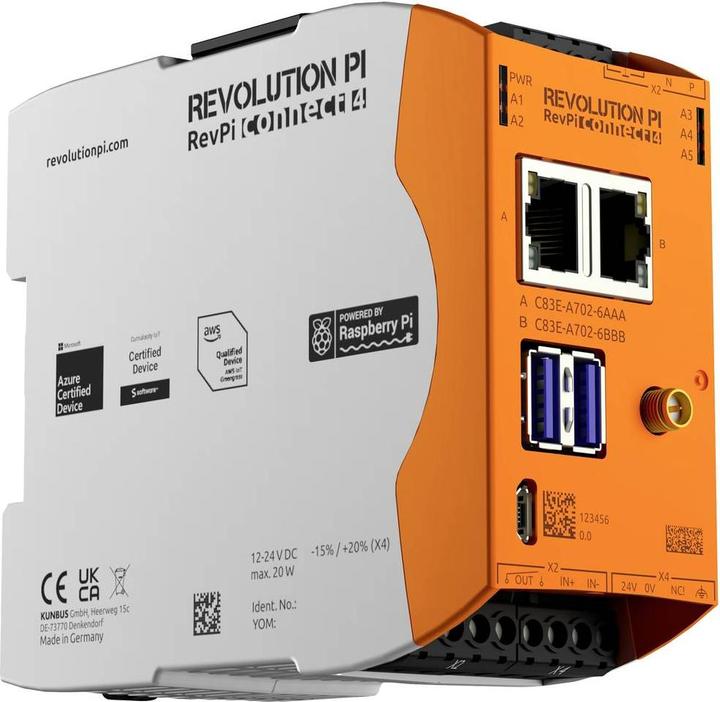

The RevPi Connect 4 (4 GB / 32 GB) is based on the Raspberry Pi Compute Module 4 (CM4) and offers a modular design, industrial suitability, and open-source support. It is powered by a Broadcom BCM2711 processor (64-bit Quad-Core Arm Cortex-A72). This version of the RevPi Connect 4 features 8 GB of RAM, 32 GB of eMMC storage, and supports up to ten I/O modules. The interfaces include two Gigabit Ethernet ports, two USB 3.2 Gen1 ports, RS485, a Micro-HDMI port, and a Micro-USB port. The device includes an integrated real-time clock (RTC) and a hardware watchdog. A HAT EEPROM stores device information. The front panel has six RGB LEDs, five of which are individually programmable. It comes with a pre-installed, customised 64-bit Raspberry Pi OS (including a real-time patch and process image). Modbus RTU and Modbus TCP are supported by default. Additionally, control and HMI software can be installed. The RevPi Connect 4 supports protocols such as MQTT and OPC UA and enables the development of custom applications using Node-RED, Python, and C.

Key specifications

Development board type
Board
Memory
8000 MB
Processor family
Broadcom
Processor type
BCM2711
Number of cores
4
Item number
47462474

General information

Manufacturer
Kunbus
Category
Development boards + Kits
Manufacturer no.
RevPi Connect 4 32 GB 8 GB
Release date
29.7.2024

Target group

Target group
Adults

Development board properties

Development board type
Board
Processor family
Broadcom
Processor type
BCM2711
Memory
8000 MB
Number of cores
4
Flash memory
32000000 kB

Connections

USB ports
Micro USB-B
Exact USB ports
Micro USB-B 2.0 (1x)
Video connections
Micro HDMI (1x)
Number of I/O
10
Additional connections
RJ45

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Hardware watchdog, HAT EEPROM, Integrated real-time clock (RTC), Pre-installed 64-bit Raspberry Pi OS (including real-time patch and process image)

30-day right of return
24 Months Warranty (Bring-in)
